About the product

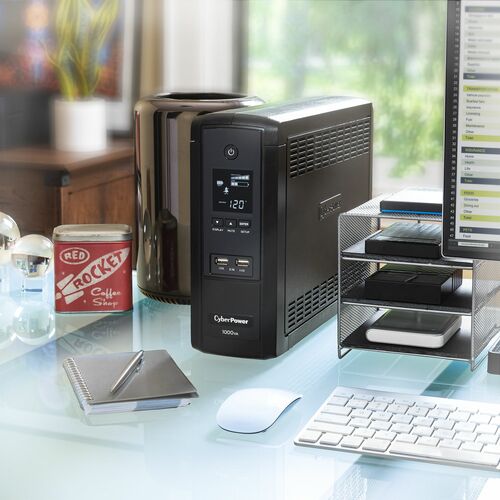

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD Series BRG1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems.
The BRG1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Two USB charge ports power portable devices such as mobile phones and tablets, even during a utility power failure.
The BRG1000AVRLCD comes with a five-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.
- Capacity: 1000 VA / 600 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlet types: 10 × NEMA 5-15R
- USB charge ports: 2 (2.1A shared)
- Communication: USB, Serial
- Data line protection: Ethernet, Coaxial
- Management software: PowerPanel® Personal
Technical Specifications
| Controls/Indicators | |
| Status Indicators |
|
| Management | |
| Alarm | Battery Mode |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 15 lb (6803.89 g) |
| Form Factor | Mini-tower |
| Height | 9.70" (246.38 mm) |
| Width | 3.90" (99.06 mm) |
| Depth | 10.20" (259.08 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | BRG1000AVRLCD |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | BRG1000AVRLCD |
| Product Name | 1000VA BRG1000AVRLCD UPS with 600W, AVR, LCD, and 2.1 USB Charging |
| Product Series | Intelligent LCD UPS |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerPanel Personal Edition Software |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1080 J |
| Waveform Type | Simulated Sine Wave |
| Input Voltage Range | 90 V AC - 148 V AC |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | No |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 1 Minute |
| Battery Characteristics | Maintenance-free |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Technical Information | |
| Dataline Protection | RJ-45 |
| RG-6 | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | USB |
| NEMA 5-15R | |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Transfer Time | 4 ms |
| Receptacle Detail | 2 x USB |
| 10 x NEMA 5-15R |
