About the product

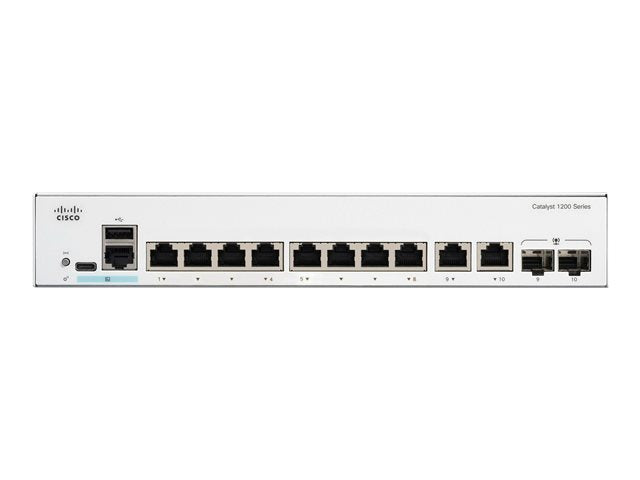

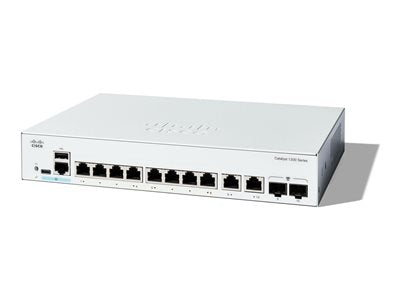

The Cisco Catalyst 1200-8T-E-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security, and reliability with a comprehensive suite of network features you need for a solid small business network.
Technical Specifications
| Primary Information | |
| Product Description: | Cisco Catalyst 1200-8T-E-2G - switch - Gigabit Ethernet - 8 ports - smart - rack-mountable |
| Device Type: | Switch - 8 ports - L3 - smart |
| Enclosure Type: | Rack-mountable |
| Ports: | 8 x 10/100/1000 + 2 x combo Gigabit SFP/RJ-45 |
| Performance: | Forwarding rate (64?byte packets): 14.88 Mpps ¦ Switching capacity: 20 Gbps |
| Capacity: | MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size: | 8000 entries |
| Jumbo Frame Support: | 9000 bytes |
| Routing Protocol: | STP, static IP routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour |
| Remote Management Protocol: | CLI, Telnet, SSH, SSH-2, DHCP, ICMP, RADIUS, Syslog, HTTP, HTTPS, SNMP, SNMP 2c, SNMP 3, RMON, TFTP, SCP |
| Features: | Fanless, QoS, ACL support, EEE, PVST+, Link Aggregation, port grouping, LACP, LAG, VLAN support, Auto Surveillance VLAN, Guest VLAN, port-based VLAN, tag-based VLANs, VLAN management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP snooping, IGMP querier, loopback detection, UDP, BOOTP support, STP loop guard, SCT, SSD, trustworthy systems, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, DoS attack prevention, TCP/UDP proxy, DSCP based CoS, SP, WRR queuing, CoS, ToS, DiffServ support, EQS, ingress rate limiting, TCP congestion, SNTP support, TFTP support, DHCP client, DNS client, SNMP trap, remote firmware upgrade, Cable Diagnostics Function, DHCP server, port mirroring, SCP, VLAN mirroring, Telnet client, cable length detection, chip guard, boot integrity, LLDP, LLDP-MED, CDP, reset button, time-based port operation, IPv4 and IPv6 dual stack, Telnet server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS protection, HoL Blocking Prevention, DHCP relay, RPVST+, MSTP support, layer 3 routing |
| Compliant Standards: | IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at, IEEE 802.3af |
| Power: | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH): | 7.3 in x 10.6 in x 1.7 in |
| Weight: | 3.06 lbs |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Device Type: | Switch - 8 ports - L3 - smart |
| Enclosure Type: | Desktop, rack-mountable |
| Ports: | 8 x 10/100/1000 + 2 x combo Gigabit SFP/RJ-45 |
| Performance: | Forwarding rate (64?byte packets): 14.88 Mpps ¦ Switching capacity: 20 Gbps |
| Capacity: | MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size: | 8000 entries |
| Jumbo Frame Support: | 9000 bytes |
| Routing Protocol: | STP, static IP routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour |
| Remote Management Protocol: | CLI, Telnet, SSH, SSH-2, DHCP, ICMP, RADIUS, Syslog, HTTP, HTTPS, SNMP, SNMP 2c, SNMP 3, RMON, TFTP, SCP |
| Encryption Algorithm: | SSL |
| Authentication Method: | RADIUS |
| Features: | Fanless, QoS, ACL support, EEE, PVST+, Link Aggregation, port grouping, LACP, LAG, VLAN support, Auto Surveillance VLAN, Guest VLAN, port-based VLAN, tag-based VLANs, VLAN management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP snooping, IGMP querier, loopback detection, UDP, BOOTP support, STP loop guard, SCT, SSD, trustworthy systems, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, DoS attack prevention, TCP/UDP proxy, DSCP based CoS, SP, WRR queuing, CoS, ToS, DiffServ support, EQS, ingress rate limiting, TCP congestion, SNTP support, TFTP support, DHCP client, DNS client, SNMP trap, remote firmware upgrade, Cable Diagnostics Function, DHCP server, port mirroring, SCP, VLAN mirroring, Telnet client, cable length detection, chip guard, boot integrity, LLDP, LLDP-MED, CDP, reset button, time-based port operation, IPv4 and IPv6 dual stack, Telnet server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS protection, HoL Blocking Prevention, DHCP relay, RPVST+, MSTP support, layer 3 routing |
| Compliant Standards: | IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at, IEEE 802.3af |
| Processor: | X ARM: 1.4 GHz |
| RAM: | 1 GB DDR4 SDRAM |
| Flash Memory: | 512 MB |
| Status Indicators: | System, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces: | 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 10/100/1000 Base-T RJ-45/SFP ¦ 1 x console RJ-45 ¦ 1 x USB-C management |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | |
| Included Accessories: | Pointer card |
| MTBF: | 2,171,669 hours |
| Compliant Standards: | Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE |
| Dimensions & Weight | |
| Width: | 7.3 in |
| Depth: | 10.6 in |
| Height: | 1.7 in |
| Weight: | 3.06 lbs |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime - response time: next business day ¦ Technical support - return to factory - 1 year |
