About the product

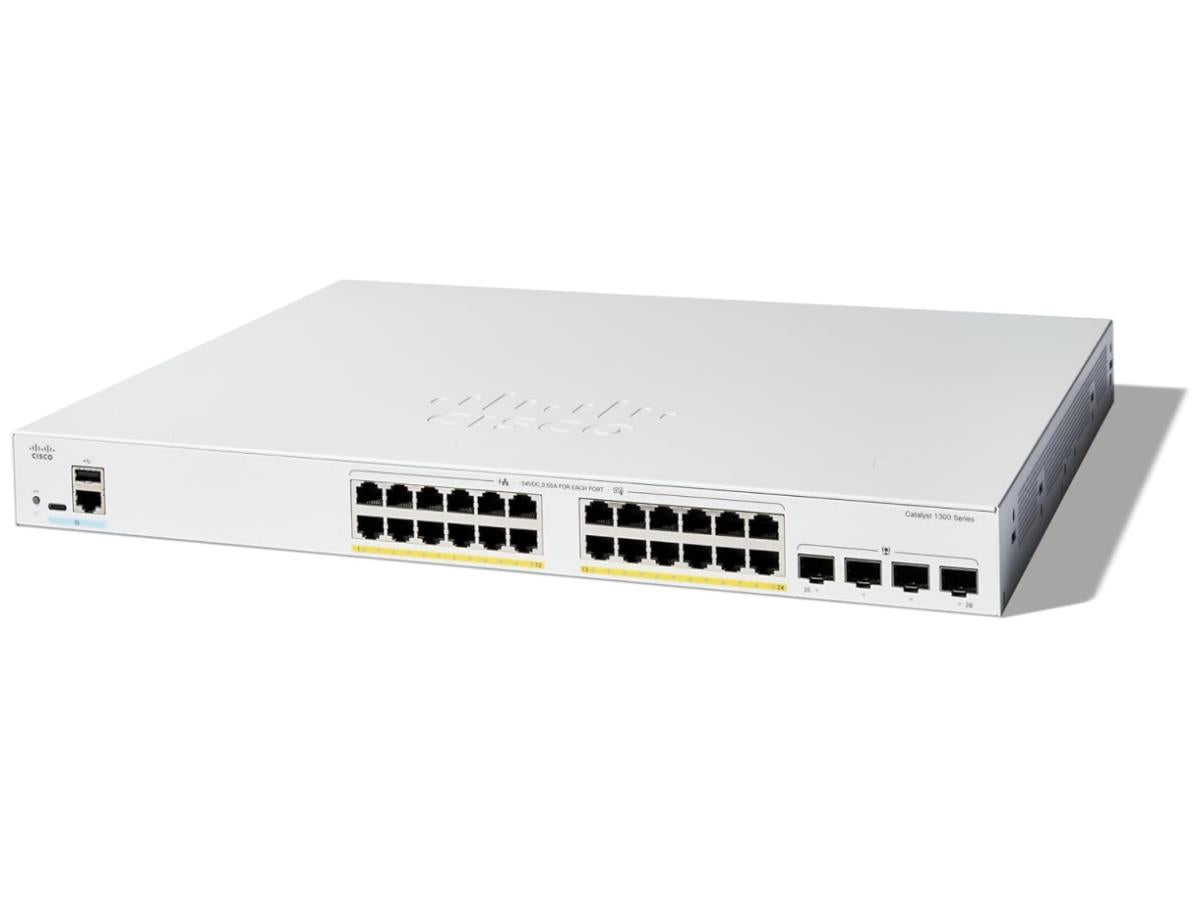

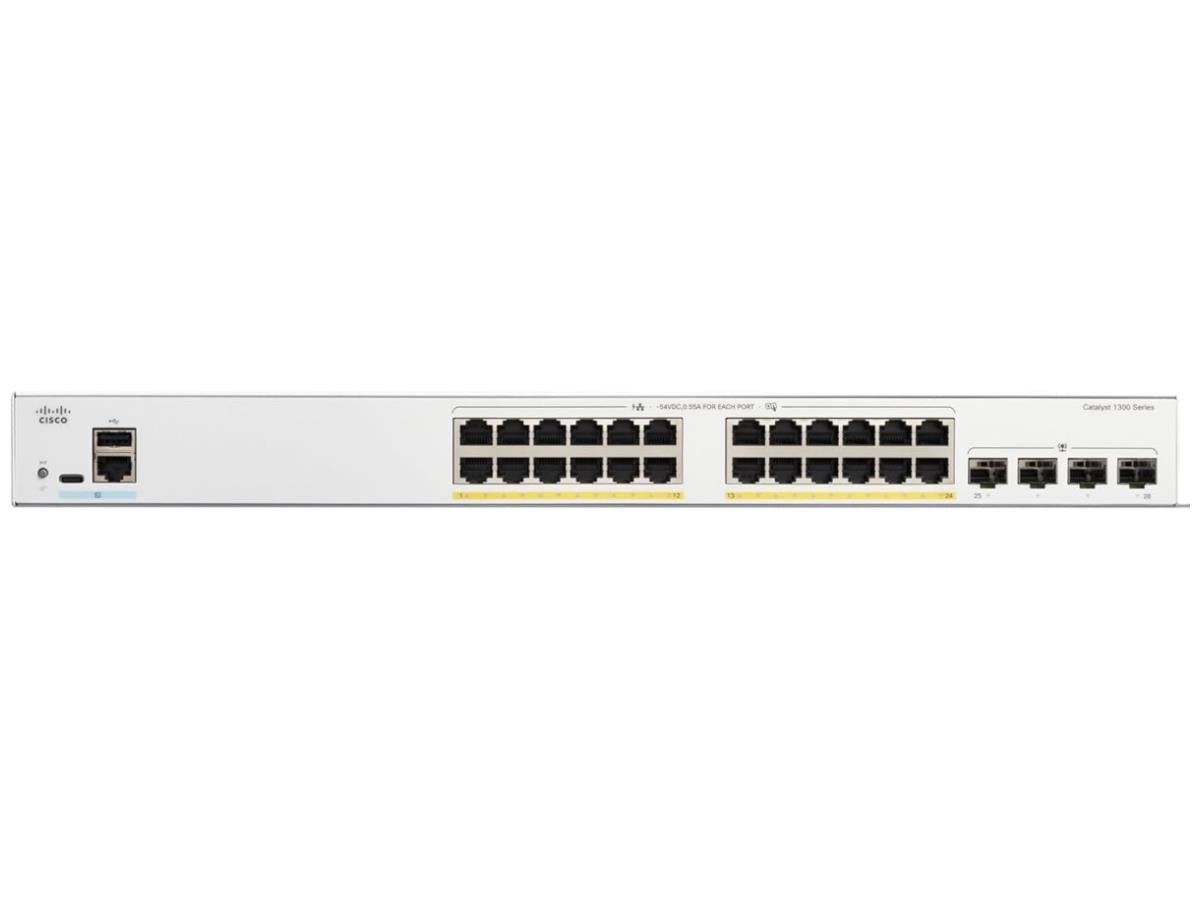

The Cisco Catalyst 1300 Series Switches are affordable, simple-to-use switches designed and built for enterprise branch offices as well as SMB networks. Managed through the Cisco Business Dashboard and Cisco Business mobile app, the switch portfolio provides a simple and reliable experience
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | C1300-24FP-4G |
| Connectivity Technology: | Wired |
| Status Indicators: | LED Indicators |
| Processor / Type: | ARM |
| RAM / Total Installed Size: | 1 GB |
| Flash Memory / Installed Size: | 512 MB |
| Networking Compliant Standards: | IEEE 802.3az ,IEEE 802.1ad ,IEEE 802.1X,IEEE 802.3af/at |
| Media Layer Supported: | Layer 2 and Layer 3 |
| Power / Device Type: | Power Supply |
| Power / Voltage Required: | 100-240V 50-60 Hz |
| MTBF: | 500161 hours |
| Features: | Ease of management and deployment;High reliability and resiliency;Strong security;IPv6 support;Advanced Layer 3 traffic management;Front Panel Stacking;Compact design;Peace of mind and investment protection |
| Network | |
| Power Over Ethernet (PoE) Support: | YES |
| PoE Power Consumption: | 370W |
| MAC Address Table Size: | 16000 |
| Jumbo Frame Support: | Up to 9000 bytes |
| Remote Management Protocol: | SSH; DHCP; HTTPS; TFTP; HTTP; RMON; SNMP |
| Routing Protocol: | IPv4 ,IPv6,CIDR, RIP |
| Encryption Algorithm: | SSL |
| Authentication Method: | RADIUS/TACACS+ |
| 10/100/1000BASE-T Ports: | 24 |
| SFP Ports: | 4 |
| Interfaces: | 24x 10/100/1000 PoE+ ports with 370W power budget, 4x Gigabit SFP, RJ-45 console, USB Type C port |
| Interfaces / Ports | |
| Interfaces: | 24x 10/100/1000 PoE+ ports with 370W power budget, 4x Gigabit SFP, RJ-45 console, USB Type C port |
| 10/100/1000BASE-T Ports: | 24 |
| SFP Ports: | 4 |
| Dimensions&Miscellaneous | |
| Width: | 17.49 Inch |
| Depth: | 13.77 Inch |
| Height: | 1.73 Inch |
| Weight: | 4.6 Kg |
| Service&Support | |
| Service & Support Type: | Limited lifetime with return-to-factory replacement |
| Special Feature | |
| Min Operating Temperature: | -5 Celsius |
| Max Operating Temperature: | 50 Celsius |
| Min Storage Temperature: | -25 Celsius |
| Max Storage Temperature: | 70 Celsius |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
