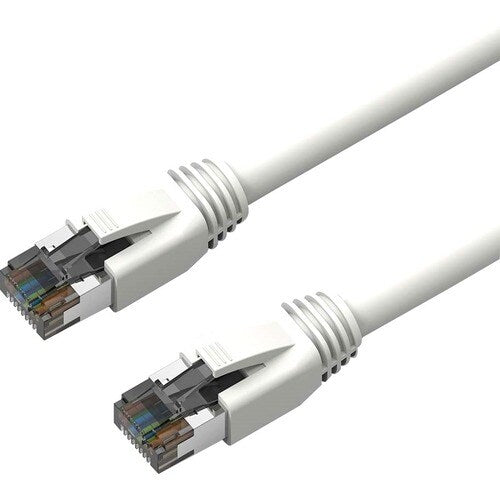

5FT CAT8 2000MHZ S/FTP SHIELDED PATCH CABLE

Name: 5FT CAT8 2000MHZ S/FTP SHIELDED PATCH CABLE
Brand: Axiom Memory
SKU: RSC474441
Price: 27.68 CAD
Availability: InStock

$27.68 CAD

~~$31.01 CAD~~ $27.68 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Axiom 5FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (White) - 5 ft Category 8 Network Cable for Network Device - First End: RJ-45 Network - Male - Second End: RJ-45 Network - Male - 40 Gbit/s - Patch Cable - Shielding - Gold, Nickel Plated Contact - White

VPN:C8SBSFTP-W5-AX SKU:RSC474441 UPC:841280198847

Features Category 8 cable type

Fully compatible with network devices

This Network Cable provides splendid performance and clear connectivity

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

5FT CAT8 2000MHZ S/FTP SHIELDED PATCH CABLE

About the product

Axiom's CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors

Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)

Shielding: Each pair Foil shielded / 4 Pair Braid Shield

Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding

Provides EMI/RFI shielding in Ethernet networks

Wiring: T568B standard

Jacket: PVC

Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant

Snagless Rubber Boots with Strain Relief

Max Bandwidth: Up to 2,000 MHz (2GHz)

Max data rate: Up to 40Gps

Min Avg. jacket Thickness: 0.60 +/- 0.1mm

Backward Compatible with all categories Cat5E, Cat6, Cat6A, Cat7 Networks

Available in all lengths from 6-Inch to 50ft

Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow

Features Category 8 cable type
Fully compatible with network devices
This Network Cable provides splendid performance and clear connectivity

Technical Specifications

Miscellaneous
Environmentally Friendly	Yes
Physical Characteristics
Shielding Material	Foil
Product Color	White
Product Material	Copper
Connector Material	Polyvinyl Chloride (PVC)
General Information
Product Type	Network Cable
Manufacturer Part Number	C8SBSFTP-W5-AX
Manufacturer Website Address	http://search.axiomupgrades.com
Manufacturer	Axiom Memory Solutions
Product Name	5FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (White)
Brand Name	Axiom
Technical Information
Cable Length	5 ft
Data Transfer Rate	40 Gbit/s
Device Supported	Network Device
Shielding	Yes
Features	Double Shielded
	EMI/RF Protection
	Strain Relief
Cable Characteristic	Patch Cable
Cable Type	Category 8
Connector Type on First End	RJ-45 Network - Male
Connector Type on Second End	RJ-45 Network - Male
Contact Plating	Nickel
	Gold
Connector on First End Details	RJ-45 Network - Male
Connector on Second End Details	RJ-45 Network - Male
Boot Type	Snagless
