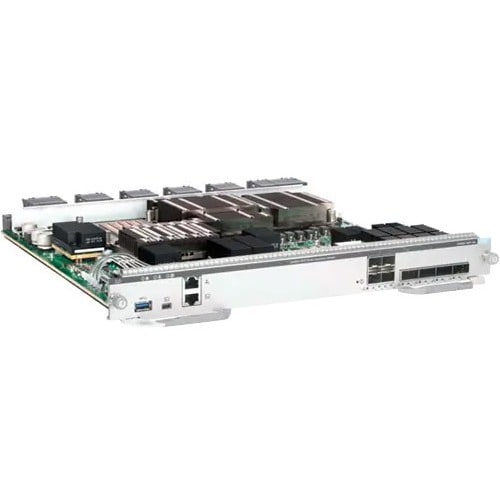

CATALYST 9400 SERIES SUPERVISOR 2XL MODULE

Name: CATALYST 9400 SERIES SUPERVISOR 2XL MODULE
Brand: Cisco
SKU: 537242NDN
Price: 38401.36 CAD
Availability: OutOfStock

$38,401.36 CAD

~~$43,009.52 CAD~~ $38,401.36 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Cisco Catalyst 9400 Series Supervisor 2XL Module - For Data Networking, Optical Network - 1 x Console - RJ-45 LAN, 1 x 1000Base-T (management) - RJ-45 LAN, 1 x USB 3.0 - Type A, 1 x management (mini-USB) - Type B, 4 x 40Gb Ethernet/100Gb Ethernet - SFP+ Network, 4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - QSFP Network - Optical FiberGigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet - Gigabit Ethernet, 10GBase-X, 25GBase-X, 40GBase

VPN:C9400X-SUP-2XL SKU:537242NDN UPC:

Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

CATALYST 9400 SERIES SUPERVISOR 2XL MODULE

About the product

Cisco Catalyst 9400 Series switches support five supervisors optimized for various campus deployments- access and aggregation. Along with Cisco's campus-optimized 100G and 25G optics, these modular platforms are now capable of supporting architectural transformations with industry-leading investment protection.

The Cisco Catalyst C9400X-SUP-2XL supervisor engine is designed for the core and aggregation with 100G uplinks

Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
With Gigabit Ethernet technology, enjoy up to 40Gbps data transfer rate over supported network cable

Technical Specifications

Miscellaneous
Compatibility	Cisco Catalyst 9400 Series Switches: C9404R C9404R= C9404R-10A C9404R-1A C9404R-48U-BDL-EDU C9404R-48U-BNDL-1A C9404R-48U-BNDL-1E C9404R-48U-BNDL-A C9404R-48U-BNDL-E C9404R-RF C9404R-WS C9407R C9407R= C9407R-10A C9407R-1A C9407R-96U-BDL-EDU C9407R-96U-BNDL-1A C9407R-96U-BNDL-1E C9407R-96U-BNDL-A C9407R-96U-BNDL-E C9407R-96U-STK-EDU C9407R-P C9407R-RF C9407R-WS C9410R C9410R= C9410R-1A C9410R-96U-BDL-EDU C9410R-96U-BNDL-1A C9410R-96U-BNDL-1E C9410R-96U-BNDL-A C9410R-96U-BNDL-E C9410R-P C9410R-RF C9410R-WS
Environmental Conditions
Minimum Operating Temperature	23°F (-5°C)
Maximum Operating Temperature	113°F (45°C)
Technical Information
Application/Usage	Optical Network
	Data Networking
Physical Characteristics
Weight (Approximate)	5.20 kg
Form Factor	Plug-in Module
Height	1.60" (40.64 mm)
Width	14.90" (378.46 mm)
Depth	14.60" (370.84 mm)
General Information
Product Type	Supervisor Engine
Manufacturer Part Number	C9400X-SUP-2XL
Manufacturer Website Address	http://www.cisco.com
Manufacturer	Cisco Systems, Inc
Product Name	Catalyst 9400 Series Supervisor 2XL Module
Brand Name	Cisco
Interfaces/Ports
Interfaces/Ports Details	4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - QSFP Network
	4 x 40Gb Ethernet/100Gb Ethernet - SFP+ Network
	1 x 1000Base-T (management) - RJ-45 LAN
	1 x Console - RJ-45 LAN
	1 x management (mini-USB) - Type B
	1 x USB 3.0 - Type A
Connector Type	RJ-45
Total Number of Ports	10
Media & Performance
Network Technology	25GBase-X
	10GBase-X
	40GBase-X
	100GBase-X
	Gigabit Ethernet
Ethernet Technology	10 Gigabit Ethernet
	100 Gigabit Ethernet
	25 Gigabit Ethernet
	40 Gigabit Ethernet
	Gigabit Ethernet
Media Type Supported	Optical Fiber
