About the product
Built for Security, IoT, and Cloud

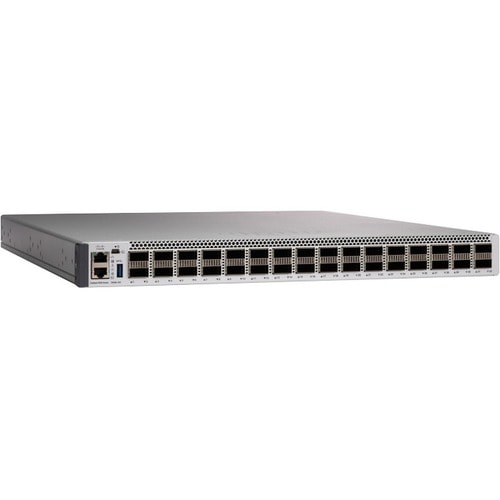

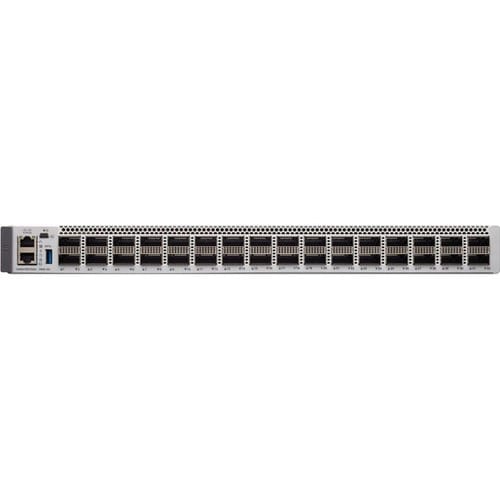

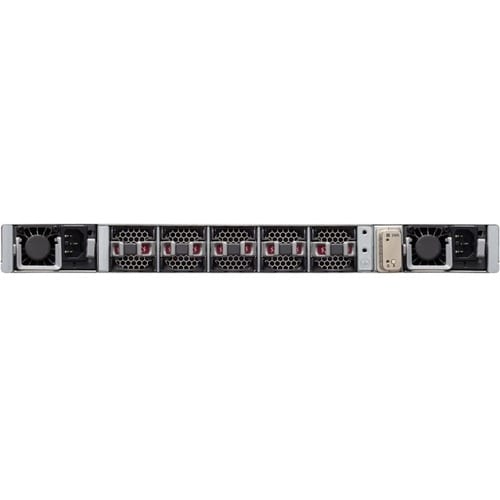

The Cisco® Catalyst® 9500 Series switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| Total Number of Expansion Slots | 32 |
| Interfaces/Ports | |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 32 x 100 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Network Technology | 100GBase-X |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Weight (Approximate) | 25.64 lb (11630.11 g) |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 21.20" (538.48 mm) |
| Compatible Rack Unit | 1U |
| Power Description | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Plug/Connector Type | IEC 60320 C16 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Redundant Power Supply Supported | Yes |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | C9500-32C-E |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | C9500-32C |
| Product Name | Catalyst C9500-32C Layer 3 Switch |
| Product Line | Catalyst |
| Product Series | 9500 |
| Brand Name | Cisco |
