About the product

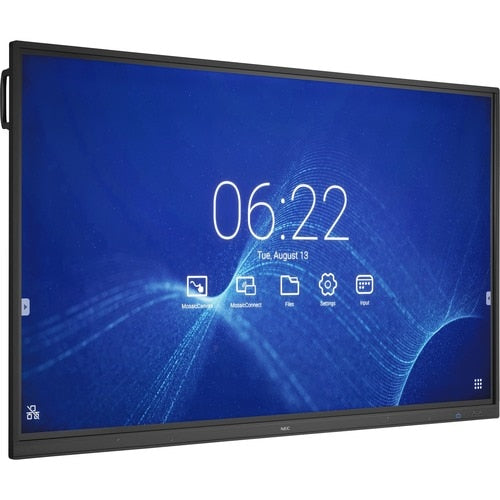

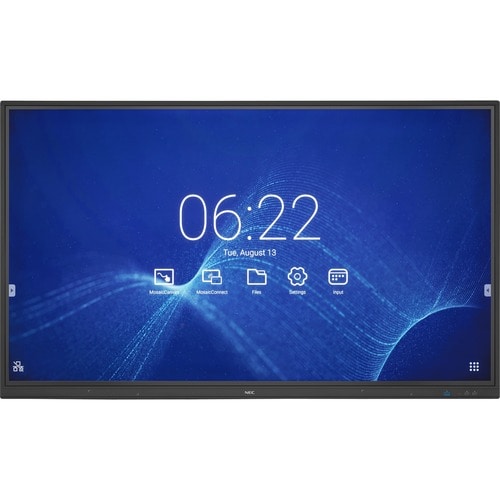

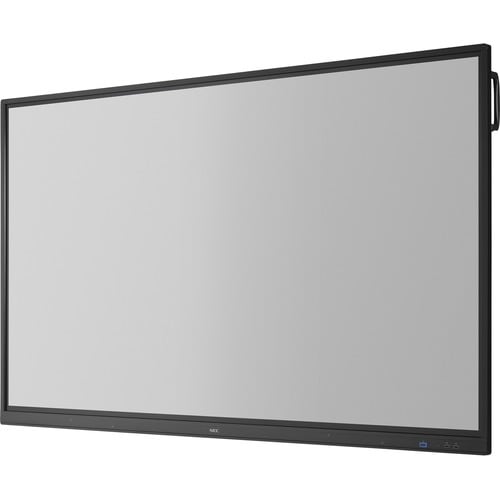

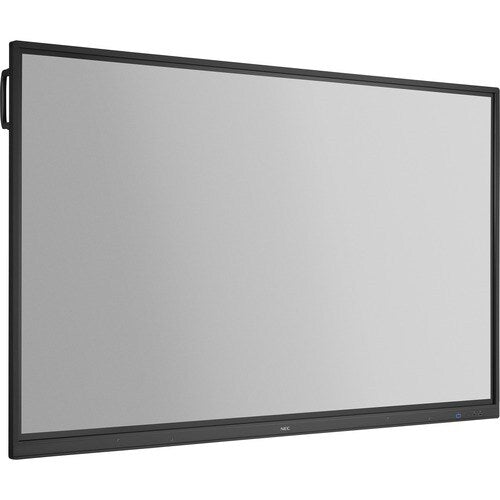

With industry leading experience in superior design and customer focus, the 86" NEC CB861Q allows for all in one collaborative experience. New contemporary and slim mechanical design with a built in SoC preloaded with Mosaic whiteboarding and wireless presenting software. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 USB2.0 x2, and VGA inputs, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Open Pluggable Specification (OPS). The CB861Q boasts a 350 cd/m² brightness along with a new anti-glare surface that allows for efficient readability.
- 86" UHD collaborative display
- Integrated 10pt IR touch with built in Linux based 8.0 SoC

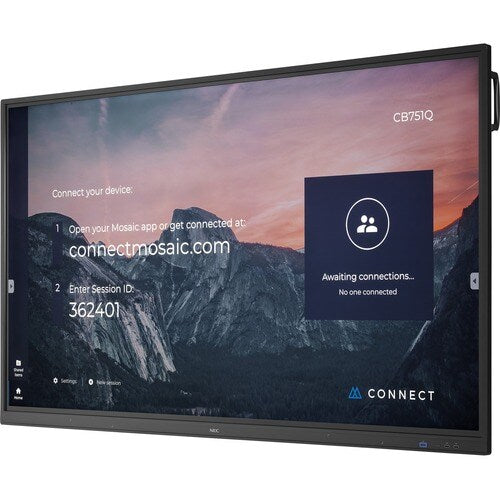

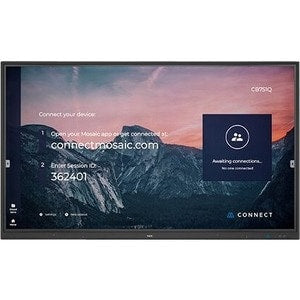

- Mosaic wireless presentation software

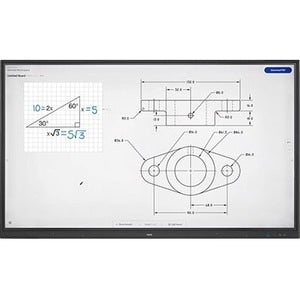

- Mosaic Canvas interactive whiteboard software
- Browser
- Annotation tools
- OPS slot

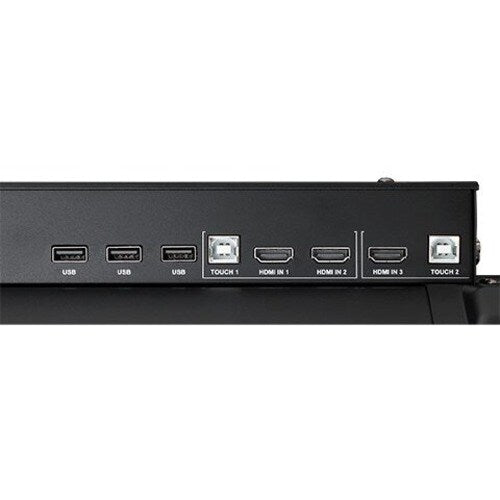

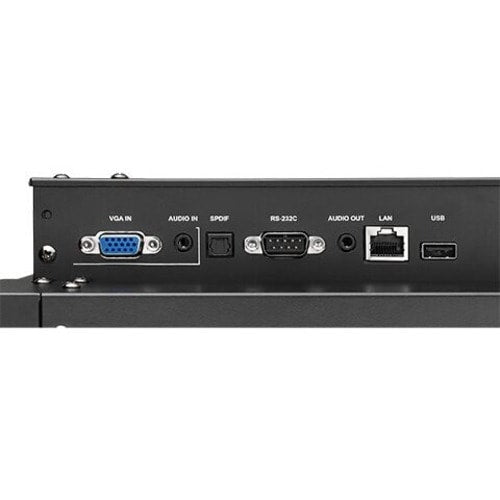

- 3x HDMI 2.0, VGA, LAN, 6x USB, RS-232
- 350cd/m^2 MAX
- 3yr warranty

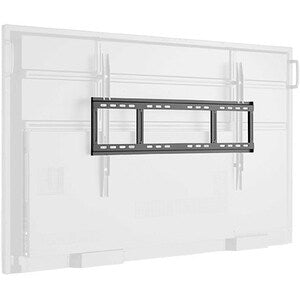

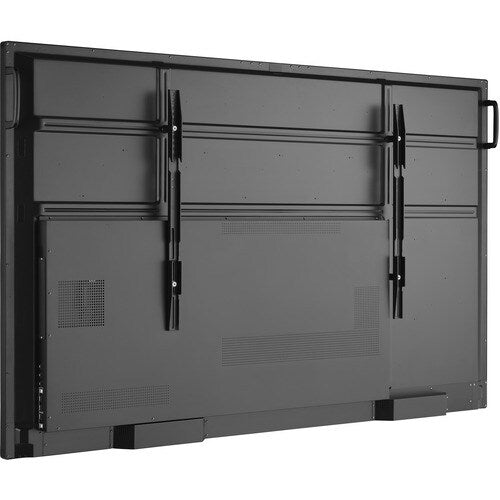

- Wall mount included
Technical Specifications
| Software | |
| Software Included | Wireless presentation and whiteboarding software |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Power Description | |
| Input Voltage | 120 V AC |
| Power Consumption | 620 W |
| Touchscreen Information | |
| Touchscreen | Yes |
| Touchscreen Technology | Infrared (IrDA) |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| RMS Output Power | 24 W |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 142.40 lb (64590 g) |
| Height | 45.70" (1160.78 mm) |
| Width | 77" (1955.80 mm) |
| Depth | 3.40" (86.36 mm) |

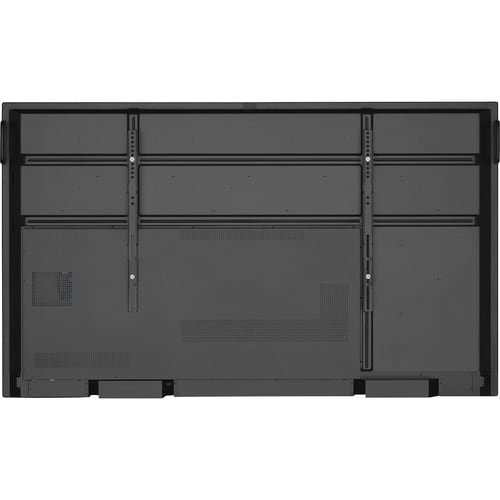

| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 600 |
| General Information | |
| Product Type | Collaboration Display |
| Manufacturer Part Number | CB861Q |
| Manufacturer Website Address | http://www.sharp-nec-displays.com/ |
| Manufacturer | Sharp |
| Product Model | CB861Q |
| Product Name | 86" UHD Collaborative Board |
| Brand Name | NEC Display |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Number of HDMI Inputs | 3 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 6 |
| Serial | Yes |
| Number of VGA Ports | 1 |
| Display & Graphics | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,200:1 |
| Response Time | 9 ms |
| Screen Resolution | 3840 x 2160 |
| Brightness | 350 cd/m² |
| Color Supported | 1.07 Billion Colors |
| Screen Size | 86" (2184.40 mm) |
| Screen Mode | 4K UHD |
| HDCP Supported | Yes |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Scan Format | 2160p |
| Display Screen Type | LCD |
| Display Screen Technology | Super In-plane Switching (S-IPS) Technology |
| Backlight Technology | Direct LED |
| Display Orientation | Landscape |
