About the product

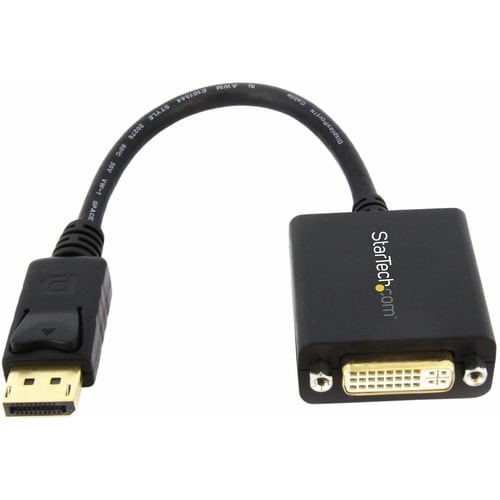

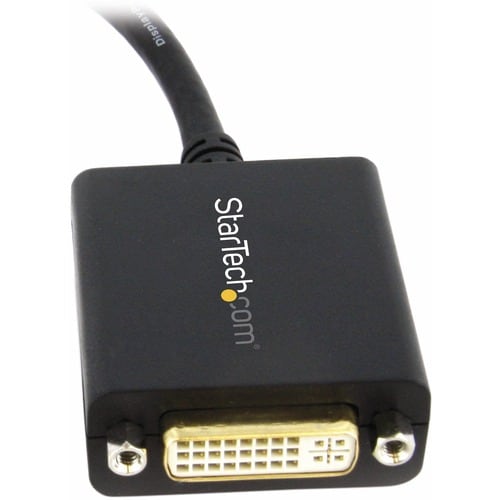

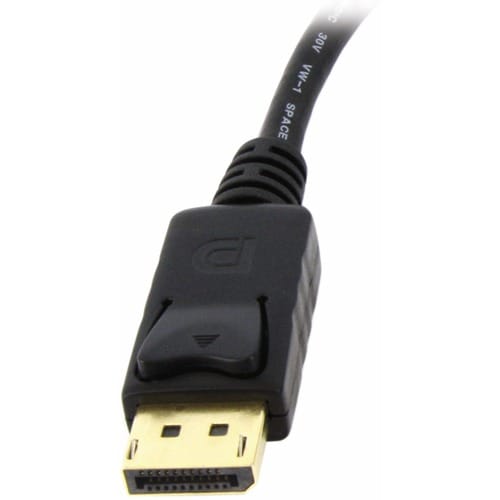

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.
Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector | 1920x1200/1080p 60Hz; HDCP 1.4 | 6" (15cm) attached cable | DisplayPort Certified
- COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter | Tested w/ DVI cables up to 25ft | EDID & DDC pass-through ensure compatibility between source & display
- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection | Compact design
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS | DisplayPort male to DVI female adapter dongle | Connector is DVI-I, however only a digital signal (DVI-D) passes through
Technical Specifications
| Physical Characteristics | |
| Weight (Approximate) | 1.50 oz (42.52 g) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Video Adapter |
| Manufacturer Part Number | DP2DVI2 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | DisplayPort to DVI Video Adapter Converter |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 6" (152.40 mm) |
| Features | HDCP 1.4 |
| Extended Display Identification Data (EDID) | |
| Latching Connector | |
| Passive | |
| Screw Lock | |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DVI Digital Video - Female |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 29-pin DVI Digital Video - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
