About the product

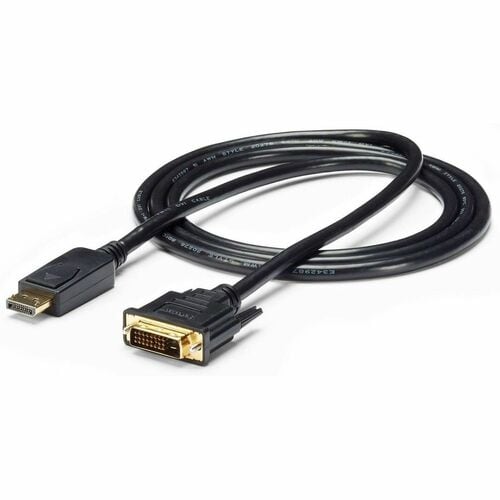

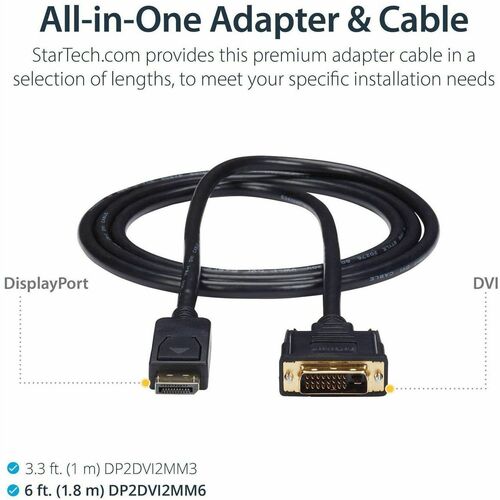

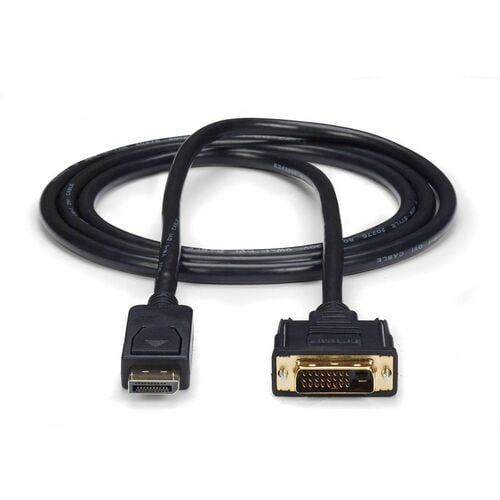

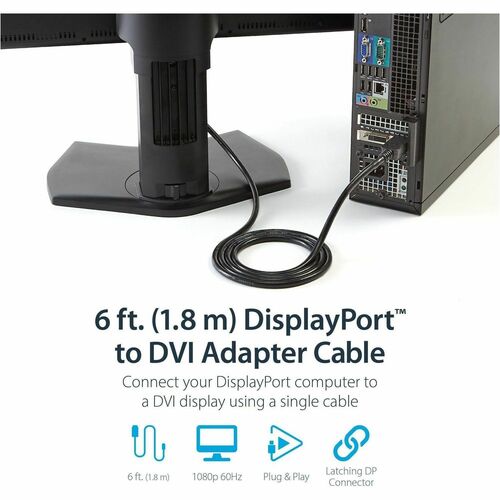

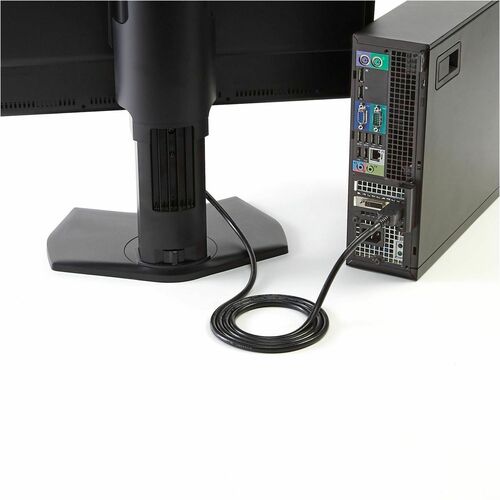

The DP2DVI2MM6 6 ft DisplayPort® to DVI Adapter Cable lets you connect a DVI Display or Projector to a DisplayPort video card/source. Providing a connection distance of 6ft, the cable features male DVI and DisplayPort connectors, allowing you to make a direct video card-to-display connection, as opposed to having to use an adapter with a separate cable.

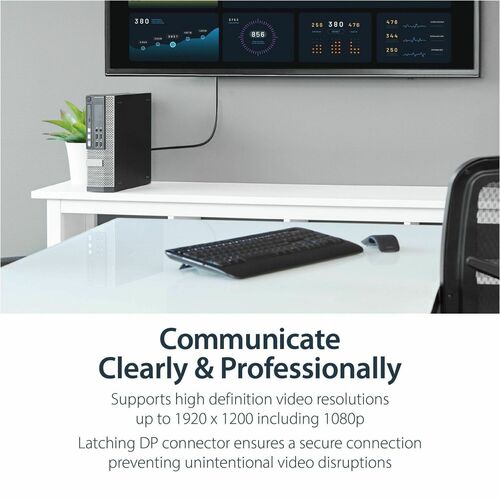

The DP to DVI cable is a convenient, cost-effective solution for taking full advantage of your DVI display, without the expense of upgrading to a DisplayPort monitor. The cable offers high quality construction and supports high bandwidth video resolutions up to 1920x1200 or HDTV resolutions up to 1080p.
DP2DVI2MM6 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port. Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
- DISPLAYPORT TO DVI CABLE: 6ft (1.8m) DisplayPort 1.2 (HBR2) to DVI-D single-link cable connects a DVI display, monitor or projector, 1920x1200/1080p 60Hz or 4K 30Hz (HDMI clock rate); HDCP 1.4, EDID ensures compatibility between source & display
- COMPATIBILITY: Passive video converter supports DP++ sources including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations

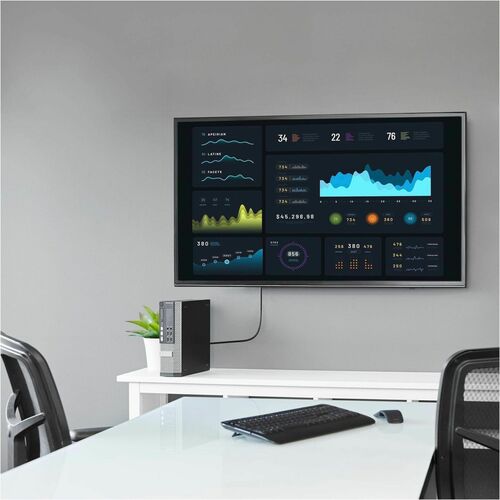

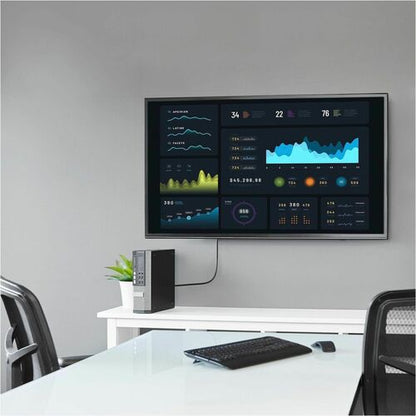

- INTEGRATED DISPLAY CABLE: DisplayPort to DVI adapter cable has slim & flexible design w/ adapter chip built into DVI connector reducing clutter & providing a tidy install in the office, boardroom or home office
- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector & gold plated DVI connector ensure solid connection; Chip built into DVI connector minimizes signal loss | Supports DVI screw locking cable to prevent cable accidental disconnection

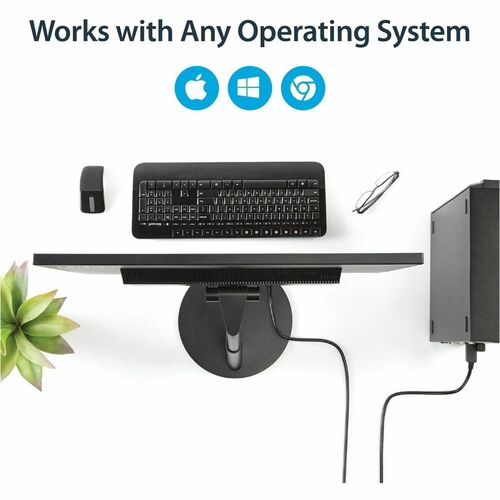

- EASY TO USE: With no software or drivers required, the DP to DVI cable/cord works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI male cable; A direct replacement for DP2DVIMM6
Technical Specifications
| Physical Characteristics | |
| Weight (Approximate) | 5.04 oz (143 g) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Video Cable Adapter |
| Manufacturer Part Number | DP2DVI2MM6 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 6 ft DisplayPort to DVI Cable - M/M |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 6 ft (1.83 m) |
| Conductor | Copper |
| Device Supported | Workstation |
| Video Device | |
| Projector | |
| Notebook | |
| HDTV | |
| Monitor | |
| Docking Station | |
| Desktop Computer | |
| Features | Flexible |
| Screw Lock | |
| Extended Display Identification Data (EDID) | |
| Passive | |
| Latching Connector | |
| HDCP 1.4 | |
| Cable Type | DisplayPort/DVI |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DVI-D Digital Video - Male |
| Connector Plating | Gold |
| Supported Resolution | 1920 x 1200 |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 25-pin DVI-D Digital Video - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
