About the product
This DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI® or dual-link DVI.
The DP cable supports high resolutions of up to 4K x 2K (4096 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors.
The 10-foot cable is DisplayPort (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices.
The DISPLPORT10L is backed by a StarTech.com lifetime warranty for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
More from the Manufacturer
- HIGH PERFORMANCE CABLE: This 10ft (3m) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

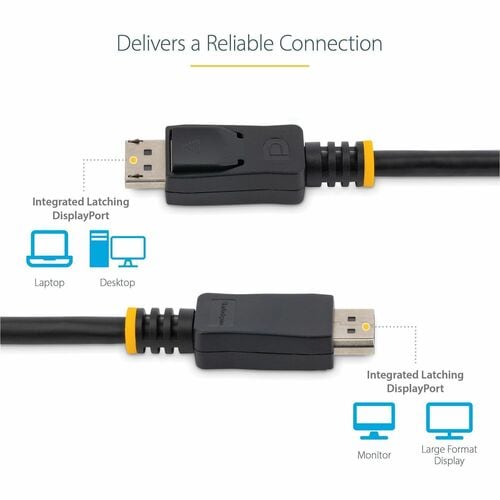

- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- SPECS: 10 ft (3 m) | Black | DisplayPort v1.2 | DP Latching Male to Male | 28 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: HBR 2, MST, GTC | Lifetime Warranty

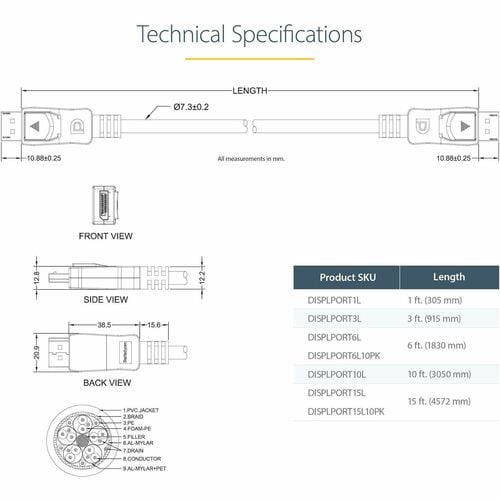

Technical Specifications
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 7.41 oz (210 g) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shielding Material | Aluminum Mylar Foil |
| Product Color | Black |
| Color Family | Black |
| Connector Material | ABS |
| General Information | |
| Product Type | Video Cable |
| Manufacturer Part Number | DISPLPORT10L |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 10 ft Certified DisplayPort 1.2 Cable with Latches M/M - DisplayPort 4k |
| Brand Name | StarTech.com |
| Packing | Bagged |
| Technical Information | |
| Cable Length | 10 ft (3.05 m) |
| Conductor | Copper |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | Projector |
| Notebook | |
| Monitor | |
| Audio/Video Device | |
| Workstation | |
| Jacket Type | CMG |
| Shielding | Yes |
| Features | Multi-Stream Transport (MST) Support |
| HDCP | |
| Fray Resistant | |
| EMI Protection | |
| DPCP | |
| Molded | |
| Latching Connector | |
| Strain Relief | |
| Damage Resistant | |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Gold |
| American Wire Gauge | 28 AWG |
| Supported Resolution | 4096 x 2160 |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
