About the product

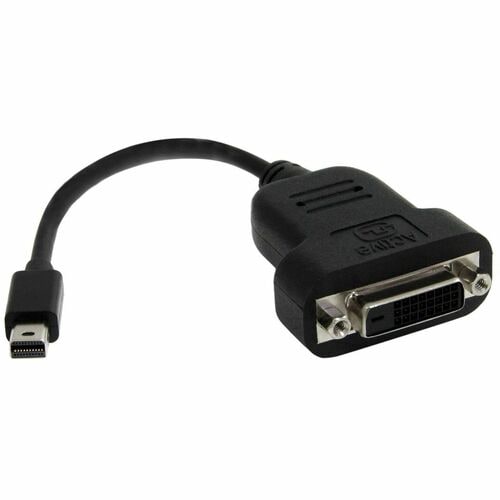

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
- ACTIVE MINI DISPLAYPORT TO DVI ADAPTER: Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link adapter connects a DVI display/projector supporting 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Active video converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle | Compact design | 5.7" (15cm) attached cable | Supports Apple Cinema Display HD
- SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors | Tested with DVI cables up to 25ft | mDP male to DVI female connector
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Technical Specifications
| Physical Characteristics | |
| Weight (Approximate) | 1.34 oz (38 g) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Video Adapter |
| Manufacturer Part Number | MDP2DVIS |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | MDP2DVIS |
| Product Name | Mini DisplayPort to DVI Active Adapter |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 4.7" (120 mm) |
| Features | HDCP 1.3 |
| Halogen Free | |
| Extended Display Identification Data (EDID) | |
| Active | |

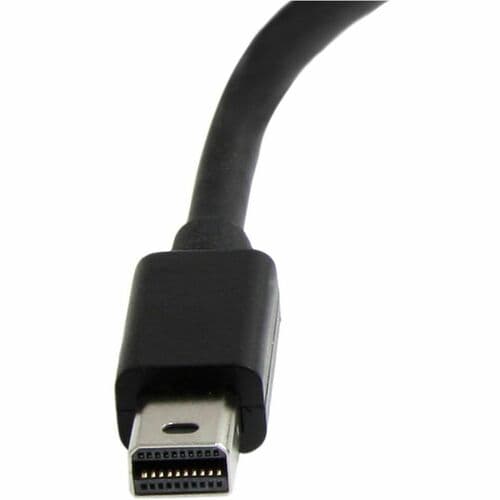

| Connector Type on First End | Mini DisplayPort 1.1 Digital Audio/Video - Male |
| Connector Type on Second End | DVI-D Digital Video - Female |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort 1.1 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 25-pin DVI-D Digital Video - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
