About the product

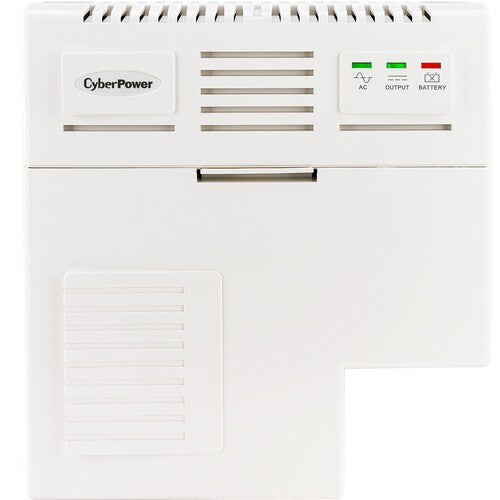

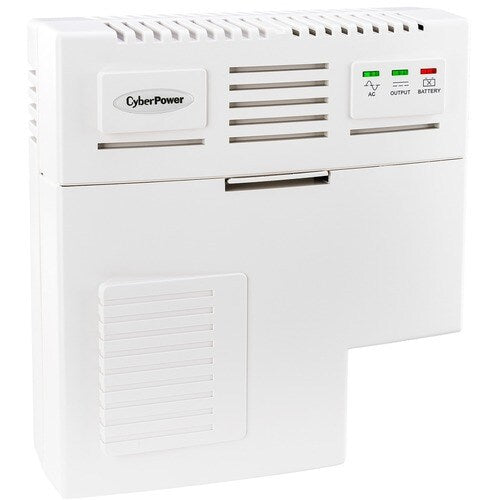

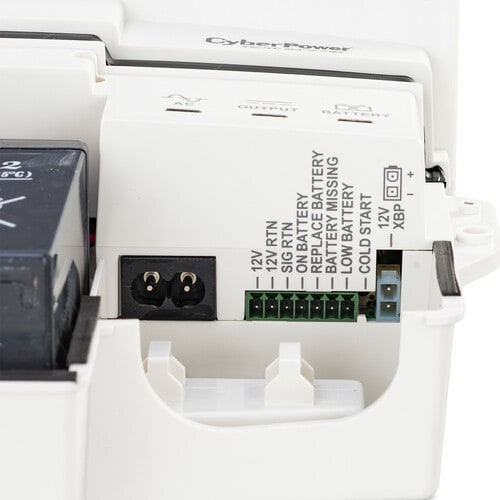

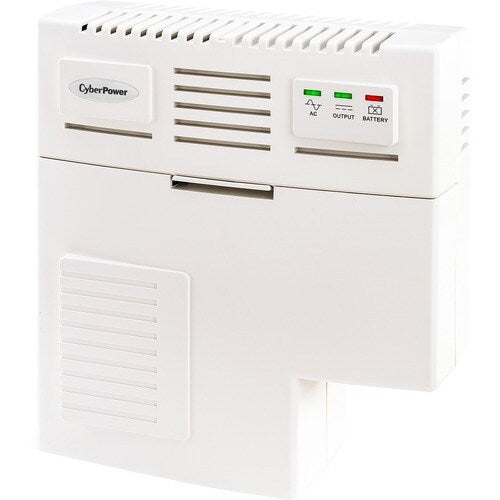

Designed for interior use, CBN50U48A-1 Indoor CyberShield™ FTTx System supplies continuous 48 VDC to local power network interface devices (NID), cable telephone modems, wireless base stations, fiber to the home (FTTH), optical network terminals (ONT), and integrated access devices. Features of the CBN50U48A-1 include high-function design, cold start functionality, audible alarm signals with silence options, microprocessor intelligent control, a telemetry interface, optional extendable runtime, user-replaceable batteries, and LED indicators. It also comes with a three-year warranty.
- Input voltage range: 90-264 VAC
- On battery output voltage: 48 VDC
- Rated power: 50W
- Battery: 12V/20Ah
- Intelligent control: Yes
- Telemetry interface: Yes
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Management | |
| Alarm | Battery Mode |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards | Safety:
|
| Country of Origin | Philippines |
| Physical Characteristics | |
| Weight (Approximate) | 17 lb (7711.07 g) |
| Form Factor | Tower |
| Height | 11.81" (299.97 mm) |
| Width | 11.02" (279.91 mm) |
| Depth | 3.90" (99.06 mm) |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 48 V DC |
| Input Voltage Range | 90 V AC - 264 V AC |
| Input Frequency | 70 Hz |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 20000 mAh |
| Number of Batteries | 1 |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | CBN50U48A-1 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CBN50U48A-1 |
| Product Name | CyberShield CBN50U48A-1 Tower UPS |
| Product Series | Indoor FTTx Telecom |
| Brand Name | CyberPower |
| Product Condition | New |
| Technical Information | |
| Application/Usage | Optical Network Terminal (ONT) |
| Telecommunication | |
| Wireless Base Station | |
| Cable Modem | |
| Fiber to the Home | |
| FTTx System | |
| Cable Telephone | |
| Indoor | |
| Integrated Access Device | |
| Network Device | |
| Protection Type | Surge |
| Lightning | |
| Plug/Connector Type | IEC 60320 C7 |
| Cord Length | 10 ft (3.05 m) |
