About the product

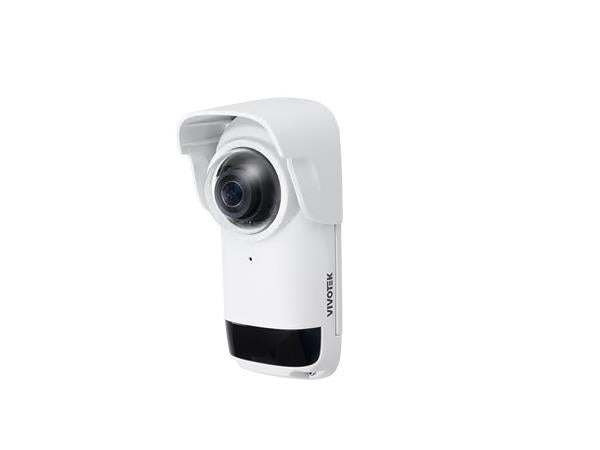

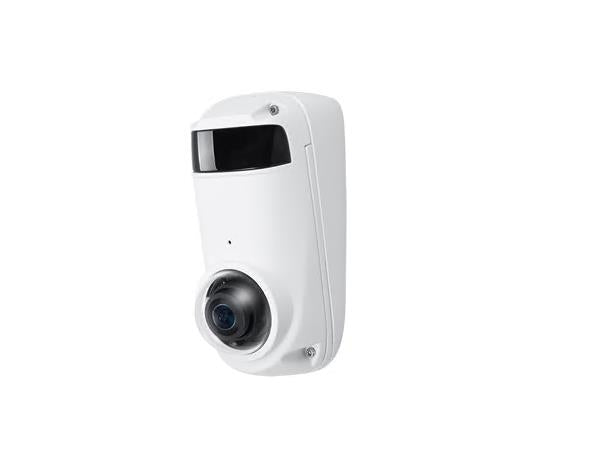

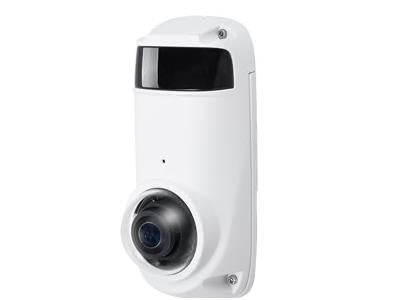

Meet the Compact Panoramic Camera: Small but mighty, it delivers a 180-degree view with near-field imaging, eliminates any blind spots. Included accessories offer both outdoor protection and increased flexibility, allowing you to tilt and adjust the camera angle. Equipped with Smart VCA and vision object analytics, this camera elevates your security with AI intelligence, empowering you to see everything, from every angle.
Technical Specifications
| Primary Information | |
| Camera Type: | Network Camera |
| Connectivity Technology: | Wireless |
| Interface Type: | RJ-45 |
| Camera Sensor Type: | CMOS |
| Camera Sensor Size: | 1/1.8 |
| Effective Sensor Resolution: | 8 MP |
| Digital Zoom: | 48 |
| Interfaces & Connections: | 10Base-T/100 BaseTX Ethernet (RJ-45) |
| RAM / Total Installed Size: | 2 GB |
| Flash Memory / Installed Size: | 8 GB |
| System Requirement: | Microsoft Windows 10/8/7;Mac 10.12 (Chrome only) |
| Features: | 180 Degree Horizontal Panoramic View;Focal Lengthf = 2.53mm;180 Degree IR Illuminators up to 20 Meters;WDR Pro (120 dB) to Provide Extreme Visibility in High Light Contrast Scenes |
| Capture | |
| Digital Video Capture Speed: | 30 Frames per second |
| Digital Video Capture Resolution: | 3840 x 2160 |
| Digital Video Format: | H.264; H.265; MJPEG |
| Dimensions&Miscellaneous | |
| Width: | 160 Mm |
| Depth: | 72 Mm |
| Height: | 60 Mm |
| General | |
| Model: | CC9391-HV |
| Maximum Angle of View: | 180 Degree(Horizontal);103 Degree(Vertical);180 Degree(Diagonal) |
| Microphone: | Built-in microphone |
| Special Feature | |
| COO: | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code: | 46171610 |
