About the product

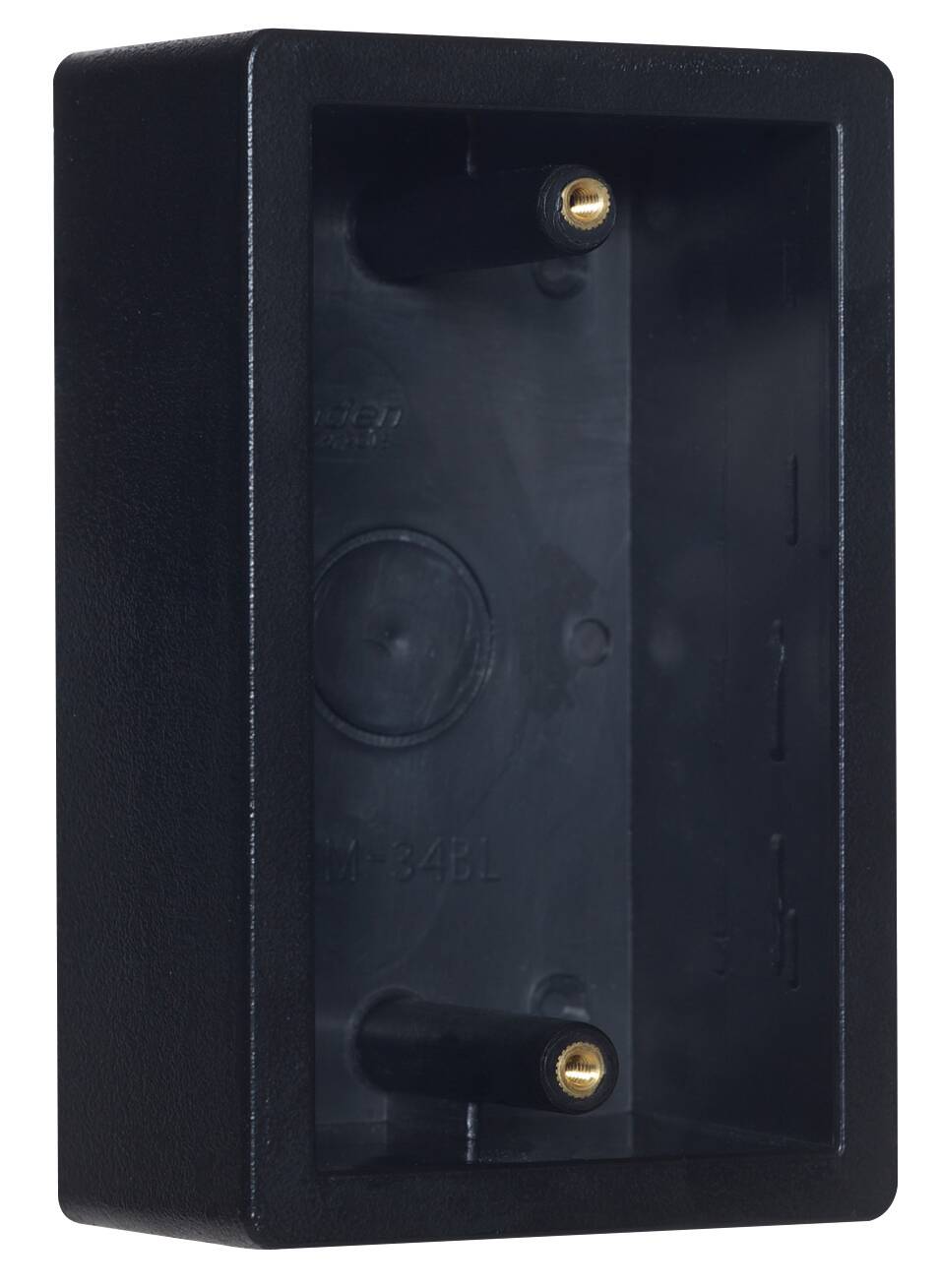

Camden Surface Box, Standard Depth Double wall, flame/Impact resistant black ABS Overview
Camden offers the industry's most extensive range of ABS plastic and metal boxes, enclosures, and trim rings for flush, semi-flush, and surface mounting. ABS plastic models are flame and vandal-resistant and are ideal for use with wireless door control transmitters.
Camden Surface Box Features
- Narrow, single gang, double gang, and round boxes/enclosures, in a variety of configurations.
- Surface and flush mounting options.
- Plastic models are constructed of sturdy flame-proof and UV-stabilized ABS.
- Stainless steel enclosures provide attractive mounting options for Camden's stainless switches.
- Offset models will fit on door jambs or sidelights.
- Option for Aura? illuminated push plate switch enclosures.
- Camden offers a variety of box sleeves and trims rings for special installation requirements.
Camden Surface Box Specifications
- Model: CM-34BL
- Size: Single gang, std. depth
- Type: Surface mount box
- Construction: Double wall, black (ABS)
- Application: Indoor, wired, or wireless
- For Switch Series: CM-35, CM-180, CM-190/3/4, CM-280, CM-300,CM-325, CM-400, CM-700, CM-1200
- Gasket: CM-120G
- Cover Plate: CM-34CP
- Material: Acrylonitrile Butadiene Styrene (ABS), Stainless Steel
- Number of Gangs: 1
- Application/Usage: Indoor
- Color: Black
- Depth: 1.8"" / 44.45 (mm)
- Height: 4.5"" / 114.3 (mm)
- Width: 2.8"" / 69.85 (mm)
- Weight: 0.2 lbs.
Technical Specifications
Camden Surface Box, Standard Depth Double wall, flame/Impact resistant black ABS Overview
Camden offers the industry's most extensive range of ABS plastic and metal boxes, enclosures, and trim rings for flush, semi-flush, and surface mounting. ABS plastic models are flame and vandal-resistant and are ideal for use with wireless door control transmitters.
Camden Surface Box Features
- Narrow, single gang, double gang, and round boxes/enclosures, in a variety of configurations.
- Surface and flush mounting options.
- Plastic models are constructed of sturdy flame-proof and UV-stabilized ABS.
- Stainless steel enclosures provide attractive mounting options for Camden's stainless switches.
- Offset models will fit on door jambs or sidelights.
- Option for Aura? illuminated push plate switch enclosures.
- Camden offers a variety of box sleeves and trims rings for special installation requirements.
Camden Surface Box Specifications
- Model: CM-34BL
- Size: Single gang, std. depth
- Type: Surface mount box
- Construction: Double wall, black (ABS)
- Application: Indoor, wired, or wireless
- For Switch Series: CM-35, CM-180, CM-190/3/4, CM-280, CM-300,CM-325, CM-400, CM-700, CM-1200
- Gasket: CM-120G
- Cover Plate: CM-34CP
- Material: Acrylonitrile Butadiene Styrene (ABS), Stainless Steel
- Number of Gangs: 1
- Application/Usage: Indoor
- Color: Black
- Depth: 1.8"" / 44.45 (mm)
- Height: 4.5"" / 114.3 (mm)
- Width: 2.8"" / 69.85 (mm)
- Weight: 0.2 lbs.
