About the product

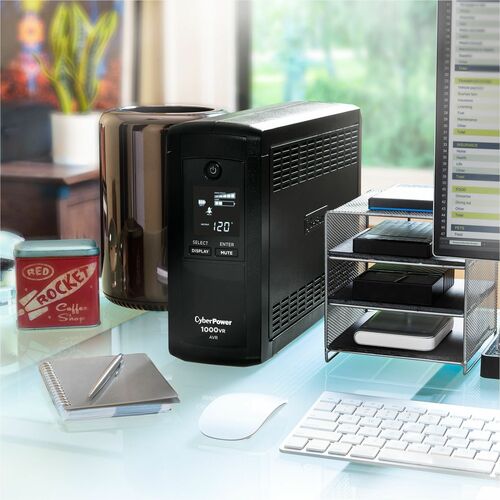

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000AVRLCD comes with a three-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.
- Capacity: 1000 VA / 600 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlet types: 9 × NEMA 5-15R
- Communication: USB, Serial
- Data line protection: Ethernet, Coaxial
- Management software: PowerPanel® Personal
- ENERGY STAR® certified: Yes
Technical Specifications
| Controls/Indicators | |
| Status Indicators | Power on |
| Management | |
| Alarm | Battery Mode |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Physical Characteristics | |
| Weight (Approximate) | 15 lb (6803.89 g) |
| Form Factor | Mini-tower |
| Height | 9" (228.60 mm) |
| Width | 3.90" (99.06 mm) |
| Depth | 10.20" (259.08 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | CP1000AVRLCD |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CP1000AVRLCD |
| Product Name | Intelligent LCD CP1000AVRLCD 1000VA Tower UPS |
| Product Series | Intelligent LCD UPS |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerPanel Personal Edition Software |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1080 J |
| Waveform Type | Simulated Sine Wave |
| Input Voltage Range | 90 V AC - 142 V AC |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
| Technical Information | |
| Dataline Protection | RG-6 |
| RJ-45 | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 4 |
| Transfer Time | 4 ms |
| Receptacle Detail | 9 x NEMA 5-15R |
