About the product

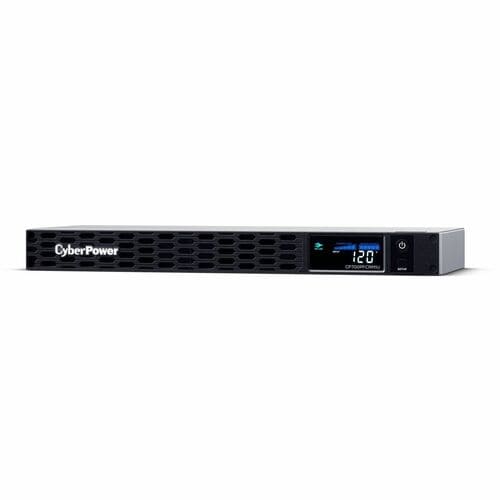

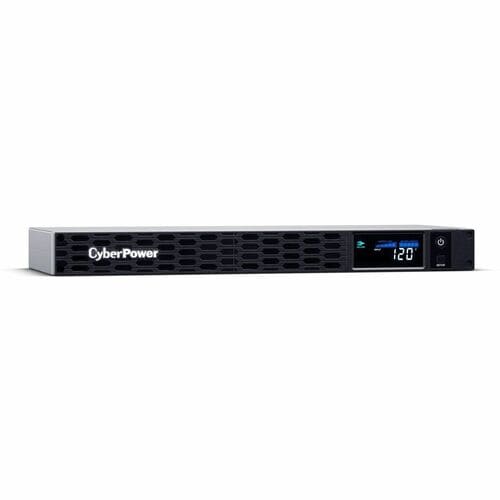

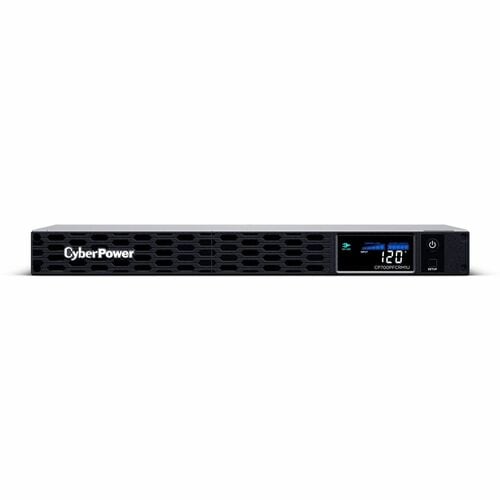

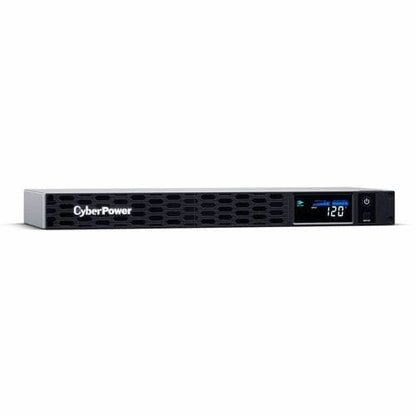

The CP700PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

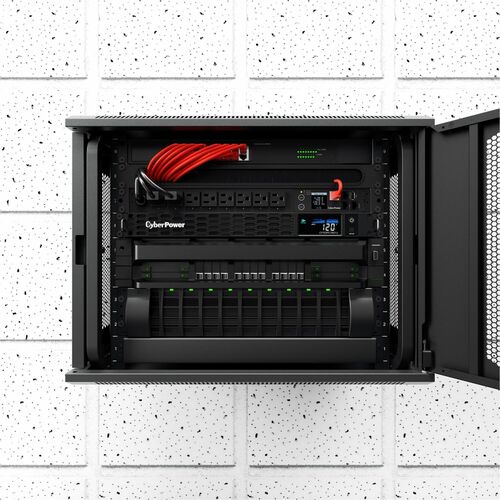

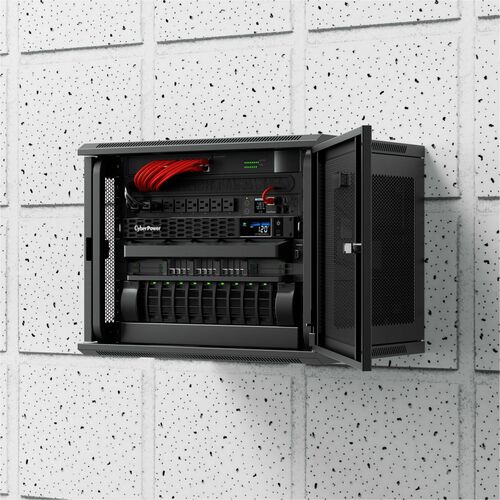

The CP700PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 9.04 inches in depth, the CP700PFCRM1U fits comfortably in short-depth rack installations where space is at a premium.
The CP700PFCRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 Connected Equipment Guarantee.
- Experience higher efficiency with lower energy cost
- 400 W load capacity - backup power for your valuable electronics
- 700 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 1.50 minute at full load
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | Three-year warranty (including coverage of batteries) |
| Miscellaneous | |
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Dry Contact | |
| Alarm | Battery Mode |
| Fault | |
| Overload | |
| Low Battery | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | CP700PFCRM1U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CP700PFCRM1U |
| Product Name | PFC Sinewave CP700PFCRM1U 700VA Rack-mountable UPS |
| Product Line | PFC Sinewave |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 18.30 lb (8300 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |

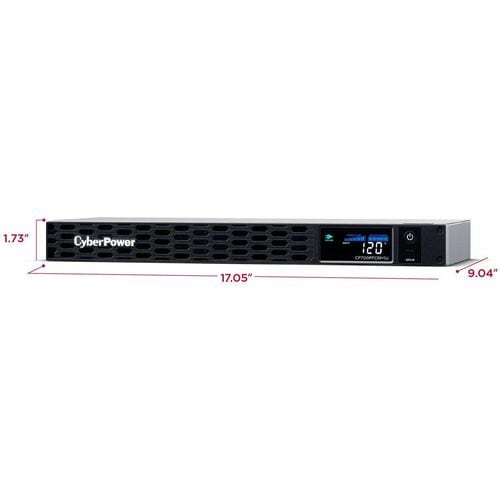

| Height | 1.73" (44 mm) |
| Width | 17.05" (433 mm) |
| Depth | 9.06" (230 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 6V |
| Battery Capacity | 8000 mAh |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 10.50 Minute |
| Backup/Run Time (Full Load) | 1.50 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1150 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 88 V AC - 144 V AC |
| 97 V AC - 144 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| 57 Hz | |
| Load Capacity (VA) | 700 VA |
| Load Capacity (Watt) | 400 W |
| Output Power Factor | 0.57 |
| Technical Information | |
| Application/Usage | Server |
| Telecommunication | |
| Workstation | |
| Corporate | |
| Security System | |
| Audio/Video Equipment | |
| Network Device | |
| Dataline Protection | RJ-45 |
| Features | Audible Alarm |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |

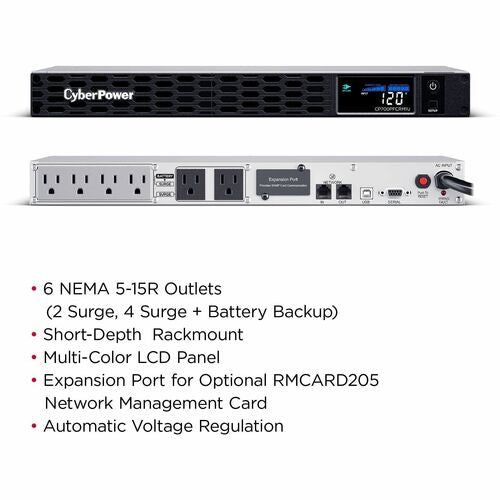

| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 8 ms |

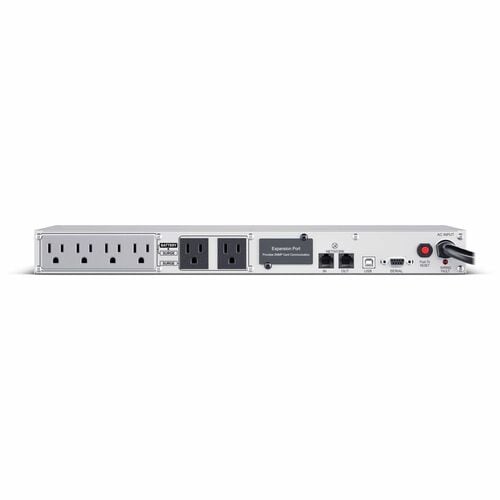

| Receptacle Detail | 6 x NEMA 5-15R |
