About the product

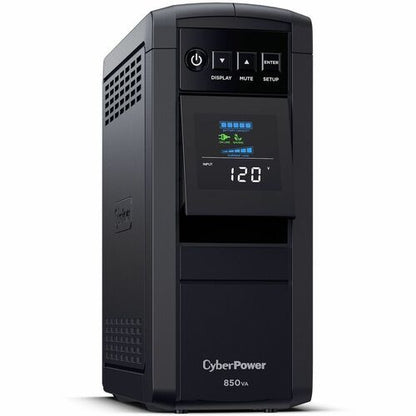

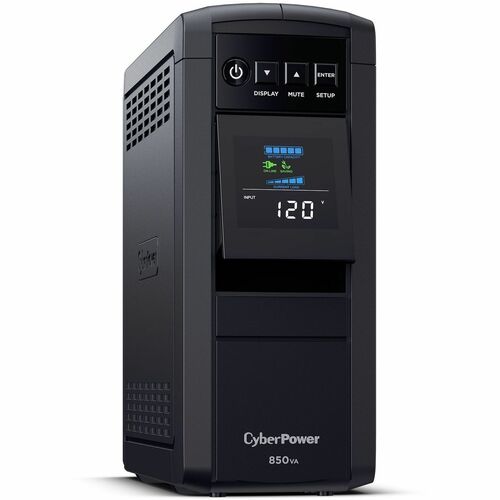

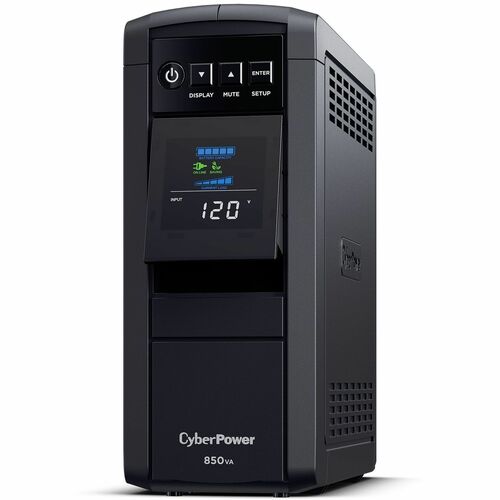

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP850PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

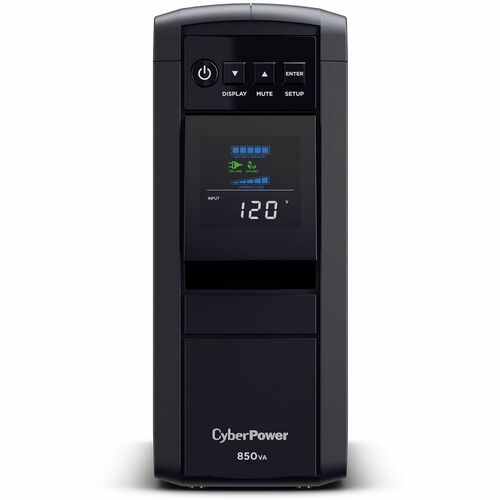

The CP850PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk.
The CP850PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850PFCLCD comes with a three-year warranty (including coverage of batteries) and a $250,000 Connected Equipment Guarantee.
- Capacity: 850VA/510 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120Vac ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord

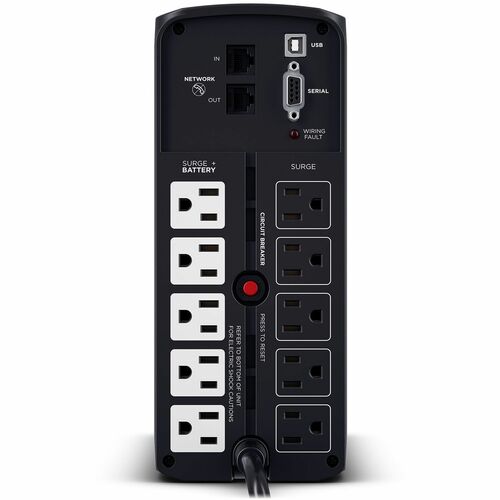

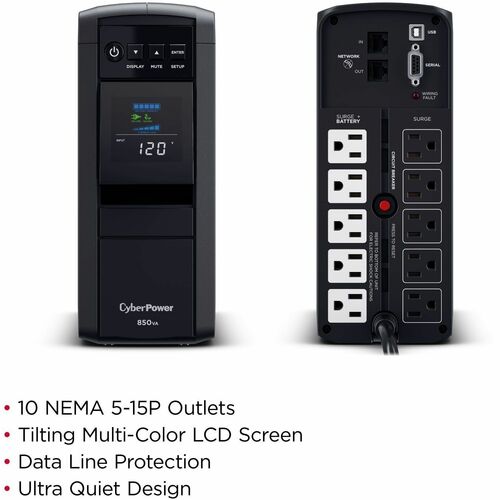

- Outlet types: 10 × NEMA 5-15R
- USB charge ports: 2
- Communication: USB, Relay
- Data line protection: Network
- Management software: PowerPanel® Personal
Technical Specifications
| Controls/Indicators | |
| Status Indicators | Power On |
| Management | |
| Alarm | Battery Mode |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 14.90 lb (6758.53 g) |
| Form Factor | Mini-tower |

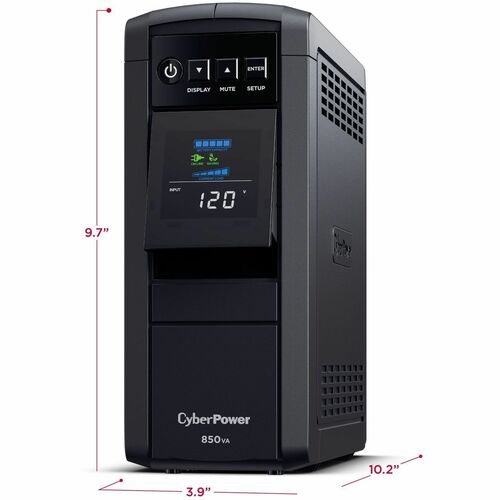

| Height | 9.70" (246.38 mm) |
| Width | 3.90" (99.06 mm) |
| Depth | 10.20" (259.08 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | CP850PFCLCD |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CP850PFCLCD |
| Product Name | CP850PFCLCD UPS 850VA 510W PFC compatible Pure sine wave |
| Product Series | PFC Sinewave UPS |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerPanel Personal Edition Software |
| Certifications & Standards |
|
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1150 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 88 V AC - 144 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 510 W |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 11 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Battery Characteristics | Maintenance-free |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Technical Information | |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft (1.52 m) |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Transfer Time | 4 ms |
| Receptacle Detail | 10 x NEMA 5-15R |
