About the product

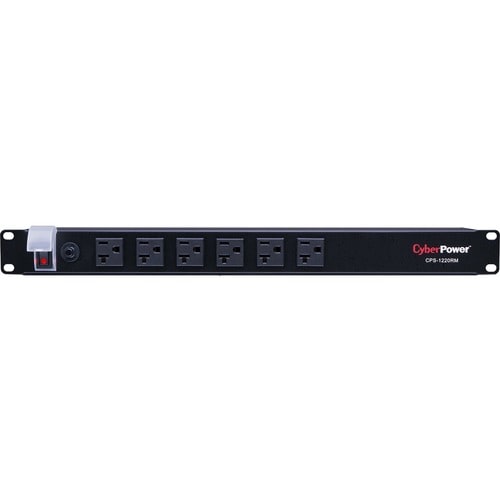

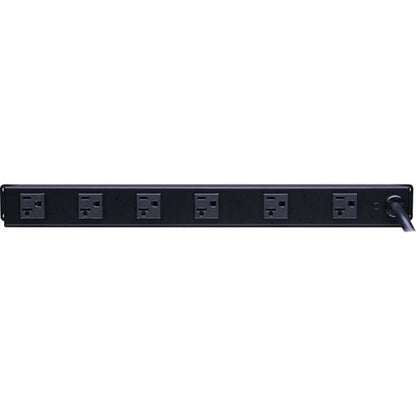

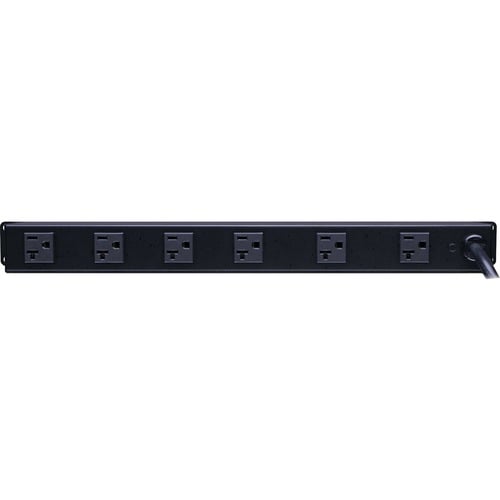

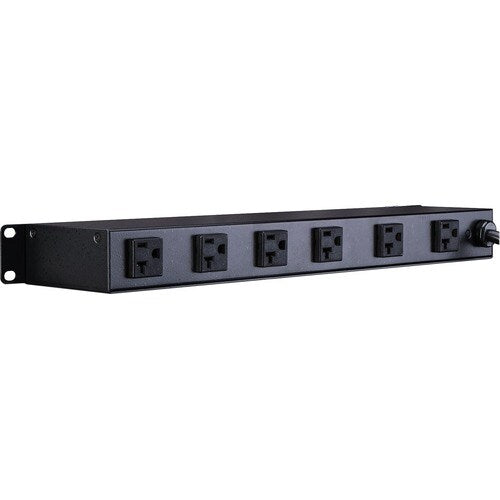

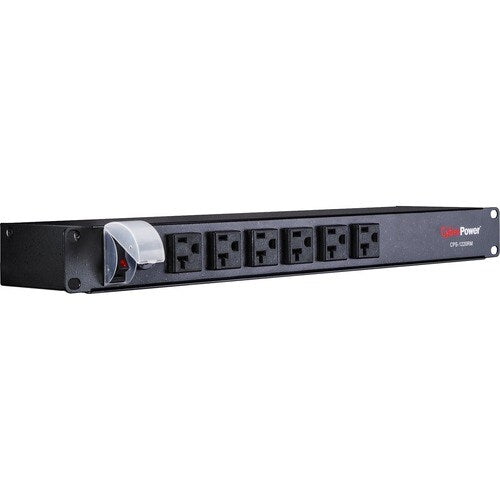

The CyberPower CPS1220RM, a 12-outlet (6 front, 6 rear) rackmount power distribution unit (PDU), provides 100 - 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1220RM has durable metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A three-year warranty covers the CPS1220RM for three years for as long as you own the product.
- Phase: Single
- Volts: 100 - 125 V
- Frequency: 60Hz
- Plug type: NEMA 5-20P
- Outlets: 12 NEMA 5-20R
- Size: 1U Rackmount
- Dimensions (in.): 17.25W x 1.75H x 4.75D
- Cord length (ft.): 15
- Warranty: 3 year
Technical Specifications
| Warranty | |
| Additional Warranty Information | CyberPower stands behind its products with an industry-leading 3 year warranty. CyberPower also offers a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of Charge. |
| Parts Warranty/Labor | 3 Year Parts & Labor |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Input Voltage Range | 100 V AC - 125 V AC |
| Power Rating (VA) | 1.80 kVA |
| Technical Information | |
| Protection Type | Short Circuit Protection |
| Plug/Connector Type | NEMA 5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Basic |
| Receptacle Detail | 12 x NEMA 5-20R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | CPS-1220RM |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CPS-1220RM |
| Product Name | Rackmount CPS-1220RM 20A PDU |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 6 lb (2721.55 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 15 ft (4.57 m) |
| Height | 1.75" (44.45 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 4.75" (120.65 mm) |
| Number of Cord/Cable | 1 |
| Product Color | Black |
