About the product

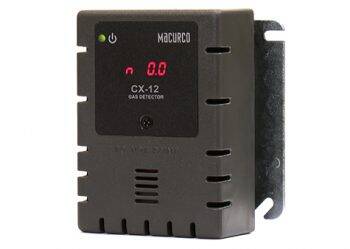

The Macurco CX-12 is a line voltage Carbon Monoxide and Nitrogen Dioxide detector that can be used as a detector, a controller or a transducer as part of a larger system. The CX-12 can control ventilation fans to reduce or keep gases within acceptable levels automatically, as well as alerting users in the vicinity when gases reach vital limits.
Perfect for uses in parking garages, mechanical rooms, restaurants, battery changing stations, breweries, storage facilities, loading docks and warehoses, firehouses and ambulance bays, and any application where employees or customers can be exposed to hazardous vapours.
Includes a built-in 5A SPDT fan relay, a 0.5A alarm out relay to control fans, valves, horns and sirens automatically. 4-20mA outputs also allow control of VFDs and allow send BMS.
CX-12 Carbon Monoxide and Nitrogen Dioxide Detector Specs and Features:
- Detects CO at concentrations from 0-200 PPM
- Detects NO2 at concentrations from 0-20 PPM
- Mounts on a 4x4 electrical box
- Powered by 100-240VAC
- Fan Relay output: 5A, 240VAC, pilot duty, SPDT, latching or non latching
- Fan relay activation: OFF or 3-20% LEL
- Fan delay settings of 0, 1, 3, 5, 10 minutes
- Alarm relay output 0.5A 120V, selectable NO or NC
- Dimensions: 11.4 x 10.2 x 5.4 cm
- Operating Temperature: -18C to 52C, 10-90% RH
- Weight: 1 lb / 0.45 kg
- cETLus approved
- Warranty: Two year limited
- Field calibration kits available from the manufacturer
Technical Specifications
The Macurco CX-12 is a line voltage Carbon Monoxide and Nitrogen Dioxide detector that can be used as a detector, a controller or a transducer as part of a larger system. The CX-12 can control ventilation fans to reduce or keep gases within acceptable levels automatically, as well as alerting users in the vicinity when gases reach vital limits.
Perfect for uses in parking garages, mechanical rooms, restaurants, battery changing stations, breweries, storage facilities, loading docks and warehoses, firehouses and ambulance bays, and any application where employees or customers can be exposed to hazardous vapours.
Includes a built-in 5A SPDT fan relay, a 0.5A alarm out relay to control fans, valves, horns and sirens automatically. 4-20mA outputs also allow control of VFDs and allow send BMS.
CX-12 Carbon Monoxide and Nitrogen Dioxide Detector Specs and Features:
- Detects CO at concentrations from 0-200 PPM
- Detects NO2 at concentrations from 0-20 PPM
- Mounts on a 4x4 electrical box
- Powered by 100-240VAC
- Fan Relay output: 5A, 240VAC, pilot duty, SPDT, latching or non latching
- Fan relay activation: OFF or 3-20% LEL
- Fan delay settings of 0, 1, 3, 5, 10 minutes
- Alarm relay output 0.5A 120V, selectable NO or NC
- Dimensions: 11.4 x 10.2 x 5.4 cm
- Operating Temperature: -18C to 52C, 10-90% RH
- Weight: 1 lb / 0.45 kg
- cETLus approved
- Warranty: Two year limited
- Field calibration kits available from the manufacturer
