Camden Advanced Logic Relay and Power Supply Cabinet Overview

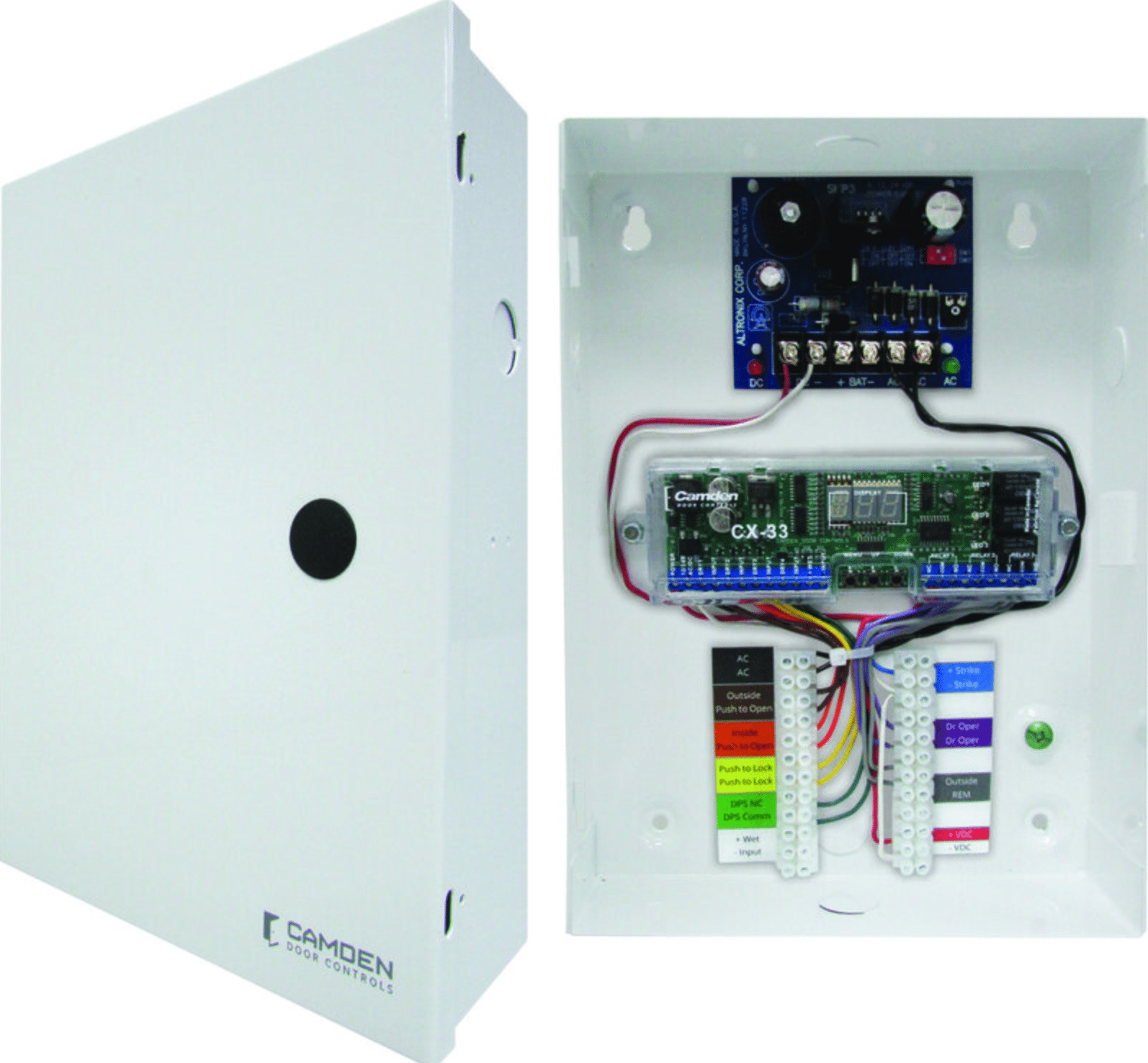

Camden CX-33PS control and power supply cabinet are designed to provide the easiest installation, with pre-wired system components, large color-coded wiring terminals, and a compact metal cabinet, with an option for a lock. The UL-listed 2 Amp power supply is able to supply power to controls and annunciators, as well as, electrified locking devices. A class II transformer is also provided.
CX-33PS control and power supply cabinets provide a code-compliant solution for any door control application and are pre-configured when purchased as part of Camden restroom control and emergency call system kits.
Camden Advanced Logic Relay & Supply Cabinet Features
- Complies with ANSI A158.19 for Power Operated Pedestrian doors.
- 12V or 24V DC selectable power supply module.
- Short circuit and thermal overload protection.
- Visual LED indicator for easy diagnosing
- 15 Operating modes were selected using 3 simple pushbuttons.
- Enhanced security features include; Lock down mode and delayed relay activation.
- Three large, blue 8-segment LED displays for easy programming and configuration.
- Five convenient conduit knockouts; one per side.
- Pre-punched cam lock provision (Cam lock set ordered separately.)
- 3-year warranty
Camden Advanced Logic Relay & Supply Cabinet Specification
- AC Input: 12V to 28V
- DC Output: 12V or 24V DC
- Current: 2 Amps
- Battery Backup: Gel Type Battery
- LED Indicator: AC and DC Output
- Temperature: 40°F to 158°F (-40°C to 70°C)
- Inputs:
- (4) Dry
- (1) Wet 5V to 120V AC/DC, Non-Polarity Optically Isolated
- Outputs: (3) Form 'C' (SPDT), 3 Amps @ 24V DC
- Time Delay:
- Hold 1 Timer: 0 to 50 seconds
- Delay 1 Timer: 0 to 15 seconds
- Hold 2 Timer: 0 to 50 seconds
- Delay 2 Timer: 0 to 60 seconds
- Hold 3 Timer: 0 to 50 seconds
- Delay on Activate: 0 to 10 seconds
- Dimensions: 7 7/8"" W x 11 1/16"" H x 2 13/16"" D (200mm x 281mm x 72mm)
Technical Specifications
Camden Advanced Logic Relay and Power Supply Cabinet Overview
Camden CX-33PS control and power supply cabinet are designed to provide the easiest installation, with pre-wired system components, large color-coded wiring terminals, and a compact metal cabinet, with an option for a lock. The UL-listed 2 Amp power supply is able to supply power to controls and annunciators, as well as, electrified locking devices. A class II transformer is also provided.
CX-33PS control and power supply cabinets provide a code-compliant solution for any door control application and are pre-configured when purchased as part of Camden restroom control and emergency call system kits.
Camden Advanced Logic Relay & Supply Cabinet Features
- Complies with ANSI A158.19 for Power Operated Pedestrian doors.
- 12V or 24V DC selectable power supply module.
- Short circuit and thermal overload protection.
- Visual LED indicator for easy diagnosing
- 15 Operating modes were selected using 3 simple pushbuttons.
- Enhanced security features include; Lock down mode and delayed relay activation.
- Three large, blue 8-segment LED displays for easy programming and configuration.
- Five convenient conduit knockouts; one per side.
- Pre-punched cam lock provision (Cam lock set ordered separately.)
- 3-year warranty
Camden Advanced Logic Relay & Supply Cabinet Specification
- AC Input: 12V to 28V
- DC Output: 12V or 24V DC
- Current: 2 Amps
- Battery Backup: Gel Type Battery
- LED Indicator: AC and DC Output
- Temperature: 40°F to 158°F (-40°C to 70°C)
- Inputs:
- (4) Dry
- (1) Wet 5V to 120V AC/DC, Non-Polarity Optically Isolated
- Outputs: (3) Form 'C' (SPDT), 3 Amps @ 24V DC
- Time Delay:
- Hold 1 Timer: 0 to 50 seconds
- Delay 1 Timer: 0 to 15 seconds
- Hold 2 Timer: 0 to 50 seconds
- Delay 2 Timer: 0 to 60 seconds
- Hold 3 Timer: 0 to 50 seconds
- Delay on Activate: 0 to 10 seconds
- Dimensions: 7 7/8"" W x 11 1/16"" H x 2 13/16"" D (200mm x 281mm x 72mm)
