About the product

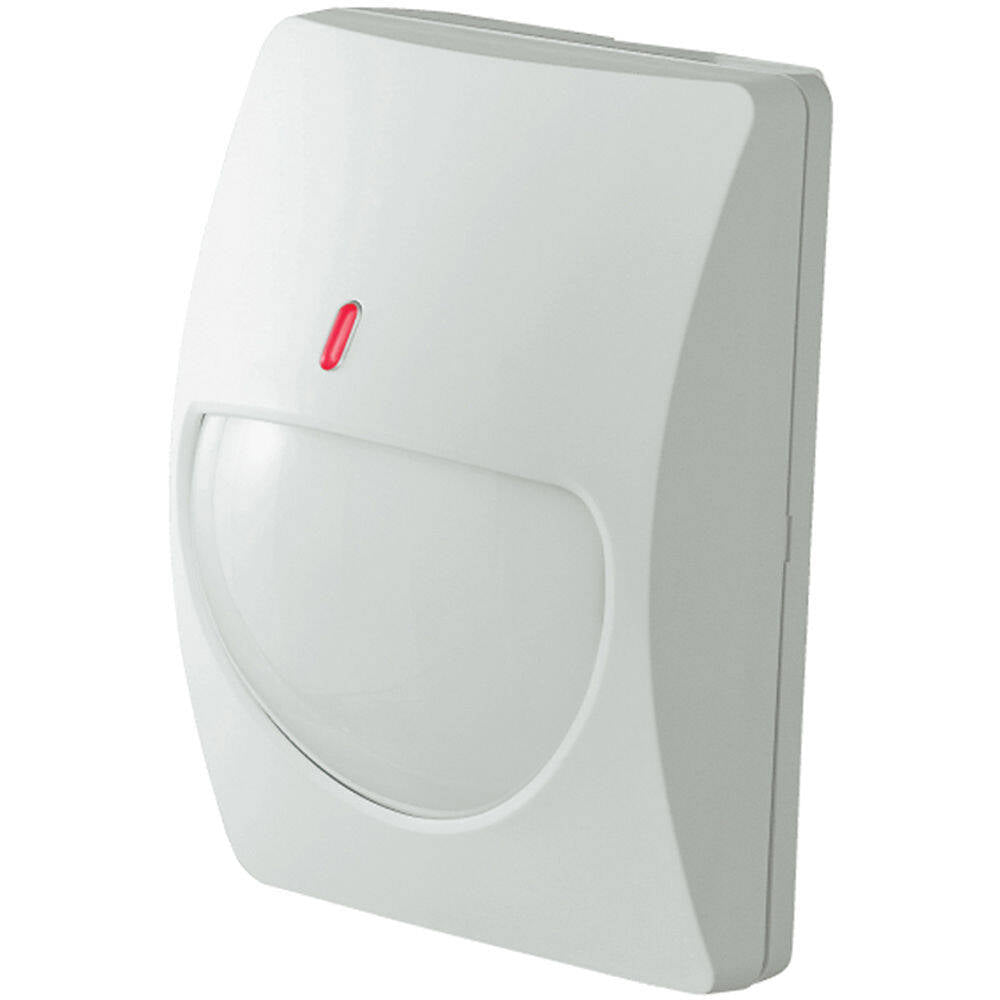

The CX-702 is an indoor PIR motion detector designed to give extremely stable long-range detection performance in a variety of internal commercial and industrial applications. With patented Multi-Focus technology, sensitivity is maintained through the entire coverage area, even in high temperature areas or in applications with low temperature contrast. Combined with Double Conductive Shielding and Temperature Compensation, a high level of false alarm protection is guaranteed. In addition, a unique feature to the CX-702 is the ability to choose between a 70' x 70' pattern and a 150' x 8' with a simple flip of the lens.
Optex PIR Motion Detector With Dual Purpose Lens Wide or Long Range Features:
- Multi-Focus Optics (Patent Listed)
- Double Conductive Shielding (Patent Listed)
- Completely Sealed Optics with Dual Structure
- Dual Purpose Lens
- Temperature Compensation Circuit
- False Alarm Protection (RFI and Temperature Protection)
- Disturbance-Free Tamper Switch
- Easy Installation
- Operating voltage 9-16 VDC
- Current Draw: 8mA nom at 12VDC
- NC alarm output
- NC tamper output
- Operating temp: -20 to +50C
Technical Specifications
The CX-702 is an indoor PIR motion detector designed to give extremely stable long-range detection performance in a variety of internal commercial and industrial applications. With patented Multi-Focus technology, sensitivity is maintained through the entire coverage area, even in high temperature areas or in applications with low temperature contrast. Combined with Double Conductive Shielding and Temperature Compensation, a high level of false alarm protection is guaranteed. In addition, a unique feature to the CX-702 is the ability to choose between a 70' x 70' pattern and a 150' x 8' with a simple flip of the lens.
Optex PIR Motion Detector With Dual Purpose Lens Wide or Long Range Features:
- Multi-Focus Optics (Patent Listed)
- Double Conductive Shielding (Patent Listed)
- Completely Sealed Optics with Dual Structure
- Dual Purpose Lens
- Temperature Compensation Circuit
- False Alarm Protection (RFI and Temperature Protection)
- Disturbance-Free Tamper Switch
- Easy Installation
- Operating voltage 9-16 VDC
- Current Draw: 8mA nom at 12VDC
- NC alarm output
- NC tamper output
- Operating temp: -20 to +50C
