About the product
DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

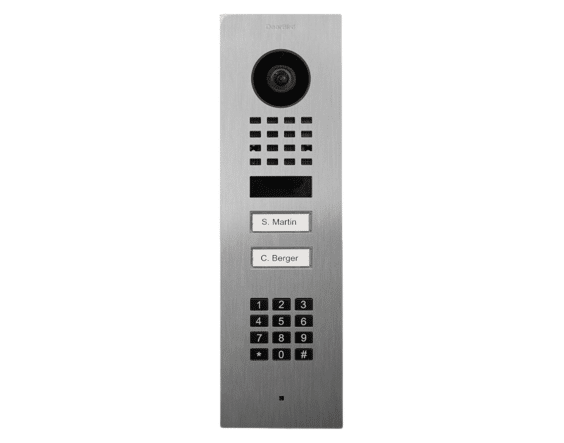

Doorbird D1102KV-FL IP Video Door Station 2 Unit w/ Keypad, Flush Mount, Stainless Steel Features:
- Open API
- Video and audio call
- Smart Transmission Mode (STM)
- Smart Home & NVR compatible
- Microphone
- Automatic door buzzer
- Free visitor history
- Individual action schedules, e.g.:
- Geofencing
- Night vision
- HDTV Video
- Light sensor
- One freely configurable bistable latching relay
- Easy self-install
- Call button
- Motion sensor with 4D technology
- Noise reduction and echo cancellation (AEC, ANR)
- Easy connection to the network
- WiFi-enabled
- Bluetooth Low Energy (BLE)
- Keypad Module
Doorbird D1102KV-FL IP Video Door Station 2 Unit w/ Keypad, Flush Mount, Stainless Steel Specifications:
NETWORK:
- Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
- WiFi: 2.4 GHz b/g/n
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM
MOTION SENSOR:
- Type: Active
- Detection angle: 80° (H), 50° (V)
- Range: 1 - 6 m (3.3 - 19.7 ft), depending on the environment, configurable in 1 m (3.3 ft) steps
- Technology: 4D. Based on multiple integrated sensors and algorithms, e.g., Radio Frequency Energy (RFE)
- Configuration: Via App, e.g.,
- Individual schedules
- Individual events (e.g., switch a relay, push notification, SIP call [audio/video], HTTP(s) requests)
- Movement direction (coming, leaving, both)
- Range (1 - 6 m / 3.3 - 19.7 ft)
INTEGRATED WIRELESS MODULES:
- WiFi: 2.4 GHz
- Bluetooth: Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob Remote A8007
- Sensor: 24 GHz, can be disabled
GENERAL:
- Front panel: 3 mm (0.12 in)
- Mounting housing (backbox): Stainless steel
- Mounting type: Flush-mounted, surface-mounted version sold separately
- Call button: Plastic
- Nameplate: Illuminated
- Keypad Module:
- 12 keys, illuminated, configurable via App, e.g.
- Individual PIN codes
- Individual events (e.g., switch a relay, HTTP(s) request)
- Individual schedules
- Up to 500 PIN codes are manageable
- 12 keys, illuminated, configurable via App, e.g.
- Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Weight: 1195 g
- Connectors:
- LAN/PoE (T+, T-, R+, R-)
- Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g., for the electric door opener
- External input for an external door opener button
- 15 V DC input (+, -), max. 15 W
- Weatherproof: Yes, IP65
- Approvals: CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
- Dimensions: 85.00 x 284.00 x 26.7 mm (H x W x D), 3.35 x 11.18 x 1.05 in (H x W x D)
- Operating conditions: -25 to +55°C / -13 to 131°F, Humidity 10 to 85% RH (non-condensing)
Scope of Delivery:
- 1x Main Electrical Unit
- 1x Front panel
- 1x Flush-mounting housing (backbox)
- 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
- 1x RJ45 adapter
- 1x Screwdriver
- 1x Quickstart guide with Digital Passport
- 1x Installation manual
- 1x Small parts
Warranty: See www.doorbird.com/warranty
CURRENT SYSTEM REQUIREMENTS:
- System requirements:
- Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
- Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
- Network: Ethernet Network, with DHCP
- Recommended installation height: The camera lens should be at a min. height of 145 cm (57 in). Before the installation, please determine your optimal installation height.
VIDEO:
- Camera: HDTV 1080p, dynamic (VGA – HDTV)
- Lens: High-end ultra wide-angle hemispheric lens, 180° (D), 150° (H), 82° (V), straightened, IR-capable
- Night vision: Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)
AUDIO:
- Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
- Audio streaming: Two-way, full duplex
