About the product
The Doorbird D2101KH is a modern video intercom for home or office . As well as the refined and sophisticated look, this model introduces some new functionality. Such as, keypad, integrated RFID for swipe access, advanced motion sensor, an extra door/gate relay, and excellent audio quality.
And it looks so elegant!
For single-family houses and commercial buildings with 1 Call Button

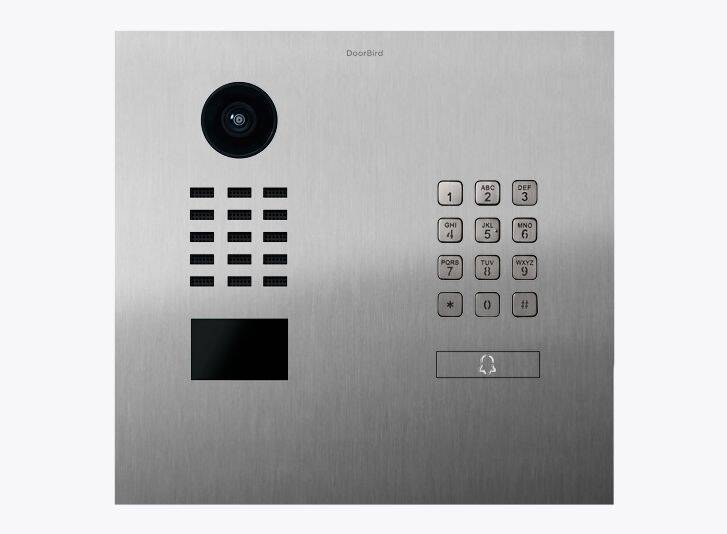

DoorBird D2101KH IP Video Station, 1 Call Button Specifications:
- sinless steel V2A
- Mounting type: Flush-mounting and surface-mounting housing sold separately
- Call button: Stainless Steel, Bell symbol, engraved throughmaterial for illumination, self-adhesive.Engravable metal nameplate sold separately, see doorbirdintercom.com.au/collections/button-covers
- Power supply: 15 V DC (max. 15 W) or Power over Ethernet(PoE 802.3af Mode-A) *Sold Separately
- Keypad Module: 12 keys, illuminated, configurable via App, e.g.
- Individual PIN codes
- Individual events (e.g. switch a relay,HTTP(s) request)
- Individual schedules
- Up to 100 PIN codes manageable
- Weight: 2510g
Connectors:
- • RJ45, for LAN/PoE
- • Bi-stable latching relay #1, max. 24 V DC / AC,1 Ampere, e.g. for the electric door opener
- • Bi-stable latching relay #2, max. 24 V DC / AC,1 Ampere, e.g. for the electric door opener
- • External input for external door opener button (potential-free)
- • 15 V DC input (+, -), max. 15 W
- • Relays can be expanded/detached withDoorBird I/O Door Controller
Weather-proof: Yes, IP65
- Approvals: CE, IC, FCC, RoHS, IP65, IK08
- Dimensions: 256 x 275,25 x 48,75 mm (H x W x D) | 10,08 x 10,13 x 1,92 in (H x W x D)
- Operating conditions: -25 to +55°C / -13 to 131°F | Humidity 10 to 85 % RH(non-condensing)
Warranty: 2 Years see doorbird.com/warranty
Current System requirements:
- Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/TabletInternet: High-Speed Landline BroadbandInternet connection, DSL, cable or fiber optic, no socks or proxy server network: Ethernet Network, with DHCP
- Recommended installation height: The camera lens should be at a min. height of145 cm (57 in). Before the installation please determine the optimal installation height.
Optional Accessories Sold separately:
- Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) – EAN 4260423867314
- Surface-mounting housing, flush-mounting housing, Protective-Hood
Video
- Camera: Camera HDTV 720p, dynamic (VGA – HDTV)
- Lens: High-end ultra wide-angle hemispheric lens180° (D), 140° (H), 100° (V), straightened,IR-capable
- Night-vision: Yes, light sensor, automatic IR-cut filter,12 Infrared LEDs (850 nm)
Audio
- Audio components: Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
- Audio streaming: Two-way, full duplex
Network
- Ethernet: RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP,TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF(RTP [RFC-2833], SIP INFO [RFC-2976]), STM
- Motion Sensor
Type: Active
- Detection angle: 54° (H), 70° (V)
- Range: 1 - 10 m (3.3 - 32.9 ft), depends on onenvironment, configurable in 1 m (3.3 ft) steps.
- Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
- Configuration: Via App, e.g.• Range (1 - 10 m / 3.3 - 32.9 ft)• Movement direction (coming, leaving, both)• Individual events (e.g. switch a relay,push notification, SIP call [audio/video],HTTP(s) notification)• Individual schedules
RFID
- Type: Active Reader Passive Tag (ARPT) system
- Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
- Frequency: 125 kHz
- Range: 0 - 3 cm, depending on environment
- Antenna: Internal
- CompatibleTransponder: RFID key fobs, sold separately, see doorbirdintercom.com/fobs | Up to 100 tags manageable
- Configuration: Via App, e.g.
- Tag (add, delete)
- Individual events (e.g. switch a relay,push notification, SIP call [audio/video],HTTP(s) notification)
- Individual schedules
Integrated Wireless Module
- RFID: 125 kHz
- Sensor: 24 GHz, can be disabled
Technical Specifications
The Doorbird D2101KH is a modern video intercom for home or office . As well as the refined and sophisticated look, this model introduces some new functionality. Such as, keypad, integrated RFID for swipe access, advanced motion sensor, an extra door/gate relay, and excellent audio quality.
And it looks so elegant!
For single-family houses and commercial buildings with 1 Call Button
DoorBird D2101KH IP Video Station, 1 Call Button Specifications:
- sinless steel V2A
- Mounting type: Flush-mounting and surface-mounting housing sold separately
- Call button: Stainless Steel, Bell symbol, engraved throughmaterial for illumination, self-adhesive.Engravable metal nameplate sold separately, see doorbirdintercom.com.au/collections/button-covers
- Power supply: 15 V DC (max. 15 W) or Power over Ethernet(PoE 802.3af Mode-A) *Sold Separately
- Keypad Module: 12 keys, illuminated, configurable via App, e.g.
- Individual PIN codes
- Individual events (e.g. switch a relay,HTTP(s) request)
- Individual schedules
- Up to 100 PIN codes manageable
- Weight: 2510g
Connectors:
- • RJ45, for LAN/PoE
- • Bi-stable latching relay #1, max. 24 V DC / AC,1 Ampere, e.g. for the electric door opener
- • Bi-stable latching relay #2, max. 24 V DC / AC,1 Ampere, e.g. for the electric door opener
- • External input for external door opener button (potential-free)
- • 15 V DC input (+, -), max. 15 W
- • Relays can be expanded/detached withDoorBird I/O Door Controller
Weather-proof: Yes, IP65
- Approvals: CE, IC, FCC, RoHS, IP65, IK08
- Dimensions: 256 x 275,25 x 48,75 mm (H x W x D) | 10,08 x 10,13 x 1,92 in (H x W x D)
- Operating conditions: -25 to +55°C / -13 to 131°F | Humidity 10 to 85 % RH(non-condensing)
Warranty: 2 Years see doorbird.com/warranty
Current System requirements:
- Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/TabletInternet: High-Speed Landline BroadbandInternet connection, DSL, cable or fiber optic, no socks or proxy server network: Ethernet Network, with DHCP
- Recommended installation height: The camera lens should be at a min. height of145 cm (57 in). Before the installation please determine the optimal installation height.
Optional Accessories Sold separately:
- Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) – EAN 4260423867314
- Surface-mounting housing, flush-mounting housing, Protective-Hood
Video
- Camera: Camera HDTV 720p, dynamic (VGA – HDTV)
- Lens: High-end ultra wide-angle hemispheric lens180° (D), 140° (H), 100° (V), straightened,IR-capable
- Night-vision: Yes, light sensor, automatic IR-cut filter,12 Infrared LEDs (850 nm)
Audio
- Audio components: Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
- Audio streaming: Two-way, full duplex
Network
- Ethernet: RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP,TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF(RTP [RFC-2833], SIP INFO [RFC-2976]), STM
- Motion Sensor
Type: Active
- Detection angle: 54° (H), 70° (V)
- Range: 1 - 10 m (3.3 - 32.9 ft), depends on onenvironment, configurable in 1 m (3.3 ft) steps.
- Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
- Configuration: Via App, e.g.• Range (1 - 10 m / 3.3 - 32.9 ft)• Movement direction (coming, leaving, both)• Individual events (e.g. switch a relay,push notification, SIP call [audio/video],HTTP(s) notification)• Individual schedules
RFID
- Type: Active Reader Passive Tag (ARPT) system
- Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
- Frequency: 125 kHz
- Range: 0 - 3 cm, depending on environment
- Antenna: Internal
- CompatibleTransponder: RFID key fobs, sold separately, see doorbirdintercom.com/fobs | Up to 100 tags manageable
- Configuration: Via App, e.g.
- Tag (add, delete)
- Individual events (e.g. switch a relay,push notification, SIP call [audio/video],HTTP(s) notification)
- Individual schedules
Integrated Wireless Module
- RFID: 125 kHz
- Sensor: 24 GHz, can be disabled
