Data Capturing Devices

Expected delivery 3 to 7 business days (exceptions applied)

Zebra

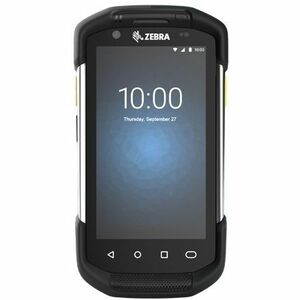

Zebra TC77 Handheld Terminal - 1D, 2D - 4G, 4G LTE, UMTS, HSPA, HSPA+, GPRS, EDG

Zebra TC77 Handheld Terminal - 1D, 2D - 4G, 4G LTE, UMTS, HSPA, HSPA+, GPRS, EDG

Regular price $0.00 CAD
Regular price $0.00 CAD Sale price $0.00 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Ask for quote
Shipping calculated at checkout.
Zebra TC77 Handheld Terminal - 1D, 2D - 4G, 4G LTE, UMTS, HSPA, HSPA+, GPRS, EDGE - SE4750Scan EngineSnapdragon 2.20 GHz - 4 GB RAM - 32 GB Flash - 4.7\" HD Touchscreen - LED - Front Camera - Rear Camera - Android Upgradable to Android 14 - Wireless LAN - Bluetooth - Rugged - Battery Included - IP65, IP67

VPN:TC77HL-5MK24BG-NA SKU:DCD101172 UPC:

  • Android is a perfect operating system for businesses and includes a variety of features for users that can make the processes in your organization more effective
  • 4.7" LED screen is ideal for scan intensive applications
  • Store your additional data in the supported microSD memory card

Volume discount available - Ask for quote..

View full details

Recently Viewed

Zebra TC77 Handheld Terminal - 1D, 2D - 4G, 4G LTE, UMTS, HSPA, HSPA+, GPRS, EDG

Product information summary

Zebra TC77 Handheld Terminal - 1D, 2D - 4G, 4G LTE, UMTS, HSPA, HSPA+, GPRS, EDG

About the product

THE ULTIMATE IN ULTRA-RUGGED ENTERPRISE-CLASS ALL TOUCH COMPUTING

At the edge of your business are your front line workers that spend their days face-to-face serving the important asset in your company - your customers. Now, there's a device designed to take customer service to the next level by delivering everything your workers need to achieve peak efficiency, with trouble-free reliability - the TC72 and TC77 Android Touch Computers. This family builds on the highly successful TC7 Series family to create the ultimate ultra-rugged all-touch computer for all workers inside and outside the four walls - a smartphone experience for maximum simplicity, construction designed to withstand years of the toughest everyday use and abuse, and a new platform offering more capabilities than any other device in this class. The TC72 and TC77 - for a real competitive edge at the edge of your business, delivered.

And with best-in-class outdoor readability, the screen is easy to read, even in bright sunlight.

Super simple data capture: barcodes, labels and documents

Advanced scanning technology and PRZM Intelligent Imaging deliver lightning fast capture of printed and electronic 1D and 2D barcodes, including Digimarc - regardless of condition. The expanded working range and wide field of view allow workers to scan barcodes nearer and farther away, while omnidirectional scanning delivers true point and shoot performance - no need to ever align the device with the barcode. Need to capture multiple barcodes on a label or data on a form? You can do it all with the press of a single button with Zebra's SimulScan, a no-cost pre-installed Mobility DNA application.

Full shift power your workers can count on

The PowerPrecision+ high capacity battery delivers up to an impressive 15 hours of power1- plenty for the longest shift. With Warm Swap mode, swapping batteries is fast and easy - there's no need to turn off the device or close active apps. And with fast charging, batteries are fully charged in record time.

Complete cellular network flexibility with single device simplicity

No matter where your workers are, they can stay connected. Simultaneous support for two carriers is ideal for workers that travel to areas better served by different carriers. And aggregated carrier support delivers faster upload and download speeds. The TC77 is certified on leading public safety networks, including AT&T FirstNet and Verizon, assuring responders have the connectivity they need even when networks are overloaded in crisis situations.

THE ULTIMATE USER EXPERIENCE

Android for instant familiarity

Your workers already know how to use an Android device, virtually eliminating training time and adoption curves. And you can deliver the highly graphic interactive apps today's workers expect.

Advanced touchscreen technology

The high-definition display offers plenty of real estate for intuitive graphics-intensive applications. The easy, familiar and flexible multi-touch operation works even when wet, with a gloved finger or a stylus.

Longer WiFi range and speed - with less power

2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology allows access points to communicate with multiple devices simultaneously via pinpoint beamforming, boosting WiFi network capacity, speed and range. And processing is shifted from the mobile device to the access point, extending battery cycle time.

Bluetooth 5.0 for twice the speed and four times the range

An extended range of 800 ft./240 m and data speeds up to 2 Mbps increase application flexibility and performance for Bluetooth peripherals, such as printers and headset

  • Android is a perfect operating system for businesses and includes a variety of features for users that can make the processes in your organization more effective
  • 4.7" LED screen is ideal for scan intensive applications
  • Store your additional data in the supported microSD memory card
  • 4 GB RAM / 32 GB flash memory helps run applications rapidly and stores the mightiest databases
  • Built-in Wi-Fi enables seamless transfer of captured images and scanned data between devices
  • With integrated Bluetooth module, gadgets such as portable tag printers can be utilized rapidly and effortlessly without cable connections
  • Phone-size form factor - Ideal for offsite pros as it effortlessly fits in hip holsters and vehicle-mounted cradles

Technical Specifications

Interfaces/Ports
USBYes
Keyboard/Keypad
Buttons & Keys

On-screen keypad and Enterprise Keyboard

Power Description
Power SourceBattery
Warranty
Additional Warranty Information

Subject to the terms of Zebra's hardware warranty statement, the TC72/TC77 Series is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:

http://www.zebra.com/warranty

Software
Operating SystemAndroid
Upgradable Operating SystemAndroid 14
Touchscreen Information
TouchscreenYes
Multi-touch ScreenYes
Memory
Flash Memory32 GB
Standard Memory4 GB
Memory Card SupportedmicroSD
Camera
Rear CameraYes
Rear Camera Resolution13 Megapixel
Front CameraYes
Front Camera Resolution5 Megapixel
Display & Graphics
Screen Resolution1280 x 720
Screen Size4.7"
Screen ModeHD
Display Screen TypeLED
Processor & Chipset
Processor Speed2.20 GHz
Processor TypeSnapdragon
Processor Model660
Processor CoreOcta-core (8 Core)
Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity4620 mAh
Battery IncludedYes
Maximum Battery Run Time15 Hour
Battery Voltage3.70 V
Physical Characteristics
Weight (Approximate)13.30 oz (377.05 g)
Form FactorPhone-size
Height6.30" (160.02 mm)
Width3.30" (83.82 mm)
Depth1.10" (27.94 mm)
RuggedYes
General Information
Product TypeHandheld Terminal
Manufacturer Part NumberTC77HL-5MK24BG-NA
Manufacturer Website Addresshttp://www.zebra.com
ManufacturerZebra Technologies Corporation
Product NameTC77 Handheld Terminal
Product SeriesTC77
Brand NameZebra
Miscellaneous
Application/UsageLogistics
Warehouse
Transportation
Retail
Public Safety
Manufacturing
Government
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP67
IP65
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Network & Communication
BluetoothYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w
Bluetooth StandardBluetooth 5.0 BLE
GPSYes
Cellular Data Connectivity TechnologyUMTS
4G LTE
GPRS
EDGE
HSPA+
HSPA
4G
Cellular Network SupportedGSM
Near Field Communication (NFC)Yes
Global Navigation Satellite System (GNSS) SupportedBeiDou/Galileo/GLONASS
Technical Information
Connectivity TechnologyWireless
FeaturesPush-to-talk
Drop Resistant
Gorilla Glass
Sensor TypeGyroscope
eCompass
Accelerometer
Light Sensor
Motion Sensor
Pressure Sensor
Scanner RangeStandard Range
Drop Specification

Multiple 6 ft./1.8 m drop to concrete across full operating temperature range, multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G

Image Sensor TypeImager
Multi-SIM SupportedYes
Number of SIM Card Supported2
SIM Size SupportedNano
Google Mobile Services (GMS)Yes
Scan Engine ModelSE4750
Scanning Capability1D
2D
