Data Capturing Devices
Expected delivery 3 to 7 business days (exceptions applied)
Elo

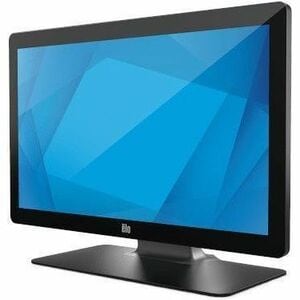

Elo 2202L 22\" Class LED Touchscreen Monitor - 16:9 - 14 ms - 21.5\" Viewable -
Elo 2202L 22\" Class LED Touchscreen Monitor - 16:9 - 14 ms - 21.5\" Viewable -
VPN:E159758 SKU:DCD172015 UPC:
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- Furnishes captivating visuals with about 250 cd/m² brightness levels
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details









Recently Viewed
Elo 2202L 22\" Class LED Touchscreen Monitor - 16:9 - 14 ms - 21.5\" Viewable -
Product information summary

About the product
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Fingerprint Scanner
The Biometric Fingerprint Scanner can be attached to provide secure and quick login.
MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Barcode Scanner
Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.
NFC
The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.
One for You. One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
The Elo Advantage | Customization
Elo offers customized solutions with everything from slight modifications to ground up designs. If you need something customized.
Global Reach
Elo products are distributed and available across the globe. Every 21 seconds, an Elo touchscreen is installed somewhere in the world.
Long Life Cycle
We do everything in our power to minimize design changes and we've kept some monitors available to order for over seven years
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- Furnishes captivating visuals with about 250 cd/m² brightness levels
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
- Furnishes staggering touch utilization with astonishing screen execution
Technical Specifications
Built-in Devices | |
Built-in Devices | USB Hub |
Audio | |
Speakers | Yes |
Number of Speakers | 2 |
Power Description | |
Frequency | 50 Hz |
60 Hz | |
Operating Power Consumption | 16.78 W |
Touchscreen Information | |
Touchscreen Type | TouchPro Projected Capacitive |
Multi-touch Screen | Yes |
Number of Simultaneous Touchpoints | 10 |
Interfaces/Ports | |
USB | Yes |
HDMI | Yes |
VGA | Yes |
Number of USB Ports | 4 |
Video | |
Brightness | 250 cd/m² |
Color Supported | 16.7 Million Colors |
Maximum Resolution | 1920 x 1080 |
Native Contrast Ratio | 1,000:1 |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Waste Electrical and Electronic Equipment Directive (WEEE) | |
Restriction of Hazardous Substances (RoHS) | |
China Restriction of Hazardous Substances (China RoHS) | |
General Information | |
Product Type | LED Touchscreen Monitor |
Manufacturer Part Number | E159758 |
Manufacturer Website Address | http://www.elotouch.com |
Manufacturer | Elo Touch Solutions, Inc |
Product Model | 2202L |
Product Name | 2202L 22" Touchscreen Monitor |
Product Series | 02 |
Brand Name | Elo |
Physical Characteristics | |
Weight (Approximate) | 10.47 lb (4749.11 g) |
Height | 12.87" (326.90 mm) |
Width | 20.74" (526.80 mm) |
Depth | 1.68" (42.67 mm) |
Weight with Stand (Approximate) | 14.88 lb (6749.45 g) |
VESA Mount Compatible | Yes |
VESA Mount Standard | 100 x 100 |
Height with Stand | 15.11" (383.79 mm) |
Width with Stand | 20.74" (526.80 mm) |
Depth with Stand | 7.61" (193.29 mm) |
Product Color | Black |
Color Family | Black |
Technical Information | |
Aspect Ratio | 16:9 |
Response Time | 14 ms |
Features | Wide Viewing Angle |
On-screen Display (OSD) | |
Bezel-less Design | |
OSD/Power Lock | |
Anti-glare | |
Mount Type | Wall Mountable |
Shelf Mount | |
Pole Mount | |
Viewable Screen Size | 21.5" |
Screen Mode | Full HD |
Horizontal Viewing Angle | 178° |
Vertical Viewing Angle | 178° |
Backlight Technology | LED |
Panel Technology | Thin Film Transistor (TFT) |
Horizontal Frequency | 30 kHz to 82 kHz |
Vertical Frequency | 50 Hz to 75 Hz |
Screen Size Class | 22" |
Ingress Protection (IP) Rating | IPX1 |
Impact Protection (IK) Rating | IK06 |
Response Time Details | 14ms Typical |
