About the product
The apg VB320-BL1616-B5 Vasario Series standard-duty painted-front cash drawer is made with a Black powder-coated finish that resists wear and corrosion. Designed for storing money at a low- to mid-volume point of sale. This drawer comes with a MultiPRO 320 Interface for all 24V printers and terminals, and a connectivity cable is not included with purchase. Please see the apg connectivity guide for assistance. Hold-downs keep bills securely in place and flip up for inserting or retrieving bills. Two slots allow checks, credit card receipts, or other transaction media to be inserted into the storage area under the till without opening the cash drawer. The cash drawer measures 16.2" x 16.3" x 4.3" inches (W x D x H). (W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back; H is height, the vertical distance from lowest to the highest point.) It measures 3.8" high without feet. Mounting brackets (sold separately) allow the cash drawer to be mounted under a counter to save space. The cash drawer is tested to withstand at least 1 million operations. It has a storage temperature range from -22 to +122 degrees F and an operating temperature range from +32 to +104 degrees F.

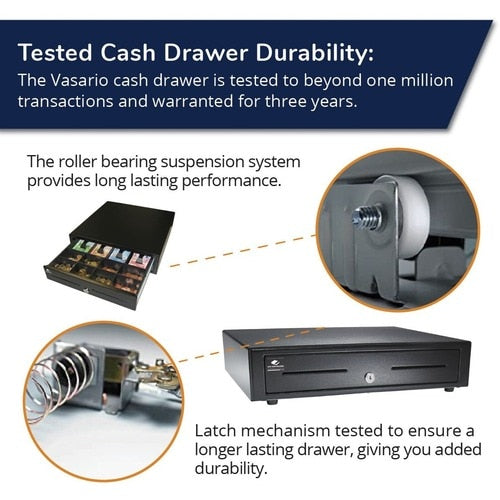

- DURABILITY: This commercial POS standard-duty cash drawer is made of steel for strength and durability. The cash drawer has roller bearings to allow the drawer to slide open and shut. The Vasario Series cash drawer is tested to withstand at least 1 million transactions.

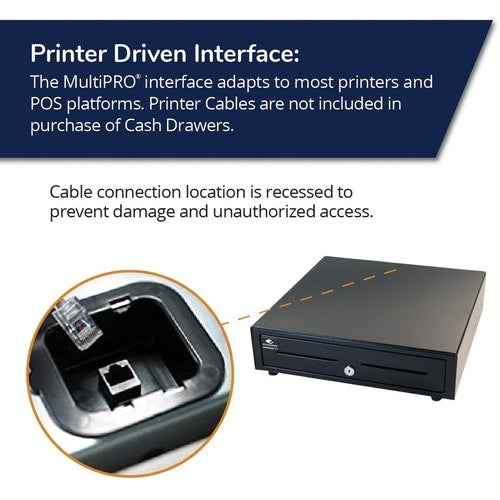

- INTERFACE: Equipped with apg MultiPRO 320 interface that is compatible with all 24V printer driven POS systems. Please note a connection cable is not included with purchase.

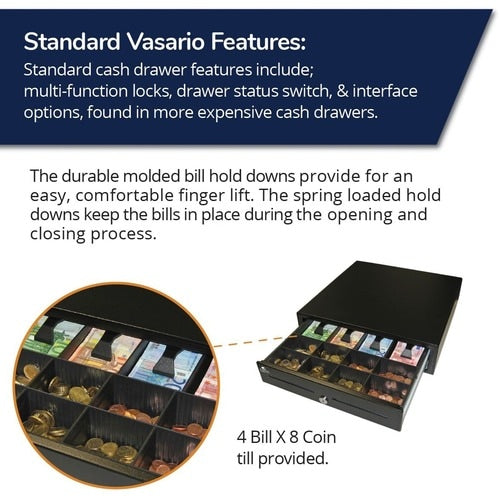

- DESIGN: The all-black drawer comes with a plastic till that has four bill compartments and eight coin compartments for organizing money by denomination. Finished with two media slots for inserting checks
- LOCK SYSTEM: A latch releases the drawer when opened and keeps it securely shut when closed. The four-function lock on the drawer has functions to lock the drawer closed

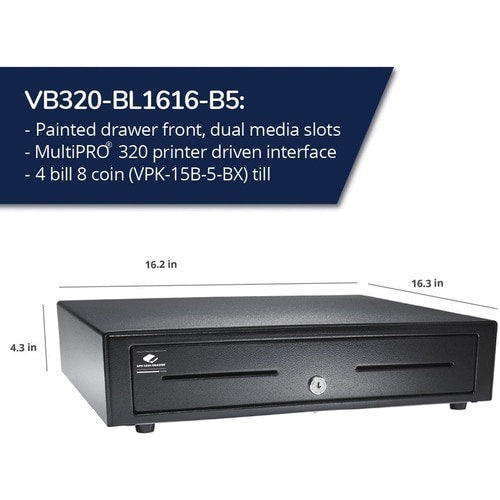

- DIMENSIONS: The apg VB320-BL1616-B5 Vasario Series standard-duty black painted-front cash drawer measures at 16.2" x 16.3" x 4.3". When placed on a counter the drawer is large enough to support a monitor
Technical Specifications
| Interfaces/Ports | |
| Proprietary Interface | MultiPRO |
| Miscellaneous | |
| Country of Origin | South Korea |
| Physical Characteristics | |
| Height | 4.30" (109.22 mm) |
| Width | 16.20" (411.48 mm) |
| Depth | 16.30" (414.02 mm) |
| Product Color | Black |
| Product Material | Stainless Steel |
| Plastic | |
| General Information | |
| Product Type | Cash Drawer |
| Manufacturer Part Number | VB320-BL1616-B5 |
| Manufacturer Website Address | http://www.apgsolutions.com |
| Manufacturer | apg |
| Product Model | 1616 |
| Product Name | Standard- Duty Point of Sale Cash Drawer | Vasario Series VB320-BL1616-B5 |
| Product Line | Genesis |
| Brand Name | apg |
| Technical Information | |
| Features | Multi-function Lock |
| Key Lock | |
| Number of Bill Compartments | 4 |
| Number of Coin Compartments | 8 |
| Number of Trays | 1 |
| Number of Media Slots | 2 |
| Keyed System | Random |
| Drawer Release Type | Electronic |
