About the product

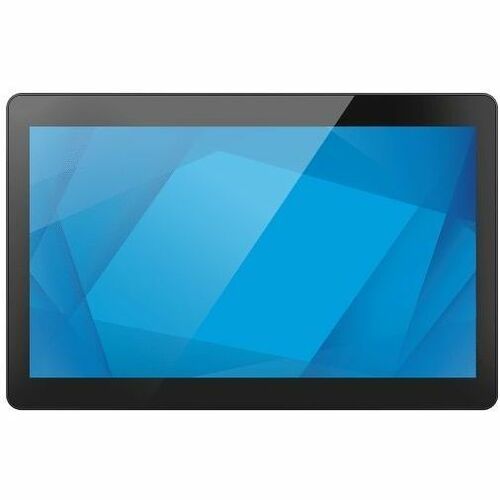

Completely redesigned I-Series 3 with Intel | Brilliant and beautiful, interactive platform
Modular design.Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Inte lvPro and the Windows 10 operating system, the I-Series 3 delivers the dependability businesses need.
- The 16 GB DDR5 SDRAM memory allows you to multitask and run intensive applications lag-free
- 256 GB SSD provides ample space for important documents
- The fanless cooling architecture promotes noise-free
- 15.6" screen size empowers smooth visuals
Technical Specifications
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC 2021 |
| Built-in Devices | |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Miscellaneous | |
| Energy Star | Yes |
| Ingress Protection (IP) Rating | IP54 |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | AC Power |
| DC Power | |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2/PCI Express |
| Physical Characteristics | |
| Weight (Approximate) | 14.08 lb (6386.58 g) |
| Product Color | Black |
| Color Family | Black |
| Processor & Chipset | |
| Processor Type | Core i7 |
| Processor Model | i7-1265UL |
| vPro Technology | Yes |
| Maximum Turbo Speed | 4.80 GHz |
| Technical Information | |
| Features | Edge-to-Edge Glass Design |
| Anti-glare | |
| Form Factor | All-in-One |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Cooling Fan | Fanless |
| General Information | |
| Product Type | POS Terminal |
| Manufacturer Part Number | E706613 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Name | I-Series 3 POS Terminal |
| Product Line | I-Series 3 |
| Brand Name | Elo |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Powered USB | Yes |
| Number of USB 3.0 Ports | 4 |
| Cash Drawer Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of Micro USB Ports | 4 |
| USB Type-C | Yes |
| Number of USB Type C Ports | 1 |
| Display & Graphics | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 25 ms |
| Color Supported | 16.2 Million Colors |
| Screen Size | 15.6" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Touchscreen | Yes |
| Graphics Controller Model | Iris Xe Graphic |
| Display Screen Type | LED |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Panel Technology | In-plane Switching Technology (IPS) |
| Active Display Size (Horizontal) | 13.55" (344.17 mm) |
| Active Display Size (Vertical) | 7.62" (193.55 mm) |
| Number of Simultaneous Touch Points | 10 |
