About the product
- With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
- Bluetooth technology - Allows compatibility with most of your smart devices
Technical Specifications
| Interfaces/Ports | |
| Host Interface | USB |
| Network & Communication | |
| Bluetooth | Yes |
| Miscellaneous | |
| Application/Usage | Manufacturing |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP67 |
| IP65 | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS3678HD3U4210SFWB |
| Manufacturer Website Address | http://www.zebra.com |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS3678-HD |

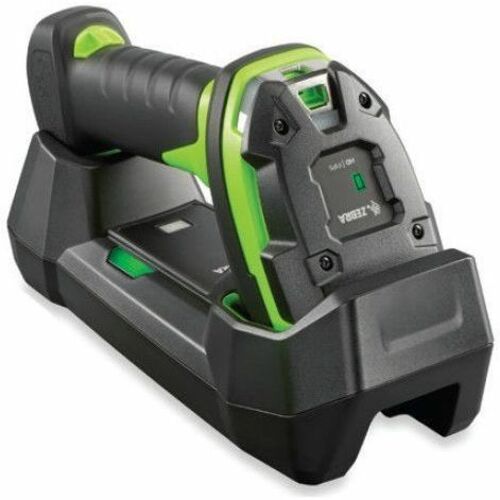

| Product Name | 3600 DS3678-HD Barcode Scanner Kit |
| Product Series | 3600 |
| Brand Name | Zebra |
| Physical Characteristics | |
| Weight (Approximate) | 14.50 oz (411.068085 g) |
| Durability | Dust Proof |
| Spray Proof | |
| Water Proof | |
| Form Factor | Handheld |
| Height | 7.30" (185.42 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.60" (142.24 mm) |
| Product Color | Industrial Green |
| Color Family | Green |
| Rugged | Yes |
| Technical Information | |
| Barcode Symbology Supported | 1D:
2D:
|
| Connectivity Technology | Wireless |
| Light Source | Laser |
| Scanner Range | High Density |
| Drop Specification | Withstands multiple 8.0ft/2.4m drops to concrete |
| Image Sensor Type | Imager |
| Scanning Capability | 1D |
| 2D | |
| Field of View (Horizontal) | 31° |
| Field of View (Vertical) | 23° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 108000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Air Electrostatic Discharge (+/-) | 25kV |
| Contact Electrostatic Discharge (+/-) | 10kV |
| Image Sensor Resolution | 1280 x 960 |
