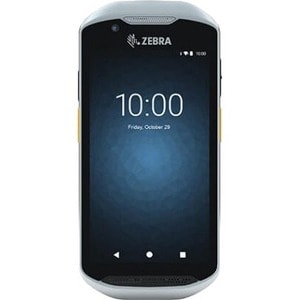

Zebra TC52ax Handheld Terminal - 1D, 2D - SE4720Scan EngineSnapdragon 2.45 GHz -
Zebra TC52ax Handheld Terminal - 1D, 2D - SE4720Scan EngineSnapdragon 2.45 GHz -
VPN:TC520L-1YFMU7T-NA SKU:DCD340055 UPC:
- Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
- Wireless connectivity provides computing versatility throughout the workplace
- 5" Full HD display screen allows you to execute two applications at the same time
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
Zebra TC52ax Handheld Terminal - 1D, 2D - SE4720Scan EngineSnapdragon 2.45 GHz -
Product information summary

About the product
The ultimate in rugged design, performance, productivity and ease of use:
The TC5X Series builds on the best-selling TC52 and TC57 rugged handheld mobile computers, with three models that deliver the ultimate in rugged, all-touch mobile computing. The Wi-Fi only TC52x and the Wi-Fi/cellular TC57x add support for the latest mobile innovations, paving the way for new apps that deliver more value and superior future-proofing - such as payment solutions. Support for more Mobility DNA tools makes everything easier - from the user interface to device management, integration and app development. The Wi-Fi only TC52ax adds Wi-Fi 6, a new scanner option with intelligent focusing, double the memory to boost application performance and the new Workstation Connect solution that allows the TC52ax to function simultaneously as a workstation and a mobile computer. And with LifeGuard 3, keeping all TC5X devices and data secure has never been easier. The TC5X Series - the ultimate rugged mobile computers, redefined.
A user experience in a class of its own:
Powerful advanced scanning for the fastest, easiest data capture:
Available in all models, the SE4720 delivers point-and-shoot simplicity with a large 'sweet spot' of up to 24 in./60 cm away, and easy capture of large barcodes at close range. Available in the TC52ax, the SE5500 Advanced Range Scan Engine with IntelliFocus™ technology intelligently adjusts to quickly capture barcodes in hand or over 40 ft./12 m2 away - ideal for dark stores and front-of-store micro-fulfillment centers. The best-in-class green laser aimer is designed for the extended scanning range. It's up to seven times more visible than a red laser. And instead of the typical aiming dot, the aiming pattern spreads out over several feet.
The result? Easy and accurate point-and-shoot aiming throughout the entire scan range - even in bright sunlight. And no matter which engine you choose, with Zebra's PRZM Intelligent Imaging Technology, you get the performance that has made Zebra the worldwide leader in barcode scanning - dependably fast first-time every-time barcode capture.
Maximize productivity with enterprise accessories
Backwards compatibility with all TC52/TC57 accessories allows you to cost-effectively upgrade to the latest technology. Support is built in for the new generation of payment solutions. And Zebra's HD4000 head-mounted display enables new cutting edge hands-free directed-action workflows.
Easily find misplaced devices
An integrated Bluetooth beacon and support for Device Tracker allows users to quickly and easily locate misplaced or missing devices. And with support for the latest version of Device Tracker, the TC52ax can be located - even if the device is turned off or the battery is dead.
- Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
- Wireless connectivity provides computing versatility throughout the workplace
- 5" Full HD display screen allows you to execute two applications at the same time
- 5" LED screen is ideal for scan intensive applications
- Touchscreen adds an additional hour of efficiency per worker to the workday
- microSD memory card slot can be accessed easily by the user to expand storage
- Expand your data storage option with the microSD card slot
- 4 GB RAM / 64 GB flash memory helps run applications rapidly and stores the mightiest databases
- With integrated Bluetooth module, gadgets such as portable tag printers can be utilized rapidly and effortlessly without cable connections
- Experience the versatility of Bluetooth connectivity with your Zebra Handheld Terminal
- Phone-size form factor is comfortable to utilize in intensive or non-intensive scan environments
- Phone-size form factor - Ideal for offsite pros as it effortlessly fits in hip holsters and vehicle-mounted cradles
Technical Specifications
Battery Information | |
Battery Capacity | 4150 mAh |
Interfaces/Ports | |
USB | Yes |
Software | |
Operating System | Android 11 |
Touchscreen Information | |
Touchscreen | Yes |
Network & Communication | |
Bluetooth | Yes |
Wireless LAN | Yes |
Bluetooth Standard | Bluetooth 5.1 |
Camera | |
Rear Camera | Yes |
Rear Camera Resolution | 13 Megapixel |
Front Camera | Yes |
Front Camera Resolution | 5 Megapixel |
Display & Graphics | |
Screen Resolution | 1920 x 1080 |
Screen Size | 5" |
Screen Mode | Full HD |
Display Screen Type | LED |
Memory | |
Flash Memory | 64 GB |
Standard Memory | 4 GB |
Memory Card Supported | microSD |
SDXC | |
Processor & Chipset | |
Processor Speed | 2.45 GHz |
Processor Type | Snapdragon |
Processor Model | 660 |
Processor Core | Octa-core (8 Core) |
Physical Characteristics | |
Weight (Approximate) | 9.20 oz (260.82 g) |
Form Factor | Phone-size |
Height | 6.26" (159 mm) |
Width | 2.90" (73.66 mm) |
Depth | 0.73" (18.54 mm) |
Rugged | Yes |
General Information | |
Product Type | Handheld Terminal |
Manufacturer Part Number | TC520L-1YFMU7T-NA |
Manufacturer Website Address | http://www.zebra.com |
Manufacturer | Zebra Technologies Corporation |
Product Model | TC52ax |
Product Name | TC52ax Handheld Terminal |
Product Series | TC5X |
Brand Name | Zebra |
Technical Information | |
Connectivity Technology | Wireless |
Sensor Type | Magnetometer |
Proximity | |
Motion Sensor | |
Light Sensor | |
Image Sensor Type | Imager |
Scan Engine Model | SE4720 |
Scanning Capability | 1D |
2D | |
Miscellaneous | |
Application/Usage | Field Sales/Service |
Direct Store Delivery (DSD) | |
Courier Service | |
Government | |
Warehouse | |
Retail | |
Public Safety | |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Restriction of Hazardous Substances (RoHS) |
