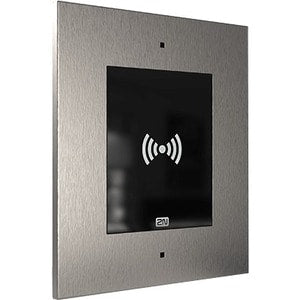

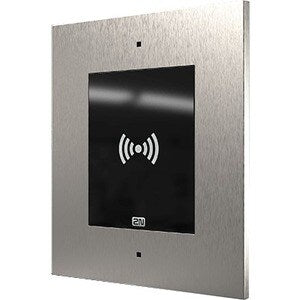

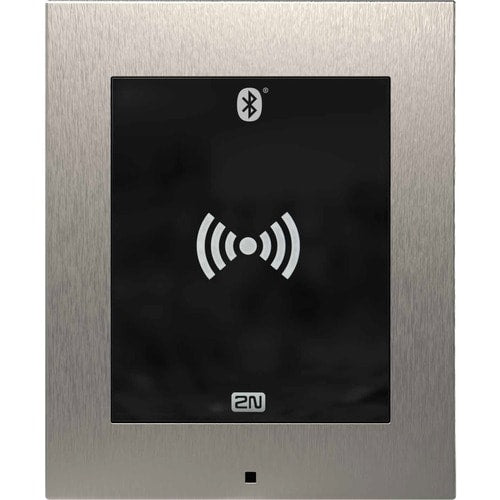

2N Access Unit 2.0 RFID MultiFrequency - Nickel, Black Residential

Name: 2N Access Unit 2.0 RFID MultiFrequency - Nickel, Black Residential
Brand: Axis Communications
SKU: DCD559461
Availability: OutOfStock

$0.00 CAD

~~$0.00 CAD~~ $0.00 CAD

-Liquid error (snippets/price line 128): divided by 0% OFF Ask for quote

Shipping calculated at checkout.

2N Access Unit 2.0 RFID MultiFrequency - Nickel, Black Residential

VPN:02146-001 SKU:DCD559461 UPC:

Ideal for residential projects
Fastest Bluetooth technology
You don't need a controller

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

2N Access Unit 2.0 RFID MultiFrequency - Nickel, Black Residential

About the product

Do you need a good-looking access reader for your project? All the residents of luxury residences will be delighted with the 2N Access Unit 2.0. Select modern access with a mobile phone or fingerprint. Do you prefer conventional methods? We also o er an RFID card reader or keypad. Cannot decide? Select a combination of several methods in one device. But don't look for controllers in our portfolio. They are already an integral part of every reader.

Ideal for residential projects
Fastest Bluetooth technology
You don't need a controller
Quick installation and remote administration
Flush mount or installation on glass
Timeless solution

Technical Specifications

Miscellaneous
Additional Information	Power supply: PoE and/or 12 V/1 A DC PoE: 802.3af (Class 0-12.95 W) LAN: 10/100BASE-TX with Auto-MDIX, RJ-45 modular jack Recommended cabling: Cat-5e or better Active switch output: 8 to 12 V DC/max 600 mA Passive switch: NO/NC contacts, up to 30 V/1 A AC/DC Tamper switch: native part of the 2N Access Unit 2.0 Audio: buzzer (97dBA) Supported protocols: DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog Frame: robust zinc cast frame with surface finish (nickel and black color) Operating temperature: -40°F to +140°F Storage temperature: -40°F to +158°F Operating relative humidity: 10%-95% (non-condensing) Supported frequencies: 125 kHz variant 13.56 MHz variant 125 kHz and 13.56 MHz variant 125 kHz: EM4100 EM4102 HID Prox 13.56 MHz: ISO14443A, ISO14443B, NFC support reads UID (CSN) reads PACs ID (HID iClass cards with SIO object) Inputs: 2 inputs - in passive/active mode (-30 V to +30 V DC) OFF = open or Uin> 1.5 V ON = short-circuit or Uin< 1.5 V Dimensions: Wall (surface) mounting frame: 1 module: 4.2 (W) x 5.11 (H) x 1.10 (D) inch Flush mounting frame: 1 module: 5.11 (W) x 6.02 (H) x 0.19 (D) inch Flush mounting box (minimum hole): 1 module: 4.25 (W) x 5.15 (H) x 1.77 (D) inch
Compatibility	Axis 2N Access Control Unit Axis 2N HID Prox Proximity Card Axis 2N Card Readers: EM4100 EM4102
Certifications & Standards	IP54 IK08
General Information
Product Type	Card Reader Access Device
Manufacturer Part Number	02146-001
Manufacturer Website Address	http://www.axis.com
Manufacturer	Axis Communications
Product Name	Access Unit 2.0 RFID MultiFrequency
Brand Name	2N
Physical Characteristics
Weight (Approximate)	798.3 g
Product Color	Black
	Nickel
Color Family	Dual Color
Product Material	Glass
	Zinc
Technical Information
Application/Usage	Residential
Features	Bluetooth
	Easy Installation
	Wall Mountable
	Tamper Switch
	Flush Mount
	Robust
	RFID Card Reader
	PoE
	Surface Mount
