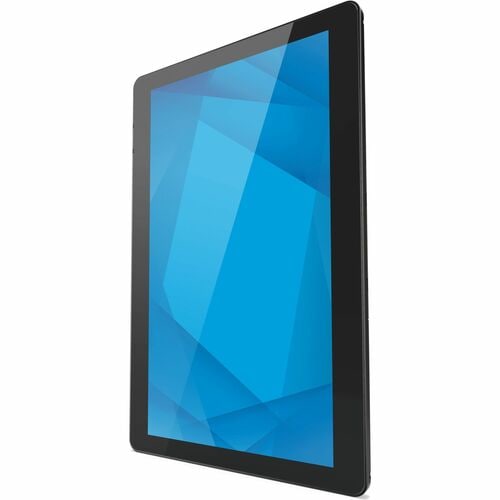

About the product
Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, securityand performance.
Built with the reliability-tested performance and security of Intel 12thGeneration processors, integrated Trusted Platform Modules, IntelvPro and the Windows 10 operating system, the I-Series 3 deliversthe dependability businesses need.
Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
Supportfor Linux.
For added flexibility, the I-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
EloBridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridgeis the perfect solution. Simply choose the EloWindows device that fits your needs today, andwhen you are ready to transition to Android, youcan use Elo Bridge to migrate your fleet of devices.
Get peace of mindwith EloCare.
- Advance Unit Replacement
- Extended Warranty
- Professional Services
- With 8 GB DDR5 SDRAM of memory
- The 23.8" diagonal display empowers you to work on your terminal with suitability
- Touchscreen interface empowers quick access
- The Intel Core i5 4.40 GHz processor offers an ultra-efficient architecture to avoid apparent delays during multitasking and thus increase productivity
- 256 GB SSD provides ample space for important documents
- The fanless cooling architecture promotes noise-free
Technical Specifications
| Built-in Devices | |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Miscellaneous | |
| Energy Star | Yes |
| Ingress Protection (IP) Rating | IP54 |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | DC Power |
| AC Power | |
| Physical Characteristics | |
| Weight (Approximate) | 14.80 lb (6713.17 g) |
| Product Color | Black |
| Color Family | Black |
| Storage | |
| Flash Memory Capacity | 128 GB |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2 |
| Processor & Chipset | |
| Processor Speed | 4.40 GHz |
| Processor Type | Core i5 |
| Processor Model | i5-1245UL |
| Processor Cache | 12 MB |
| Processor Manufacturer | Intel |
| Technical Information | |
| Features | Edge-to-Edge Glass Design |
| Form Factor | All-in-One |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Cooling Fan | Fanless |
| General Information | |
| Product Type | POS Terminal |
| Manufacturer Part Number | E608662 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Name | I-Series 3 POS Terminal |
| Product Line | I-Series 3 |
| Brand Name | Elo |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Powered USB | Yes |
| Number of USB 3.0 Ports | 4 |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| USB Type-C | Yes |
| Number of USB Type C Ports | 1 |
| Display & Graphics | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 16 ms |
| Color Supported | 16.7 Million Colors |
| Screen Size | 23.8" |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Touchscreen | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Xe Graphics |
| Display Screen Type | LED |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Panel Technology | In-plane Switching Technology (IPS) |
| Active Display Size (Horizontal) | 20.75" (527.05 mm) |
| Active Display Size (Vertical) | 11.67" (296.42 mm) |
| Number of Simultaneous Touch Points | 10 |
