Data Capturing Devices

Expected delivery 3 to 7 business days (exceptions applied)

Zebra

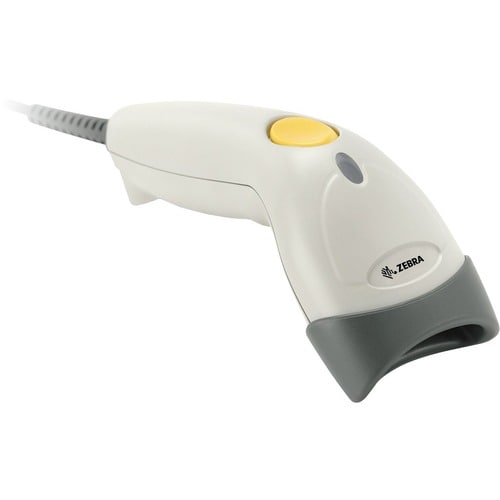

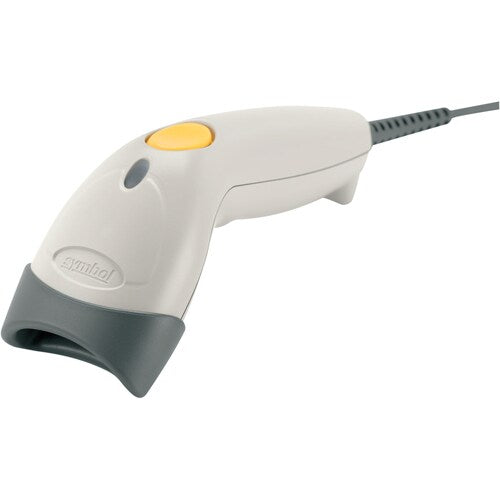

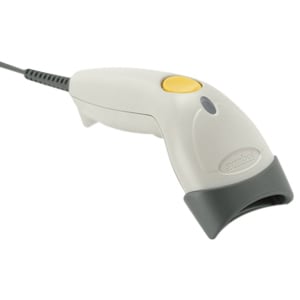

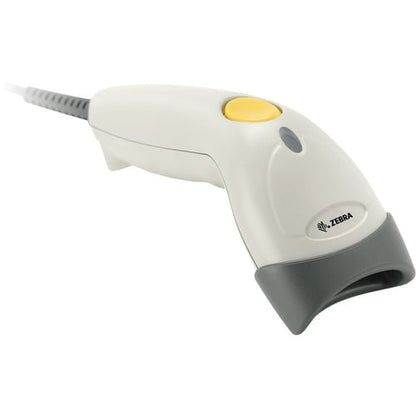

Zebra LS1203 Bar Code Reader - Wired - Linear

Zebra LS1203 Bar Code Reader - Wired - Linear

Regular price $0.00 CAD
Regular price $0.00 CAD Sale price $0.00 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Ask for quote
Shipping calculated at checkout.
Zebra LS1203 Bar Code Reader - Wired - Linear

VPN:LS1203-7AZU0100ZR SKU:DCD658469 UPC:

  • Powerful laser scan source provides 100 scan/s decode rate
  • Scan barcodes with a staggering speed of 100 scan/s

Volume discount available - Ask for quote..

View full details

Recently Viewed

Zebra LS1203 Bar Code Reader - Wired - Linear

Product information summary

Zebra LS1203 Bar Code Reader - Wired - Linear

About the product

The Zebra LS1203 handheld scanner delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Zebra the global leader in handheld bar code scanning.


Increased productivity from the start

For point of sale check-out applications, the LS1203 provides the power to improve operational efficiencies right out of the box. The plug-and-play design virtually eliminates installation hassles. The intui-tive ergonomic design eliminates training requirements - employees are up and running in minutes.

Manual keying is eliminated, reducing cashier errors and ensuring that your customers are charged the co-rrect amount. The result is faster checkout, increased customer satis-faction and a quick return on investment. In the back room, the LS1203 automates paper-based processes, such as inventory management, translating into more accurate information and less time spent on day-to-day administrative tasks - and more time spent serving customers.

Durable construction combined with future-proofing

With a single board construction and durable scan element, the LS1203 can easily stand up to daily use and those inevitable drops. With everyday operation you can count on, the LS1203 ensures mini-mal maintenance costs and maximum uptime. And integrated multiple interfaces provide the investment protection you need to ensure that the scanner you buy today will work with tomorrow's POS system.

Proven quality you can trust

When you choose the LS1203, you receive the added assurance of purchasing a product from Zebra - the global leader in handheld bar code scanning with millions of scanners in use every day by the world's largest retailers worldwide. And since even the most durable products require a maintenance plan and support strategy, Zebra has designed a full complement of service offerings to help you protect your investment and maintain peak performance.


  • Powerful laser scan source provides 100 scan/s decode rate
  • Scan barcodes with a staggering speed of 100 scan/s

Technical Specifications

Interfaces/Ports
Host InterfaceUSB
Power Description
Input Voltage5 V DC
Miscellaneous
Additional InformationUSB - 4 pin USB Type A Cable

USB Cable separate

Package Contents
  • Symbol LS1203-7AZU0100ZR
  • USB Type-A Cable
Certifications & Standards

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • Taiwan EMC
  • Japan VCCI/MITI/Dentori

Laser Safety:

  • IEC Class 1

Environmental:

  • RoHS
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
General Information
Product TypeBarcode Scanner
Manufacturer Part NumberLS12037AZU0100ZR
Manufacturer Website Addresshttp://www.zebra.com
ManufacturerZebra Technologies Corporation
Product ModelLS1203
Product NameLS1203 Handheld Barcode Scanner
Brand NameZebra
Physical Characteristics
Weight (Approximate)4.30 oz (121.90 g)
Form FactorHandheld
Height2.40" (60.96 mm)
Width2.40" (60.96 mm)
Depth7.10" (180.34 mm)
Product ColorBlack
Color FamilyBlack
Technical Information
Barcode Symbology Supported
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS Variants
  • Chinese 2 of 5
Connectivity TechnologyCable
Light SourceLaser
Depth of Field
  • 0.5" - 4"@5mil
  • 0" - 6"@7.5mil
  • 0" - 7.5"@10mil
  • 0" - 8"@13mil - 100% UPC
  • 0" - 10"@20mil
Scan PatternBi-directional
Scan Rate100 scan/s
Image Sensor TypeLinear
Scanning Capability1D

Product compare

Product warranty

Standard manufacturer warranty as applicable

Return policy

15 days return in original condition.

Price guarantee

!00% we are always lower than market price.
