About the product

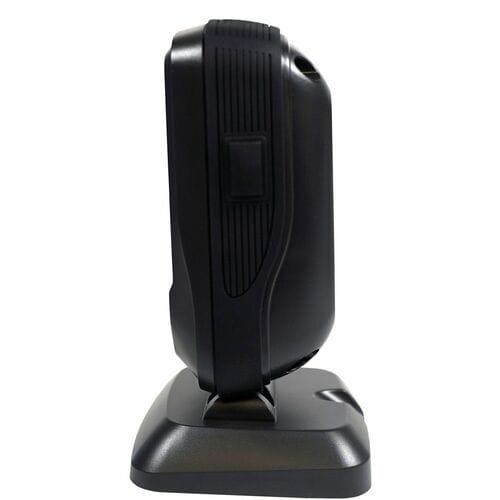

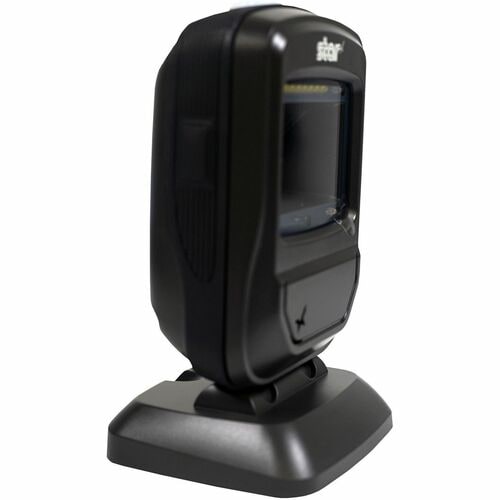

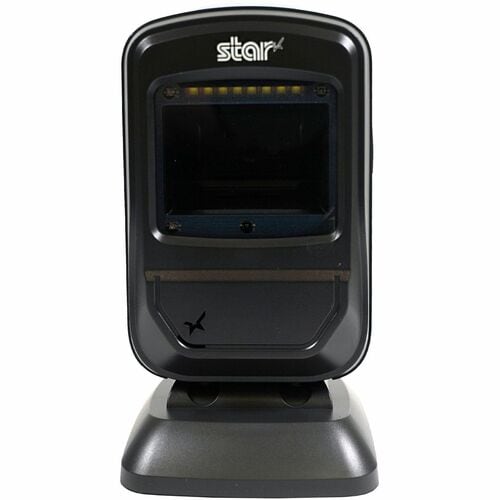

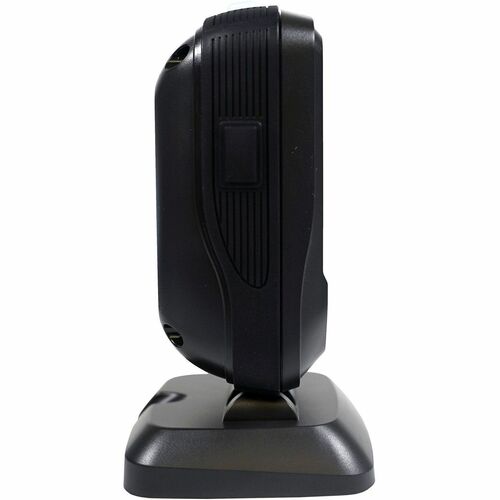

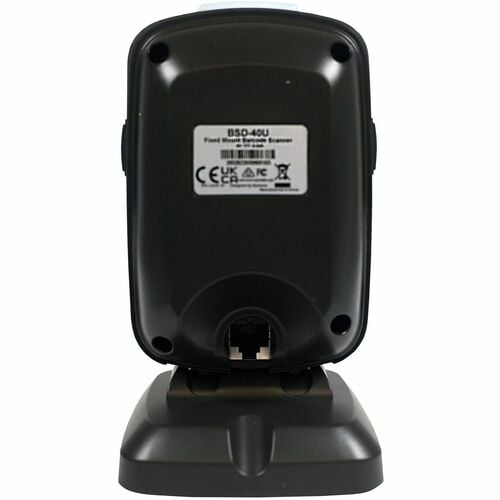

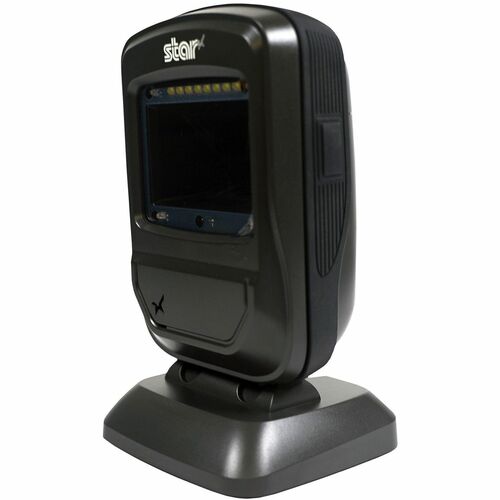

Premium USB Desktop Barcode Scanner
The BSD-40U is a top-tier 2D desktop barcode scanner, blending high performance with reliable design. It efficiently and accurately reads 1D and 2D barcodes on a variety of surfaces, including paper, uneven media, and digital screens. This scanner's advanced technology extends to reading and parsing data from IDs and driver's licenses, making it versatile for age verification and other diverse business needs. It features exceptional motion tolerance and an IR sensor for fast scanning in multiple modes. With an IP52-rated construction, the BSD-40U is built for durability and comes with a 2-year warranty with options to extend. Sleek and versatile, it's compatible with iOS, Android, and Windows platforms and plugs directly into any of Star'smCollection®products, making it a perfect fit for any business seeking reliable POS hardware solutions.
- Perfect for applications that require direct association with a workstation or a notebook
- LED aimer is a perfect choice for patient-facing applications
- Laser-free design provides high-performance scanning without the risk of eye injury
Technical Specifications
| Interfaces/Ports | |
| Host Interface | USB |
| Serial | |
| General Information | |
| Product Type | Barcode Scanner |
| Manufacturer Part Number | 37950900 |
| Manufacturer Website Address | http://www.starmicronics.com |
| Manufacturer | Star Micronics, Inc |
| Product Model | BSD-40U |
| Product Name | BSD-40U Desktop 1D/2D Barcode Scanner |
| Brand Name | Star Micronics |
| Physical Characteristics | |
| Weight (Approximate) | 10.48 oz (297 g) |
| Durability | Dust Resistant |
| Form Factor | Desktop |
| Length | 3.23" (82 mm) |
| Height | 5.79" (147 mm) |
| Width | 3.15" (80 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Application/Usage | Retail |
| Hospitality | |
| Healthcare | |
| Compatibility | Star Micronics:
|
| Platform Supported | Android |
| iOS | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP52 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Technical Information | |
| Barcode Symbology Supported | 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec 1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS) |
| Connectivity Technology | Cable |
| Scanning Distance | 8.66" (220 mm) |
| Light Source | LED |
| Drop Specification | 1.2m drop Resistance |
| Depth of Field |
|
| Image Sensor Type | CMOS |
| Illumination Type | LED |
| Scan Mode | Trigger |
| Illumination Color | White |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 51° |
| Field of View (Vertical) | 32° |
| Reading Angle (Skew) | 45° |
| Reading Angle (Pitch) | 50° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 98.43 in/s (2500 mm/s) |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Air Electrostatic Discharge (+/-) | 14kV |
| Contact Electrostatic Discharge (+/-) | 8kV |
| Image Sensor Resolution | 1280 x 800 |
