About the product

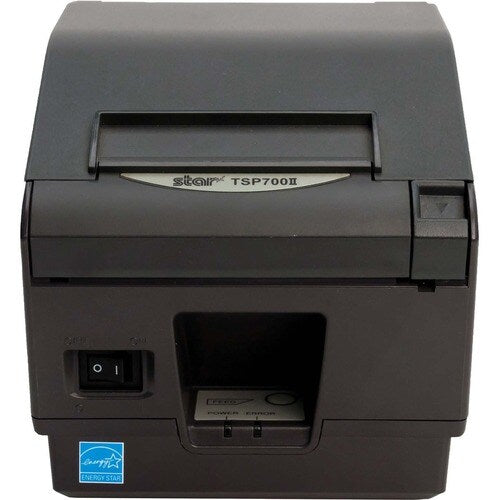

Featuring a fast print speed, a multitude of connectivity options, and a splash- and dust-proof design, the TSP743II is one of the industry's most powerful, reliable, and connected printers. Adaptable to any business, the printer may also be vertically mounted and includes black mark label support.
- High-speed thermal receipt and label printer
- Parallel
- Ultra-high-speed: 250mm/sec
- Up to 0.15mm paper thickness
- Black mark label support
- Rear paper feed
- Vertically mountable
- Gray color
Technical Specifications
| Fonts & Emulation | |
| Language Emulation | ESC/POS |
| Interfaces/Ports | |
| Parallel Port | Yes |
| Memory | |
| Flash Memory | 16 MB |
| Cutter | |
| Cutting Method | Automatic |
| Cutter | Yes |
| Power Description | |
| Input Voltage | 24 V DC |
| Power Source | Power Adapter |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Platform Supported | Mac |
| PC | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 3.86 lb (1750 g) |
| Height | 5.83" (148 mm) |
| Width | 5.79" (147 mm) |
| Depth | 8.39" (213 mm) |
| Product Color | Gray |
| Color Family | Gray |
| Media Types & Handling | |
| Media Thickness | 5.9 mil (0.15 mm) |
| Maximum Roll Diameter | 3.9" (100 mm) |
| Media Type | Label |
| Receipt | |
| Media Sensor | Out Of Paper Sensor |
| Reflective Media Sensor | |
| Maximum Label Width | 3.15" (80 mm) |
| General Information | |
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | 39442210 |
| Manufacturer Website Address | http://www.starmicronics.com |
| Manufacturer | Star Micronics, Inc |
| Product Model | TSP743IIC GRY |
| Product Name | TSP700II TSP743IIC GRY POS Thermal Label Printer |
| Product Series | TSP700II |
| Brand Name | Star Micronics |
| Technical Information | |
| Application/Usage | Desktop |
| Barcode Symbology Supported | PDF-417 |
| QR Code | |
| Maxi Code | |
| Number of Columns | 71 |
| Maximum Print Width | 2.83" (72 mm) |
| Recommended Use | Label Print |
| Features | Splash Proof |
| Dust Proof | |
| Print Technology | Direct Thermal |
| Installation | Vertical |
| Print Color Capability | Monochrome |
| Maximum Print Resolution (dpi) | 406 x 203 |
