About the product

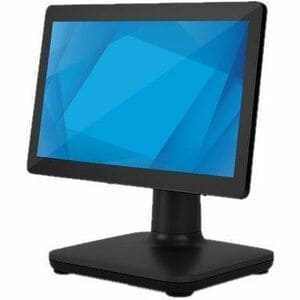

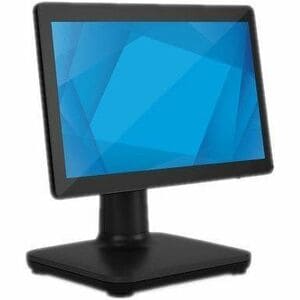

Purpose-built for point of sale, the E-Series 2 offers a 15.6-inch touchscreen display, Intel's 8th generation Celeron processor and an integrated expansion hub to connect the peripherals you need.
Expand withElo Edge Connect.™
Seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Add a customer-facing display with ease.
The E-Series 2 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.
Connect all of your POS accessories.
Integrated into the base of the stand, the expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all.
Windows or Linux.You choose.
The E-Series 2 utilizes the reliability-tested performance and security of Intel's 8th Generation Celeron processor, integrated Trusted Platform Modules and the Windows 10 operating system. For added flexibility, the E-Series 2 offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
A POS system you can count on.
Rigorously tested and backed by a three-year warranty. With splash-proof housing and a rugged retail-hardened design, the E-Series 2 can withstand the adverse conditions associated with most commercial environments.
- 4 GB memory to handle complex applications simultaneously
- Touchscreen interface enables swift access
- Experience a responsive performance and adaptability with Intel Celeron 2.70 GHz processor
- 128 GB SSD provides enough space for all your files
- 15.6" screen size empowers smooth visuals
Technical Specifications
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Built-in Devices | |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | DC Power |
| AC Power | |
| Storage | |
| Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | M.2/SATA |
| Technical Information | |
| Features | Edge-to-Edge Glass Design |
| Form Factor | All-in-One |
| Physical Characteristics | |
| Weight (Approximate) | 10.40 lb (4717.36 g) |
| Product Color | Black |
| Color Family | Black |
| Processor & Chipset | |
| Processor Speed | 2.70 GHz |
| Processor Type | Celeron |
| Processor Model | J4125 |
| Processor Cache | 4 MB |
| General Information | |
| Product Type | POS Terminal |
| Manufacturer Part Number | E136131 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Name | E-Series 2 POS system |
| Product Series | E |
| Brand Name | Elo |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Powered USB | Yes |
| Number of USB 3.0 Ports | 3 |
| Cash Drawer Port | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| USB Type-C | Yes |
| Number of USB Type C Ports | 1 |
| Display & Graphics | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 400:1 |
| Response Time | 10 ms |
| Color Supported | 266,144 Colors |
| Screen Size | 15.6" |
| Horizontal Viewing Angle | 90° |
| Vertical Viewing Angle | 50° |
| Touchscreen | Yes |
| Graphics Controller Model | UHD Graphics 600 |
| Display Screen Type | LED |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Active Display Size (Horizontal) | 13.55" (344.17 mm) |
| Active Display Size (Vertical) | 7.62" (193.55 mm) |
| Number of Simultaneous Touch Points | 10 |
Product compare
Product warranty
Standard manufacturer warranty as applicable
Return policy
15 days return in original condition.
Price guarantee
!00% we are always lower than market price.
