Zebra
Zebra AN620 RFID Antenna - 864 MHz to 868 MHz, 902 MHz to 928 MHz - 4 dBi - RFID
Zebra AN620 RFID Antenna - 864 MHz to 868 MHz, 902 MHz to 928 MHz - 4 dBi - RFID
VPN:AN620-SCL71130EU SKU:DCD817709 UPC:
- With its wall mounting feature, you can conveniently install the antenna while keeping the wires and cables organized
- Get enhanced signals for your rfid with this antenna
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
Zebra AN620 RFID Antenna - 864 MHz to 868 MHz, 902 MHz to 928 MHz - 4 dBi - RFID
Product information summary

About the product

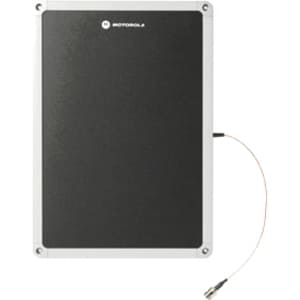

When your application calls for a "picture-frame" aesthetic antenna deployment, look to one of the newest ultra-low profile members of the Motorola family - the AN620 slim line antenna. The AN620 features a simple, integrated mounting system that lets it stand just under one-half inch (12mm) from horizontal or vertical mounting surfaces. Space-saving and stylish, the outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments. A perfect complement to the FX7400 RFID reader, the AN620 antenna is ideally suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications.
- With its wall mounting feature, you can conveniently install the antenna while keeping the wires and cables organized
- Get enhanced signals for your rfid with this antenna
Technical Specifications
Interfaces/Ports | |
Connector Type | N-Type |
Miscellaneous | |
Application/Usage | RFID |
Compatibility | Motorola FX7400 RFID Reader |
Physical Characteristics | |
Weight (Approximate) | 997.9 g |
Form Factor | Wall Mount |
Height | 15.39" (390.91 mm) |
Width | 10.82" (274.83 mm) |
Depth | 0.47" (11.94 mm) |
Technical Information | |
Polarization | Left-handed Circular |
Frequency Band Type | UHF |
Operating Frequency Range | 864 MHz to 868 MHz |
902 MHz to 928 MHz | |
Antenna Gain (Isotropic) | 4 dBi |
General Information | |
Product Type | Antenna |
Manufacturer Part Number | AN620-SCL71130EU |
Manufacturer Website Address | http://www.zebra.com |
Manufacturer | Zebra Technologies Corporation |
Product Model | AN620 |
Product Name | AN620 RFID Antenna |
Brand Name | Zebra |
