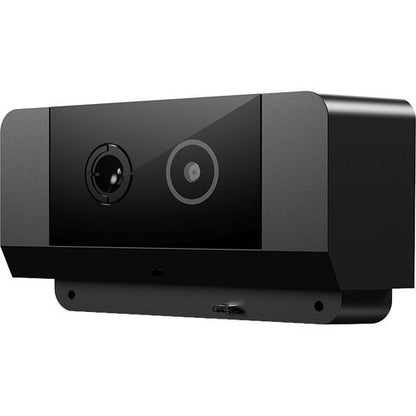

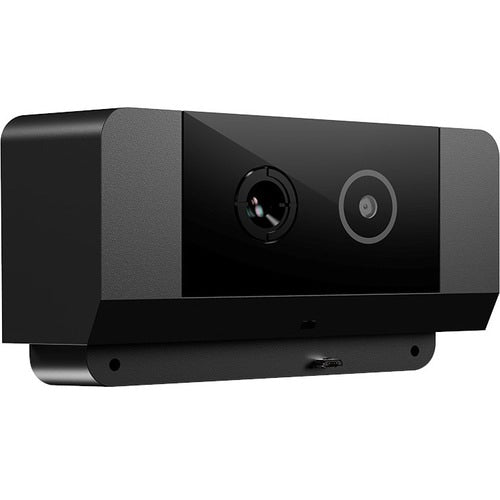

Elo Temperature Sensor Pro - 3\" (76.20 mm) Height x 5.50\" (139.70 mm) Width x

Temperature Screening, Simplified.

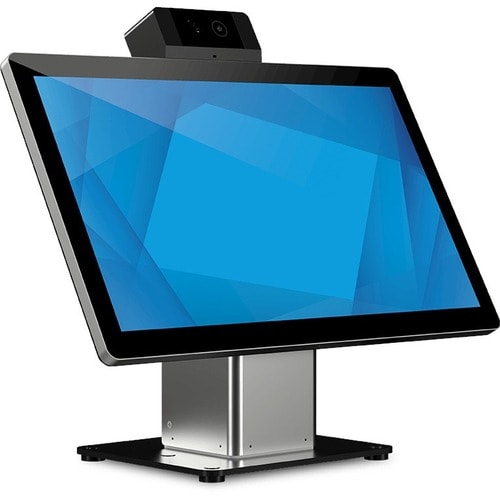

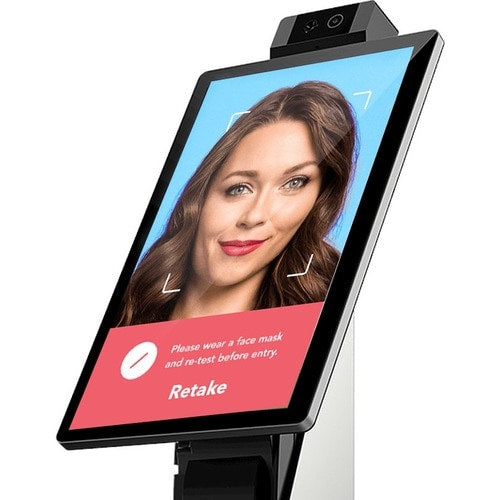

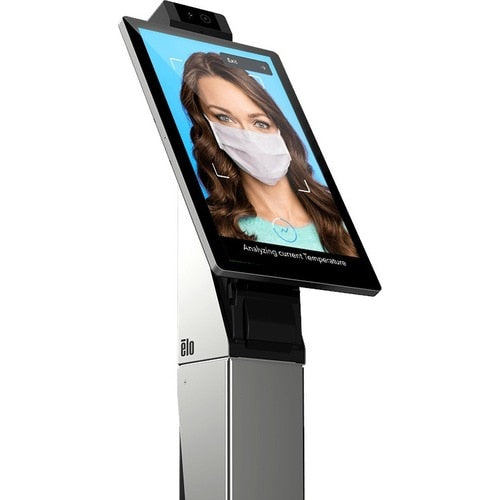

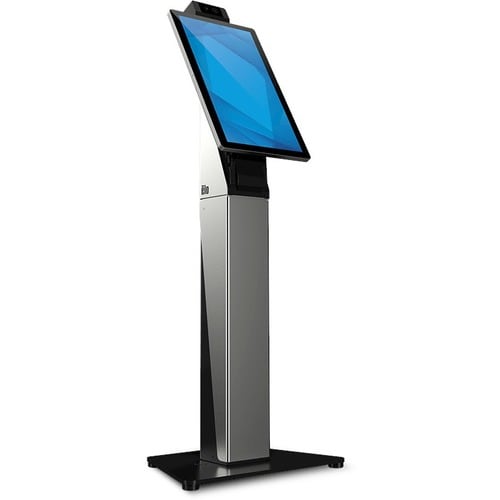

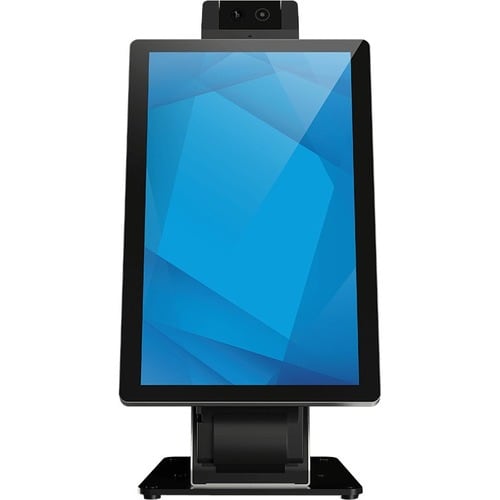

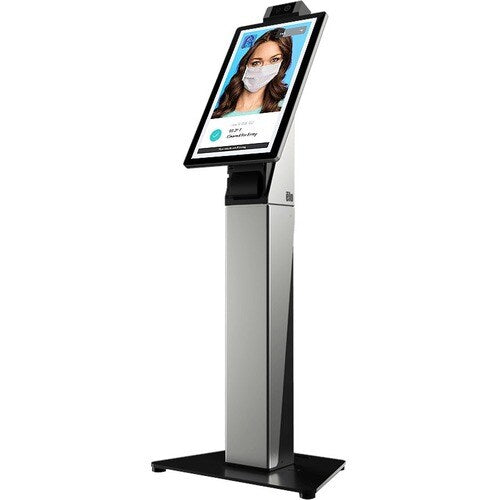

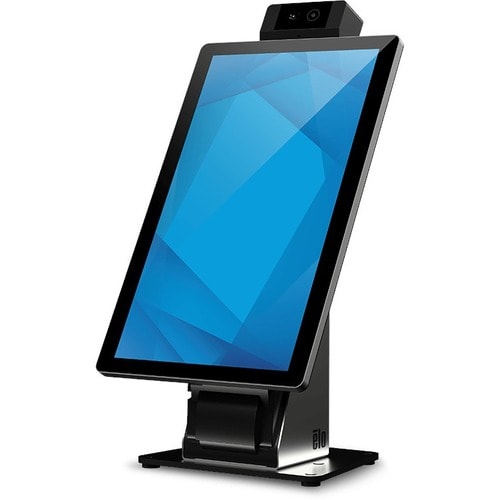

With social distancing and preventative measures being critical, organizations are implementing enhanced safety protocols to help ensure their premises are safer. Elo's modular temperature screening hardware supports these efforts. From check-in to access control, simply pair Elo's Temperature Sensor with a variety of displays, stands and 3rd-party software to create a contactless self-service solution purpose-built to streamline security administration and increase safety.

Benefits | Reduce Risk

Control access to public spaces by potentially high-risk individuals.

Automated Screening

Protect human resources from handling the screening process by leveraging self-service temperature kiosks.

Simplified Management

Deploy and securely manage an entire network of Elo Android-powered devices remotely with EloView - deploy content, manage settings and maintain the OS.

Modular Capability

Configure and adapt Elo's self-service solutions with ease as needs change.

How it Works

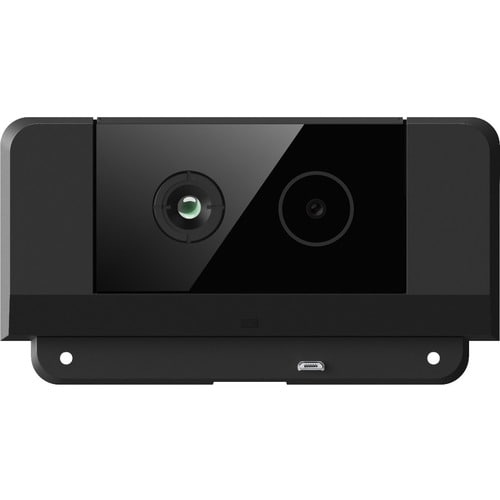

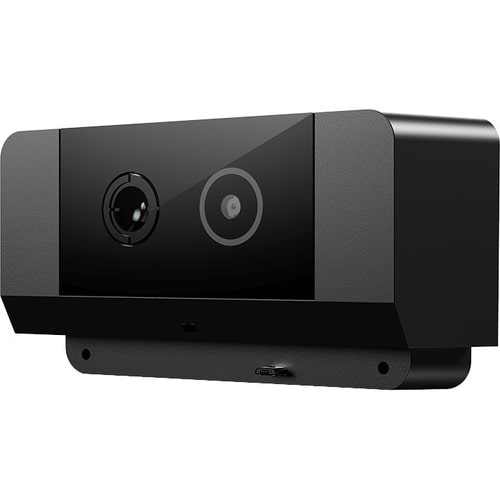

Utilizing an infrared bolometer (thermometer) and 2D camera, the Temperature Sensor Pro offers heatmap temperature reading up to 40" away with an optimal distance of 24". With no alignment needed, the temperature sensor can detect faces, automatically adjust based on height and output temperature data for each person detected in the field of view (FOV).

Detect Individuals

The sensor can automatically detect whether a person is ready to be checked and with built-in intelligence, the sensor will adjust positioning based on the person's height.

Scan

Distance - Read temperature as far as 40" away
Instant Results - Get results within 1 second
Accuracy - Measured within +/- .5° C

Deliver Rapid Results

Allow personnel and guests to flow through quickly with a variety of access options. By using the data output from the temperature sensor, staff can rapidly identify whether it is appropriate for someone to proceed.

Software Integration Ready

Elo's software-agnostic platform can easily integrate into Android- or Windows-powered applications. By leveraging Elo's Temperature Sensor SDK, partners can create seamless communication between their software and Elo hardware.

Power Description
Power Source	USB
Miscellaneous
Application/Usage	Digital Signage
	Social Distance
	Touchscreen Monitor
Package Contents	IR Camera 2 x Mounting screws 2 x Mylar screw covers 1 x Extended Micro-USB cable QIG
Compatibility	Elo Devices: 10-, 15-, 22-inch AiO I-Series for Android 15-, 22-inch AiO I-Series for Windows (2.0) 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L Touchscreen Monitors 3202L, 4202L, 4602L, 5502L Touchscreen Signage
Physical Characteristics
Weight (Approximate)	317.5 g
Height	3" (76.20 mm)
Width	5.50" (139.70 mm)
Depth	2" (50.80 mm)
Product Color	Black
General Information
Product Type	Temperature Screening Terminal
Manufacturer Part Number	E534879
Manufacturer Website Address	http://www.elotouch.com
Manufacturer	Elo Touch Solutions, Inc
Product Name	Temperature Sensor Pro
Brand Name	Elo

Standard manufacturer warranty as applicable

15 days return in original condition.
