About the product
Introduction

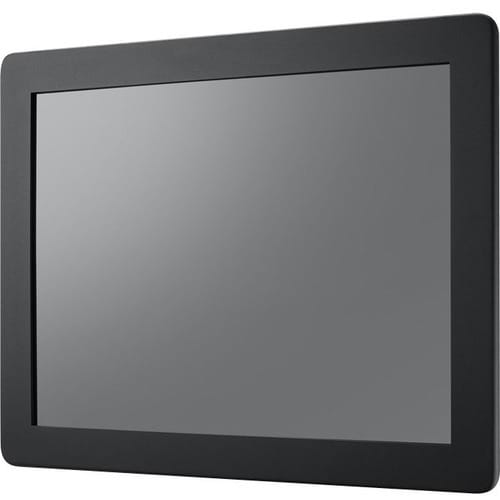

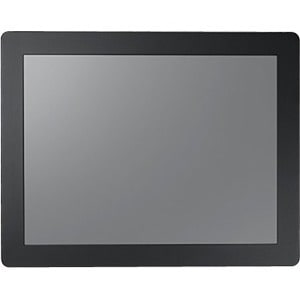

The Advantech IDS-3315 Front IP65 Monitor Series offer waterproof and dustproof design supporting a 15" 1024 x 768 pixels TFT LCD screen, with -20 ~ 60? wide operating temperature, and optional touch touchscreens. The series supports rear and VESA mounting and is ideal for different embedded applications in different environments.
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- View your content easily in well-lit areas with 1200 cd/m² brightness

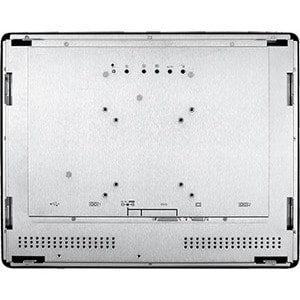

- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 1200 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1024 x 768 |
| Native Contrast Ratio | 2,000:1 |

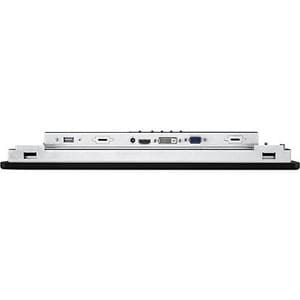

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 9.92 lb (4500 g) |
| Height | 11.46" (291 mm) |
| Width | 14.37" (365 mm) |
| Depth | 1.81" (46 mm) |
| VESA Mount Compatible | Yes |
| Technical Information | |
| Response Time | 23 ms |
| Mount Type | Rear Mount |
| Panel Mount | |
| Viewable Screen Size | 15" |
| Screen Mode | XGA |
| Backlight Technology | LED |
| Screen Size Class | 15" |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3315G-1KXGA1 |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3315G-1KXGA1 |
| Product Name | IDS-3315G-1KXGA1 Touchscreen LCD Monitor |
| Product Series | IDS-3315 |
| Brand Name | Advantech |
