Elo

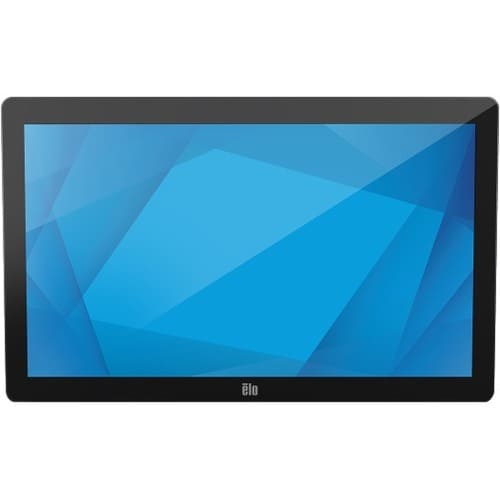

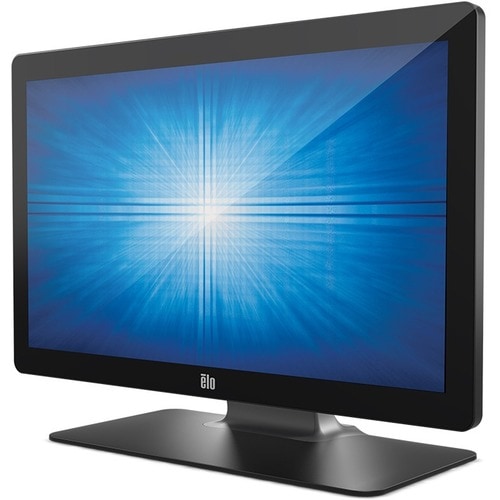

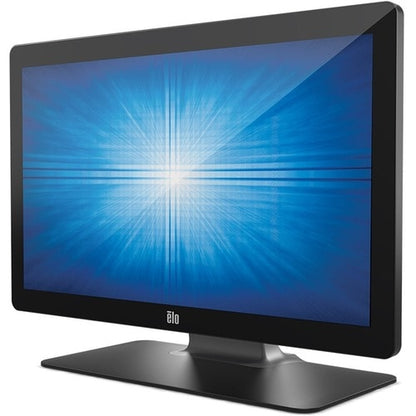

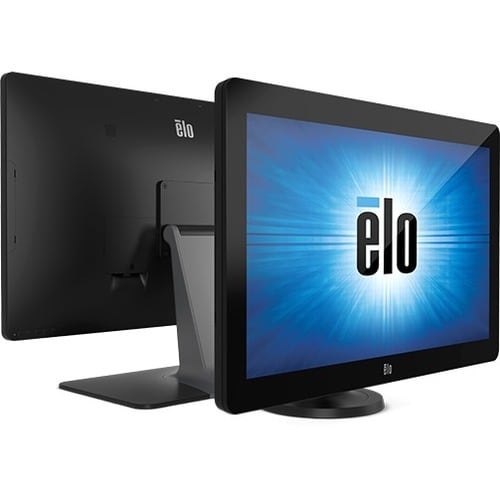

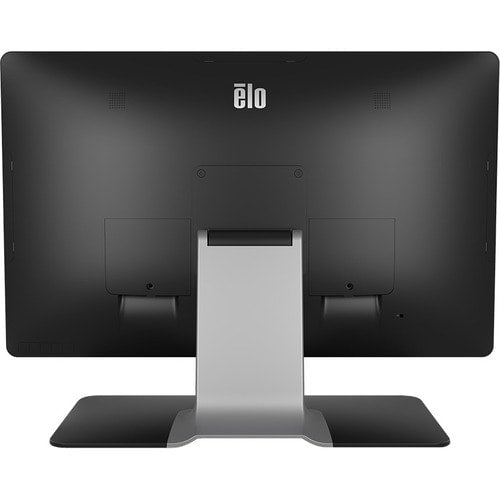

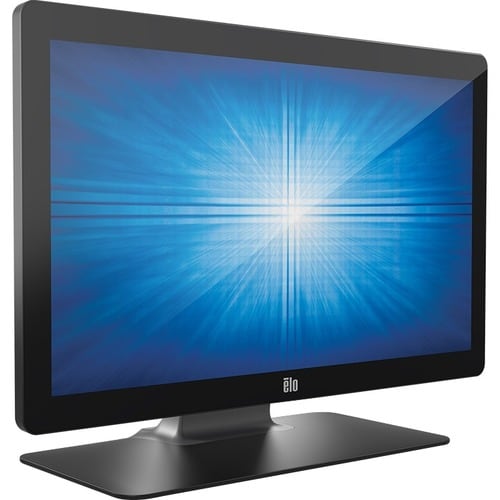

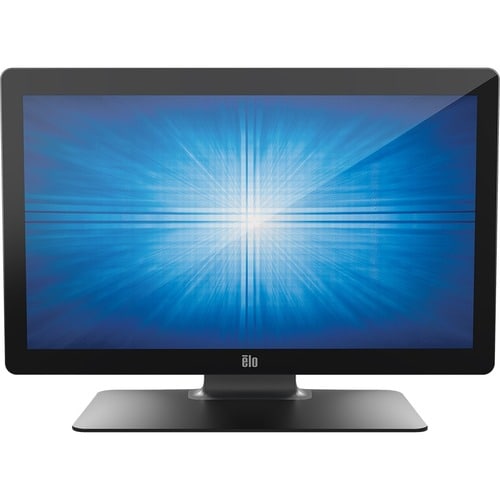

Elo 2202L 22\" Class LED Touchscreen Monitor - 16:9 - 14 ms - 21.5\" Viewable -
Elo 2202L 22\" Class LED Touchscreen Monitor - 16:9 - 14 ms - 21.5\" Viewable -
VPN:E992622 SKU:DCD938546 UPC:
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- Furnishes captivating visuals with about 225 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details









Recently Viewed
Elo 2202L 22\" Class LED Touchscreen Monitor - 16:9 - 14 ms - 21.5\" Viewable -
Product information summary

About the product
2202L | Touchscreen Monitor
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You. | One for Your Customers.

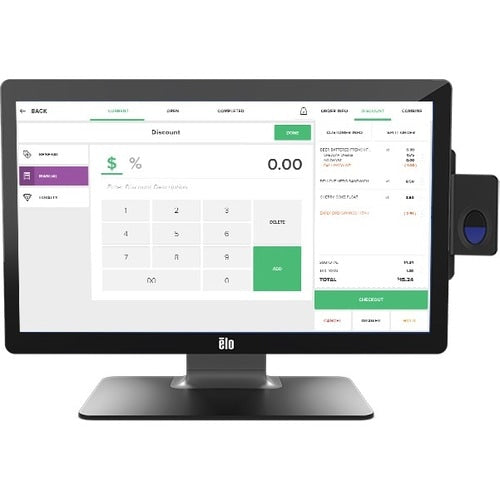

Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility

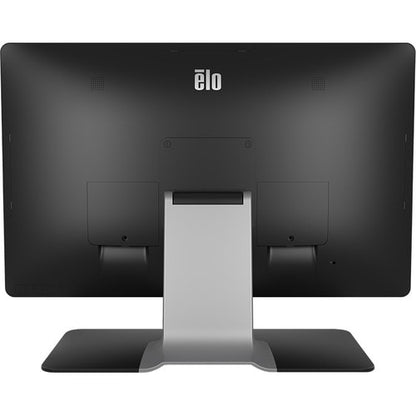

Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- Furnishes captivating visuals with about 225 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
- Furnishes staggering touch utilization with astonishing screen execution
Technical Specifications
Built-in Devices | |
Built-in Devices | USB Hub |
Audio | |
Speakers | Yes |
Number of Speakers | 2 |
Power Description | |
Frequency | 50 Hz |
60 Hz | |
Operating Power Consumption | 16.78 W |
Touchscreen Information | |
Touchscreen Type | TouchPro Projected Capacitive |
Multi-touch Screen | Yes |
Number of Simultaneous Touchpoints | 10 |
Video | |
Brightness | 225 cd/m² |
Color Supported | 16.7 Million Colors |
Maximum Resolution | 1920 x 1080 |
Native Contrast Ratio | 1,000:1 |
Interfaces/Ports | |
USB | Yes |
HDMI | Yes |
VGA | Yes |
Number of USB Ports | 4 |
Number of Micro USB Upstream Ports | 4 |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Restriction of Hazardous Substances (RoHS) | |
Waste Electrical and Electronic Equipment Directive (WEEE) | |
China Restriction of Hazardous Substances (China RoHS) | |
General Information | |
Product Type | LED Touchscreen Monitor |
Manufacturer Part Number | E992622 |
Manufacturer Website Address | http://www.elotouch.com |
Manufacturer | Elo Touch Solutions, Inc |
Product Model | 2202L |
Product Name | 2202L 22" Touchscreen Monitor |
Product Series | 02 |
Brand Name | Elo |
Physical Characteristics | |
Weight (Approximate) | 10.47 lb (4750 g) |
Height | 12.87" (326.90 mm) |
Width | 20.74" (526.80 mm) |

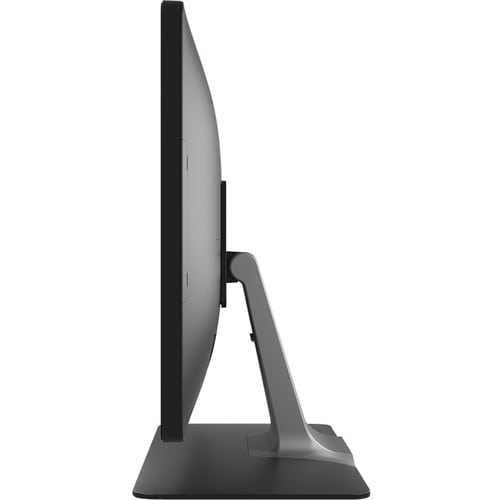

Depth | 1.68" (42.67 mm) |
Weight with Stand (Approximate) | 14.88 lb (6750 g) |
VESA Mount Compatible | Yes |
VESA Mount Standard | 100 x 100 |
Height with Stand | 15.11" (383.79 mm) |
Width with Stand | 20.74" (526.80 mm) |
Depth with Stand | 7.61" (193.29 mm) |
Product Color | Black |
Color Family | Black |
Technical Information | |
Aspect Ratio | 16:9 |
Response Time | 14 ms |
Features | On-screen Display (OSD) |
Wide Viewing Angle | |
Cable Lock Slot | |
OSD/Power Lock | |
Anti-glare | |
Mount Type | Shelf Mount |
Wall Mountable | |
Pole Mount | |
Viewable Screen Size | 21.5" |
Screen Mode | Full HD |
Placement | Tabletop |
Horizontal Viewing Angle | 178° |
Vertical Viewing Angle | 178° |
Backlight Technology | LED |
Panel Technology | Thin Film Transistor (TFT) |
Horizontal Frequency | 30 kHz to 82 kHz |
Vertical Frequency | 50 Hz to 75 Hz |
Screen Size Class | 22" |
Ingress Protection (IP) Rating | IPX1 |
Impact Protection (IK) Rating | IK06 |
Response Time Details | 14ms Typical |
