HP Engage One Prime Barcode Scanner Kit - Cable Connectivity - 9.80\" (248.92 mm

Name: HP Engage One Prime Barcode Scanner Kit - Cable Connectivity - 9.80\" (248.92 mm
Brand: HP Inc.
SKU: DCD989632
Availability: OutOfStock

$0.00 CAD

~~$0.00 CAD~~ $0.00 CAD

-Liquid error (snippets/price line 128): divided by 0% OFF Ask for quote

Shipping calculated at checkout.

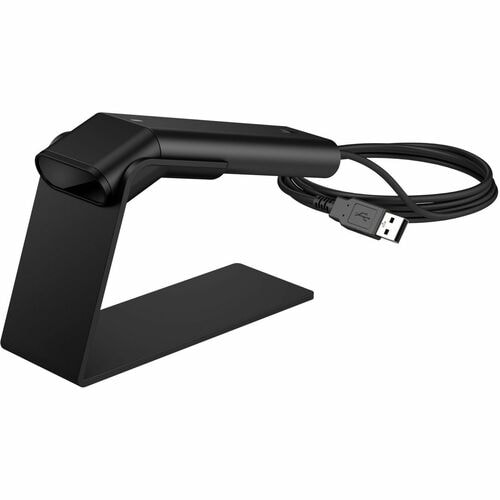

HP Engage One Prime Barcode Scanner Kit - Cable Connectivity - 9.80\" (248.92 mm) Scan Distance - 1D, 2D - LED - Imager - Linear - USB - Black - Stand Included - IP42 - USB

VPN:638L9AT SKU:DCD989632 UPC:

Perfect for applications that require direct association with a workstation or a notebook
Laser-free design provides high-performance scanning without the risk of eye injury

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

$HP Engage One Prime Barcode Scanner Kit - Cable Connectivity - 9.80\" (248.92 mm$

About the product

Perfect for applications that require direct association with a workstation or a notebook
Laser-free design provides high-performance scanning without the risk of eye injury

Technical Specifications

Interfaces/Ports
Host Interface	USB
Miscellaneous
Package Contents	HP Engage One Prime Barcode Scanner Scanner stand USB cable
Compatibility	HP Engage One Prime
Environmentally Friendly	Yes
Ingress Protection (IP) Rating	IP42
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
General Information
Product Type	Barcode Scanner Kit
Manufacturer Part Number	638L9AT
Manufacturer Website Address	http://www.hp.com
Manufacturer	HP Inc.
Product Name	Engage One Prime Barcode Scanner Kit
Product Line	Engage One Prime
Brand Name	HP
Physical Characteristics
Weight (Approximate)	4.06 oz (115 g)
Durability	Water Proof
	Spill Resistant
Form Factor	Handheld
Height	2.70" (68.58 mm)
Width	5.70" (144.80 mm)
Depth	3.97" (100.80 mm)
Product Color	Black
Color Family	Black
Technical Information
Barcode Symbology Supported	1D: EAN-8 EAN-13 UPC-E UPC-A Code 128 UCC/EAN 128 I2Of5 ITF14 ITF6 Matrix 25 CodaBar Code 39 Code 93 ISSN ISBN Industrial 25 Standard 25 2D: Plessey Code 11 MSI Plessey UCC/EAN Composite GS1 Databar China Post 25 Code 49 Code 16K PDF417 QR Code Micro QR Data Matrix Aztec Maxicode Chinese Sensible Code GM Code MicroPDF417 Code One
Connectivity Technology	Cable
Scanning Distance	9.80" (248.92 mm)
Light Source	LED
Depth of Field	50 mm to 125 mm (1.9 in to 4.9 in) (5 mils) @ Code 39 35 mm to 250 mm (1.4 in to 9.8 in) (10 mils) @ Code 39 35 mm to 75 mm (1.4 in to 2.9 in) (10 mils) @ Data Matrix 15 mm to 115 mm (0.59 in to 4.5 in) (15 mils) @ Data Matrix 60 mm to 230 mm (2.4 in to 9.1 in) (13 mil) @ EAN-13 55 mm to 75mm (2.2 in to 2.9 in) (6.7 mils) @ PDF-417 20 mm to 145 mm (0.78 in to 5.7 in) (10 mils) @ PDF-417 25 mm to 80 mm (0.98 in to 3.1 in) (10 mils) @ QR Code 10 mm to 135 mm (0.4 in to 5.3 in) (15 mils) @ QR Code
Scan Pattern	Linear
Image Sensor Type	Imager
Illumination Type	LED
Stand Included	Yes
Illumination Color	White
Cable Type Included	USB
Scanning Capability	1D
	2D
Reading Angle (Skew)	40°
Reading Angle (Pitch)	45°
Reading Angle (Roll)	360°
Minimum Print Contrast	25%
Minimum Element Resolution (Code 39)	5 mil (0.13 mm)
Maximum Element Resolution (Code 39)	10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix)	10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix)	15 mil (0.38 mm)
Minimum Element Resolution (PDF417)	6.70 mil (0.17 mm)
Maximum Element Resolution (PDF417)	10 mil (0.25 mm)
