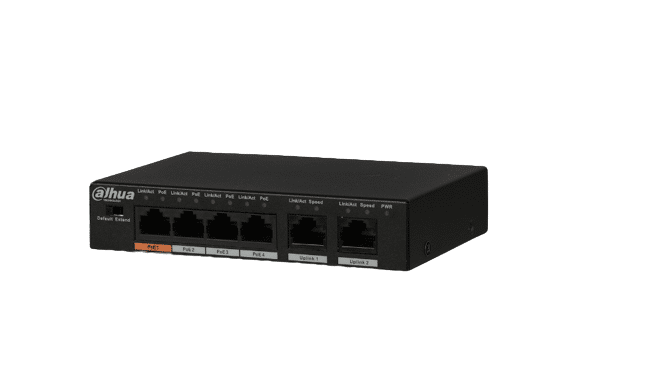

Dahua 4-port PoE Ethernet switch 60W (DH-PFS3006-4ET-60)

The DH-PFS3006-4ET-60 commercial PoE switch is specially designed for long-distance video transmission applications. The switch provides four (4) 10/100 Mbps PoE ports and two (2) 100 Mbps uplink ports. The switch is also equipped with two transmission modes, Default and Extend, that are set by onboard dip switches.

Dahua DH-PFS3006-4ET-60 4-port PoE Ethernet switch 60W Features:

• Layer 2 Commercial Switch
• Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
• Conforms to IEEE802.3af and IEEE803.3at
• Supports Hi-PoE (60 W)
• MAC Auto-learning and Aging; 2K MAC Address Capacity
• MDI/MDIX Self-adaptation
• Metal Enclosure
• New Limited Lifetime Warranty

Dahua DH-PFS3006-4ET-60 4-port PoE Ethernet switch 60W Specifications:

• Ports: 4 x 10/100 Mbps PoE Ethernet ports, 2 x 10/100 Mbps Ethernet ports
• PoE Power Budget: 60W (Max. 30W per port)
• Switching Capacity: 1.2 Gbps
• Forwarding Rate: 0.89 Mpps
• MAC Address Table: 1K
• PoE Standards: IEEE 802.3af/at
• PoE Power Method: End-span (1/2+, 3/6-)
• Power Input: DC 48-57V
• Power Consumption: <65W (without PoE), <65W (with PoE full load)
• Operating Temperature: -10°C to +55°C (+14°F to +131°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Operating Humidity: 10% to 90% RH, non-condensing
• Dimensions: 150 mm x 100 mm x 35 mm (5.91"" x 3.94"" x 1.38"")
• Weight: 0.32 kg (0.71 lb)
