About the product

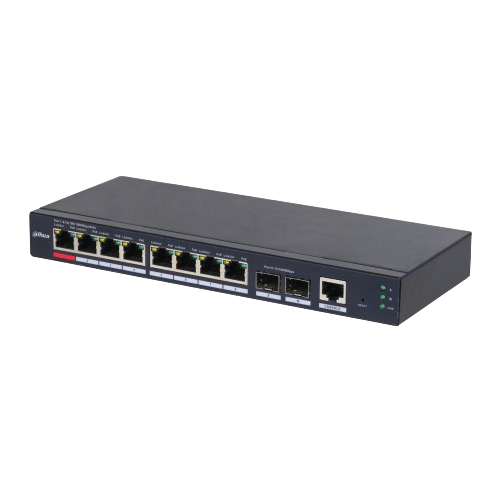

The 8 Port PoE All-Gigabit Managed Switch operates at peak efficiency thanks to its powerful switching engine. Large buffer, minimal transmission latency, and great dependability characterise it.Additionally, when viewing Ultra HD videos, it optimises transmission performance and possesses a robust switching capability. The gadget operates in temperatures between -10°C and 55°C (+14°F and +131°F), thanks to its complete metal construction, which also provides excellent heat dissipation and low power consumption. The switch successfully withstands interference from static electricity, lightning, and pulses thanks to protection against overvoltage, EMC, and overcurrent from power input terminals. Additionally, it offers strong network administration features that enable a variety of web and SNMP-based network management tools.
Dahua 8-Port PoE Desktop Managed Gigabit Switch(PoE++) Features:
- Layer 2 Network Management PoE Ethernet Switch
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt Standards
- Eight (8) 1000 Mbps Ethernet Ports and Two (2) 1000 Mbps Uplink Optical Ports
- Supports PoE 2.0: Enhanced power capabilities with advanced features
- BT 90W (Red Port): Compliant with IEEE 802.3bt, delivering up to 90W for high-power devices
- Long Distance PoE: Offers up to 250m (820.21 ft) connection range
- PoE Watchdog (PD Alive): Ensures 24/7 monitoring and automatic restart of PoE devices upon failure
- Intelligent PoE: Enables port priority to be assigned, ensuring that essential devices are powered
- Desktop and Wall-Mount Installation
Dahua 8-Port PoE Desktop Managed Gigabit Switch(PoE++) Specifications:
- Interface
- Power Adapter Included
- PoE Supported
- Ethernet Port Eight (8)
- Optical Port Two (2)
- Ethernet Port Speed 10/100/1000 Mbps
- Optical Port Speed 1 Gbps
- Optical Port Uplink Speed 1 Gbps
- Port Slots
- Port 1–8 Eight (8) 10/100/1000 Base-T
- Port 9–10 Two (2) 1000 Base-X
- Debugging One (1) Console Part
- Reset Button Yes
- Performance
- Layer Layer 2
- Management Type Yes
- Mean Time Between Failures (MTBF) 1,407,459.54 hours
- Switching Capacity 20 Gbps
- Packet Forwarding Rate 14.88 Mpps
- Packet Buffer Size 4.1 Mbit
- Jumbo Frame 9K Byte
- MAC Table Size 8K
- VLAN Number 4K
- VLAN Interface 10
- Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad
- PoE
- Protocol IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE, 802.3bt
- Power
- Port 1 ? 90 W
- Port 2–8 ? 30 W
- Full Load ? 110 W
- Power Consumption Management Supported
- PIN Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
- Long-distance Transmission Supported
- Spanning Tree Protocol STP/RSTP
- VLAN Function Port-based VLAN
- Link Aggregation Static, LACP
- IEEE 802.3x Flow Control Supported (Full-duplex)
- Multicast IGMP Snooping V1/V2
- DHCP Function Client
- QoS/ACL QoS
- Equipment Management HTTP, HTTPS, SNMP V1/V2C/V3
- Electrical
- Power Supply 48-57 VDC, 2.22 A
- Power Consumption
- Idling Load 3.5 W
- Full Load 110 W
- Environmental
- Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
- Operating Humidity 5% to 95% (RH), non-condensing
- Statics Protection
- Air Discharge 8 kV
- Contact Discharge 6 kV
- Lightning Protection
- Common Mode 4 kV
- Differential Mode 2 kV
- Construction
- Casing SGCC
- Installation Desktop Mount, Wall Mount
- Net Weight 0.64 kg (1.41 lb)
- Gross Weight 1.50 kg (3.30 lb)
- Product Dimensions (L × W × H) 240 mm × 104 mm × 28 mm (9.45 in. × 4.12 in. × 1.10 in.)
- Package Dimensions (L × W × H) 316 mm × 240 mm × 82 mm (12.44 in. × 9.45 in. × 3.23 in.)
- Certifications
- CE-EMC EN50130-4: 2011 +A1:2014 EN55032: 2015+A1:2020 EN55035: 2017+A11:2020 EN61000-3-3: 2013+ A1:2019+A2:2021 EN IEC 61000-3-2: 2019+A1:2021
- CE-LVD IEC 62368-1:2014+A11: 2017
Technical Specifications
The 8 Port PoE All-Gigabit Managed Switch operates at peak efficiency thanks to its powerful switching engine. Large buffer, minimal transmission latency, and great dependability characterise it.Additionally, when viewing Ultra HD videos, it optimises transmission performance and possesses a robust switching capability. The gadget operates in temperatures between -10°C and 55°C (+14°F and +131°F), thanks to its complete metal construction, which also provides excellent heat dissipation and low power consumption. The switch successfully withstands interference from static electricity, lightning, and pulses thanks to protection against overvoltage, EMC, and overcurrent from power input terminals. Additionally, it offers strong network administration features that enable a variety of web and SNMP-based network management tools.
Dahua 8-Port PoE Desktop Managed Gigabit Switch(PoE++) Features:
- Layer 2 Network Management PoE Ethernet Switch
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt Standards
- Eight (8) 1000 Mbps Ethernet Ports and Two (2) 1000 Mbps Uplink Optical Ports
- Supports PoE 2.0: Enhanced power capabilities with advanced features
- BT 90W (Red Port): Compliant with IEEE 802.3bt, delivering up to 90W for high-power devices
- Long Distance PoE: Offers up to 250m (820.21 ft) connection range
- PoE Watchdog (PD Alive): Ensures 24/7 monitoring and automatic restart of PoE devices upon failure
- Intelligent PoE: Enables port priority to be assigned, ensuring that essential devices are powered
- Desktop and Wall-Mount Installation
Dahua 8-Port PoE Desktop Managed Gigabit Switch(PoE++) Specifications:
- Interface
- Power Adapter Included
- PoE Supported
- Ethernet Port Eight (8)
- Optical Port Two (2)
- Ethernet Port Speed 10/100/1000 Mbps
- Optical Port Speed 1 Gbps
- Optical Port Uplink Speed 1 Gbps
- Port Slots
- Port 1–8 Eight (8) 10/100/1000 Base-T
- Port 9–10 Two (2) 1000 Base-X
- Debugging One (1) Console Part
- Reset Button Yes
- Performance
- Layer Layer 2
- Management Type Yes
- Mean Time Between Failures (MTBF) 1,407,459.54 hours
- Switching Capacity 20 Gbps
- Packet Forwarding Rate 14.88 Mpps
- Packet Buffer Size 4.1 Mbit
- Jumbo Frame 9K Byte
- MAC Table Size 8K
- VLAN Number 4K
- VLAN Interface 10
- Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad
- PoE
- Protocol IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE, 802.3bt
- Power
- Port 1 ? 90 W
- Port 2–8 ? 30 W
- Full Load ? 110 W
- Power Consumption Management Supported
- PIN Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
- Long-distance Transmission Supported
- Spanning Tree Protocol STP/RSTP
- VLAN Function Port-based VLAN
- Link Aggregation Static, LACP
- IEEE 802.3x Flow Control Supported (Full-duplex)
- Multicast IGMP Snooping V1/V2
- DHCP Function Client
- QoS/ACL QoS
- Equipment Management HTTP, HTTPS, SNMP V1/V2C/V3
- Electrical
- Power Supply 48-57 VDC, 2.22 A
- Power Consumption
- Idling Load 3.5 W
- Full Load 110 W
- Environmental
- Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
- Operating Humidity 5% to 95% (RH), non-condensing
- Statics Protection
- Air Discharge 8 kV
- Contact Discharge 6 kV
- Lightning Protection
- Common Mode 4 kV
- Differential Mode 2 kV
- Construction
- Casing SGCC
- Installation Desktop Mount, Wall Mount
- Net Weight 0.64 kg (1.41 lb)
- Gross Weight 1.50 kg (3.30 lb)
- Product Dimensions (L × W × H) 240 mm × 104 mm × 28 mm (9.45 in. × 4.12 in. × 1.10 in.)
- Package Dimensions (L × W × H) 316 mm × 240 mm × 82 mm (12.44 in. × 9.45 in. × 3.23 in.)
- Certifications
- CE-EMC EN50130-4: 2011 +A1:2014 EN55032: 2015+A1:2020 EN55035: 2017+A11:2020 EN61000-3-3: 2013+ A1:2019+A2:2021 EN IEC 61000-3-2: 2019+A1:2021
- CE-LVD IEC 62368-1:2014+A11: 2017
