About the product

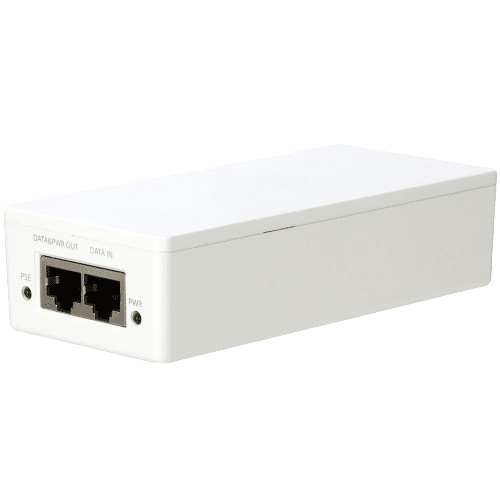

The DH-TAM1GT1GT-30 PoE+ Midspan is made to function in lightning-prone applications and in extremely hot conditions. Within a small housing, the midspan provides one PoE+ (802.3at) port and an internal power supply. For simple IP camera, wireless access point, or VoIP phone installation, the midspan transmits both data and power over an Ethernet connection.
Dahua PoE+ Midspan Features:
- Supports IEEE802.3af and IEEE802.3at Standards
- Conforms to IEEE802.3, IEEE802.3u and IEEE802.3ab Standards
- Wide Temperature Range for Industrial Applications
Dahua PoE+ Midspan Specifications:
- Ethernet Ports One (1) 10/100/1000 Base-T One (1) 10/100/1000 Base-T (PoE Power Supply)
- PoE Features
- Protocol: IEEE802.3af, IEEE802.3at
- Power Output: ? 30 W
- LED Indicators PSE: Green indicates the midspan is delivering power PWR: Green indicates the midspan is working properly
- Power Requirements 100 VAC to 240 VAC, 50/60 Hz
- Working Temperature –10° C to 55° C (14° F to 131° F)
- Application Humidity 10% to 90%
- Dimensions (W x D x H) 132.30 mm x 60.0 mm x 33.0 mm (5.21 in. x 2.36 in. x 1.30 in.)
- Weight 0.25 kg (0.55 lb)
- Certifications
- Safety UL Certification Pending
- Electromagnetic Compatibility (EMC) FCC and CE Certifications Pending
Technical Specifications
The DH-TAM1GT1GT-30 PoE+ Midspan is made to function in lightning-prone applications and in extremely hot conditions. Within a small housing, the midspan provides one PoE+ (802.3at) port and an internal power supply. For simple IP camera, wireless access point, or VoIP phone installation, the midspan transmits both data and power over an Ethernet connection.
Dahua PoE+ Midspan Features:
- Supports IEEE802.3af and IEEE802.3at Standards
- Conforms to IEEE802.3, IEEE802.3u and IEEE802.3ab Standards
- Wide Temperature Range for Industrial Applications
Dahua PoE+ Midspan Specifications:
- Ethernet Ports One (1) 10/100/1000 Base-T One (1) 10/100/1000 Base-T (PoE Power Supply)
- PoE Features
- Protocol: IEEE802.3af, IEEE802.3at
- Power Output: ? 30 W
- LED Indicators PSE: Green indicates the midspan is delivering power PWR: Green indicates the midspan is working properly
- Power Requirements 100 VAC to 240 VAC, 50/60 Hz
- Working Temperature –10° C to 55° C (14° F to 131° F)
- Application Humidity 10% to 90%
- Dimensions (W x D x H) 132.30 mm x 60.0 mm x 33.0 mm (5.21 in. x 2.36 in. x 1.30 in.)
- Weight 0.25 kg (0.55 lb)
- Certifications
- Safety UL Certification Pending
- Electromagnetic Compatibility (EMC) FCC and CE Certifications Pending
