About the product

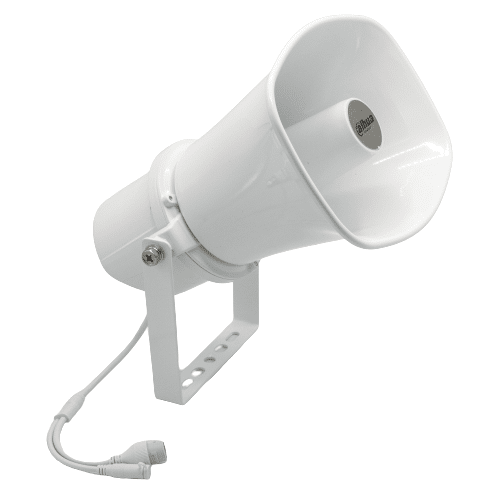

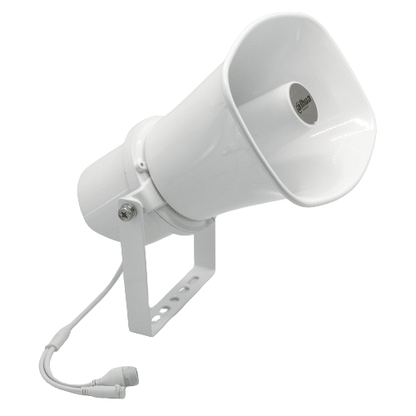

Dahua’s IP speaker is designed to suit a variety of applications. It supports ONVIF protocol , ensuring compatability with 3rd party cameras. It is powered by PoE+ for easy installation and use. The speaker has an built-in microSD slot and an internal storage capacity of 512 MB. The built-in microphone allows for two-way communication. The speaker can be used for outdoor applications thanks to its IP67 ingress protection rating.
Dahua DH-VCS-SH30 IP Speaker Features:
- Maximum Connection Distance 100 m
- Supports ONVIF and SIP protocol
- Internal Storage 512 MB, SD Card Support
- Can be used with auxiliary input, 24V adapter, or PoE switch
- Built-in Microphone
- IP67 Ingress Protection Rating
- Three-year Warranty
Dahua DH-VCS-SH30 IP Speaker Specifications:
- Microphone:
- Type Built-in Microphone
- Pickup Distance ? 8m
- Frequency Response 50Hz to 12KHz
- Microphone Input 15 mV
- Speaker
- Maximum Sound Pressure Level 120 dB
- SNR ? 75dB
- Frequency Response 250Hz to 16KHz
- Coverage Pattern 70° (H) x 100° (V)
- Speaker Output 15W
- Audio Protocol MP3, G.711a/u.G. 722
- Amplifier
- Type Built-in 15W, 8? Amplifier
- Interface
- TF Card Interface Support
- 24V Auxiliary Input Support, Can use ordinary network
- Network
- Network Port RJ45
- Network Protocol TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, ONVIF
- Storage 512 MB Internal Storage, TF Card, MicroSD Card
- Electrical
- Input PoE+(IEEE 802.3at) / DC24V 1A (Standby)
- Consumption 15 W
- Environmental
- Operating Temperature 40 °C to 60 °C (-40 °F to 140 °F), 60%~95% RH
- Ingress Protection IP67
- Certifications
- Electromagnetic Comptability (EMC) EN 55032 Class B, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), VCCI Class B, RCM AS/ NZS CISPR 32 Class B, KC KN32 Class B, KC KN35
- Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22
- Environmental IEC/EN 60529 IP67, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, NEMA 250 Type 4X, MIL-STD810G 509.5
- Construction
- Product Dimensions (L x W x H) 225mm x 170mm x 250mm (8.85 in. × 6.69 in. × 9.84 in.)
- Packaging Dimensions (L x W x H) 240 mm x 200 mm x 275 mm (9.45 in. × 7.87 in. × 10.83 in.)
- Net Weight 1.8 kg (3.97 lb)
- Gross Weight 2.5kg (5.51 lb)
Technical Specifications
Dahua’s IP speaker is designed to suit a variety of applications. It supports ONVIF protocol , ensuring compatability with 3rd party cameras. It is powered by PoE+ for easy installation and use. The speaker has an built-in microSD slot and an internal storage capacity of 512 MB. The built-in microphone allows for two-way communication. The speaker can be used for outdoor applications thanks to its IP67 ingress protection rating.
Dahua DH-VCS-SH30 IP Speaker Features:
- Maximum Connection Distance 100 m
- Supports ONVIF and SIP protocol
- Internal Storage 512 MB, SD Card Support
- Can be used with auxiliary input, 24V adapter, or PoE switch
- Built-in Microphone
- IP67 Ingress Protection Rating
- Three-year Warranty
Dahua DH-VCS-SH30 IP Speaker Specifications:
- Microphone:
- Type Built-in Microphone
- Pickup Distance ? 8m
- Frequency Response 50Hz to 12KHz
- Microphone Input 15 mV
- Speaker
- Maximum Sound Pressure Level 120 dB
- SNR ? 75dB
- Frequency Response 250Hz to 16KHz
- Coverage Pattern 70° (H) x 100° (V)
- Speaker Output 15W
- Audio Protocol MP3, G.711a/u.G. 722
- Amplifier
- Type Built-in 15W, 8? Amplifier
- Interface
- TF Card Interface Support
- 24V Auxiliary Input Support, Can use ordinary network
- Network
- Network Port RJ45
- Network Protocol TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, ONVIF
- Storage 512 MB Internal Storage, TF Card, MicroSD Card
- Electrical
- Input PoE+(IEEE 802.3at) / DC24V 1A (Standby)
- Consumption 15 W
- Environmental
- Operating Temperature 40 °C to 60 °C (-40 °F to 140 °F), 60%~95% RH
- Ingress Protection IP67
- Certifications
- Electromagnetic Comptability (EMC) EN 55032 Class B, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), VCCI Class B, RCM AS/ NZS CISPR 32 Class B, KC KN32 Class B, KC KN35
- Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22
- Environmental IEC/EN 60529 IP67, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, NEMA 250 Type 4X, MIL-STD810G 509.5
- Construction
- Product Dimensions (L x W x H) 225mm x 170mm x 250mm (8.85 in. × 6.69 in. × 9.84 in.)
- Packaging Dimensions (L x W x H) 240 mm x 200 mm x 275 mm (9.45 in. × 7.87 in. × 10.83 in.)
- Net Weight 1.8 kg (3.97 lb)
- Gross Weight 2.5kg (5.51 lb)
