About the product

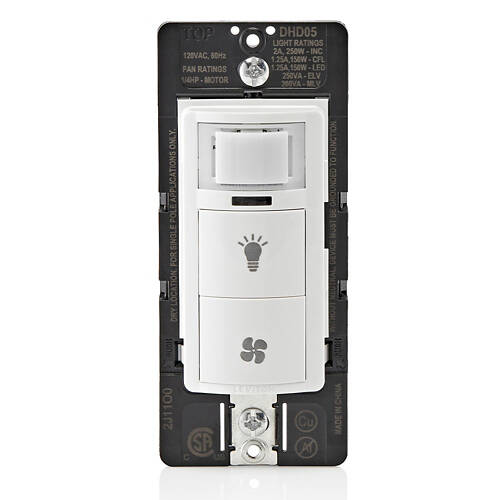

The Leviton In-Wall Combination Humidity Sensor and Fan Control with Light Switch combines a traditional in-wall fan controller with a built-in humidity sensor, automatically detecting excess humidity and activating ventilation to lessen condensation, reduce mold and mildew growth, and improve living spaces—all without external sensors or more complex smart home systems. Advanced sensing enhances detection when the room is occupied and minimizes false triggers when unoccupied. Operating modes include bathroom fan, air cycle and humidistat.
State-of-the-art digital sensing and built-in microprocessor continuously monitors humidity in installed areas, and allows users to fully adjust sensitivity, desired humidity targets, and time-out settings. Designed to work with most common bathroom ventilation fans, or fan/light combos; as well as more creative applications like greenhouse humidity control, home spas, laundry rooms, or preventing mold growth in humid climates or damp environments like basements.

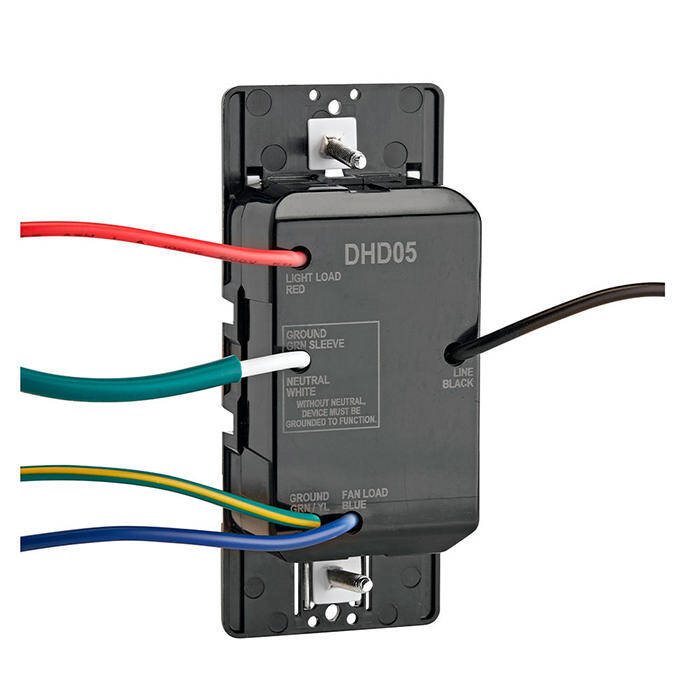

Works with or without neutral connection. Compatible with ventilation fans up to ¼ HP, as well as LED, CFL, incandescent, halogen, MLV and ELV lighting loads.
PLEASE NOTE: Wall plate not included.
DHD05-1LW Specs and Features
- Operating temperature range: 0° to 40° C
- Non-operating temperature (storage) range: -20° to 60° C
- Humidity: 0 to 95% non-condensing
- Indoor applications only
- CSA
- Standards UL 873 and C22.2 No. 24
- Can be used to comply with the requirements of 2019 and 2022 California Title 24, Part 6, Indoor Air Quality and Mechanical Ventilation
- Can be used to comply with the requirements of 2019 and 2022 CALGREEN, Part II, Indoor Air Quality and Exhaust
- Meets requirements of ASHRAE 62.2
- 5 year manufacturer's warranty
Technical Specifications
The Leviton In-Wall Combination Humidity Sensor and Fan Control with Light Switch combines a traditional in-wall fan controller with a built-in humidity sensor, automatically detecting excess humidity and activating ventilation to lessen condensation, reduce mold and mildew growth, and improve living spaces—all without external sensors or more complex smart home systems. Advanced sensing enhances detection when the room is occupied and minimizes false triggers when unoccupied. Operating modes include bathroom fan, air cycle and humidistat.
State-of-the-art digital sensing and built-in microprocessor continuously monitors humidity in installed areas, and allows users to fully adjust sensitivity, desired humidity targets, and time-out settings. Designed to work with most common bathroom ventilation fans, or fan/light combos; as well as more creative applications like greenhouse humidity control, home spas, laundry rooms, or preventing mold growth in humid climates or damp environments like basements.
Works with or without neutral connection. Compatible with ventilation fans up to ¼ HP, as well as LED, CFL, incandescent, halogen, MLV and ELV lighting loads.
PLEASE NOTE: Wall plate not included.
DHD05-1LW Specs and Features
- Operating temperature range: 0° to 40° C
- Non-operating temperature (storage) range: -20° to 60° C
- Humidity: 0 to 95% non-condensing
- Indoor applications only
- CSA
- Standards UL 873 and C22.2 No. 24
- Can be used to comply with the requirements of 2019 and 2022 California Title 24, Part 6, Indoor Air Quality and Mechanical Ventilation
- Can be used to comply with the requirements of 2019 and 2022 CALGREEN, Part II, Indoor Air Quality and Exhaust
- Meets requirements of ASHRAE 62.2
- 5 year manufacturer's warranty
