About the product

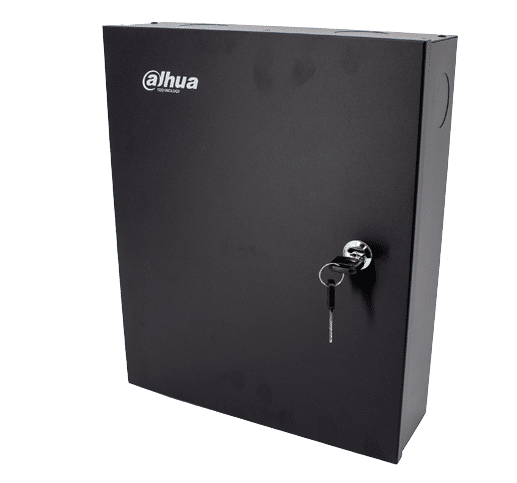

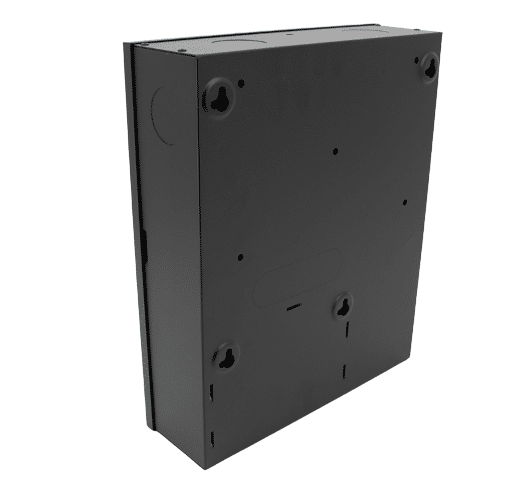

The Dahua DHI-ASC2204C-S Four-door Multi-function Access Controller is a highly capable and versatile security solution designed to enhance access control for various premises. With its advanced features and reliable performance, this access controller ensures secure and convenient entry management.
Dahua DHI-ASC2204C-S Four-door Multi-function Access Controller Features:
Supports TCP/IP, RS485, and Wiegand Protocols
Stores 100,000 User and 500,000 Card-swipe Records
- Issues Alarms for Tampering, Intrusion, Timeout, Duress, Invalid Card, and Incorrect Password
- Supports Built-in RTC, Manual Time-fixing, and Automatic Time-fixing
- Data Saved in Event of Power Failure
- Enable Anti-passback and Multi-door Interlock to Control Traffic in High-security Applications
- Supports Watchdog Mechanism to Ensure Operation Stability
Dahua DHI-ASC2204C-S Four-door Multi-function Access Controller Specifications:
General:
- Model: DHI-ASC2204C-S
- Operation System: Linux
- User Capacity: Up to 30,000 users
- Card Capacity: Up to 30,000 cards
- Event Capacity: Up to 100,000 events
- Communication: RS485, TCP/IP
Access Control:
- Door Control: Four doors
- Input Ports: 4x Door status inputs, 4x Exit button inputs, 4x Tamper inputs
- Output Ports: 4x Relay outputs for door control, 4x Alarm outputs
- Card Reader Support: Wiegand and RS485 card readers
Functionality:
- Access Modes: Card only, Card or PIN, Card and PIN
- Authentication Methods: Card, Card+PIN, Card or PIN
- Time Zones: Support for multiple time zones and time schedules
- Anti-Passback: Yes
- Duress Alarm: Yes
- Interlock: Yes
- Anti-Passback: Yes
- Time Attendance: Yes
Management:
- Software: Support for DSS Express and DSS Pro
- Web Interface: Yes
- Mobile App: Compatible with iOS and Android devices
- SDK: Available for third-party integration
Physical Specifications:
- Power Supply: DC 12V
- Operating Temperature: -10°C to +55°C (14°F to 131°F)
- Dimensions: 220mm x 90mm x 35mm (8.66"" x 3.54"" x 1.38"")
- Weight: 0.5 kg (1.1 lbs)
Technical Specifications
The Dahua DHI-ASC2204C-S Four-door Multi-function Access Controller is a highly capable and versatile security solution designed to enhance access control for various premises. With its advanced features and reliable performance, this access controller ensures secure and convenient entry management.
Dahua DHI-ASC2204C-S Four-door Multi-function Access Controller Features:
Supports TCP/IP, RS485, and Wiegand Protocols
Stores 100,000 User and 500,000 Card-swipe Records
- Issues Alarms for Tampering, Intrusion, Timeout, Duress, Invalid Card, and Incorrect Password
- Supports Built-in RTC, Manual Time-fixing, and Automatic Time-fixing
- Data Saved in Event of Power Failure
- Enable Anti-passback and Multi-door Interlock to Control Traffic in High-security Applications
- Supports Watchdog Mechanism to Ensure Operation Stability
Dahua DHI-ASC2204C-S Four-door Multi-function Access Controller Specifications:
General:
- Model: DHI-ASC2204C-S
- Operation System: Linux
- User Capacity: Up to 30,000 users
- Card Capacity: Up to 30,000 cards
- Event Capacity: Up to 100,000 events
- Communication: RS485, TCP/IP
Access Control:
- Door Control: Four doors
- Input Ports: 4x Door status inputs, 4x Exit button inputs, 4x Tamper inputs
- Output Ports: 4x Relay outputs for door control, 4x Alarm outputs
- Card Reader Support: Wiegand and RS485 card readers
Functionality:
- Access Modes: Card only, Card or PIN, Card and PIN
- Authentication Methods: Card, Card+PIN, Card or PIN
- Time Zones: Support for multiple time zones and time schedules
- Anti-Passback: Yes
- Duress Alarm: Yes
- Interlock: Yes
- Anti-Passback: Yes
- Time Attendance: Yes
Management:
- Software: Support for DSS Express and DSS Pro
- Web Interface: Yes
- Mobile App: Compatible with iOS and Android devices
- SDK: Available for third-party integration
Physical Specifications:
- Power Supply: DC 12V
- Operating Temperature: -10°C to +55°C (14°F to 131°F)
- Dimensions: 220mm x 90mm x 35mm (8.66"" x 3.54"" x 1.38"")
- Weight: 0.5 kg (1.1 lbs)
