About the product

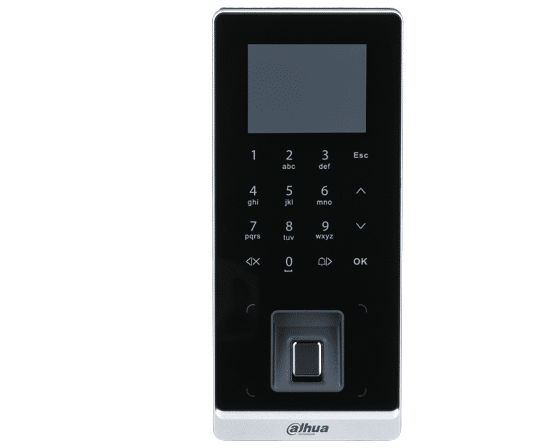

The Dahua DHI-ASI2212H-W Access Reader and Controller is a versatile device that combines the functions of an access reader and a controller in a single unit. With support for multiple authentication methods and built-in Wi-Fi connectivity, it provides convenient and secure access control. The device offers advanced features like anti-passback and duress alarm, along with easy management through web interface or mobile app. Its compact size, durable construction, and weatherproof rating make it suitable for both indoor and outdoor installations. The DHI-ASI2212H-W is an efficient and reliable solution for implementing secure access control systems.
Dahua DHI-ASI2212H-W Access Reader and Controller Features:
- TCP/IP and WiFi Communication
- Supports Auto and P2P Registration and DHCP
- Switch Between Reader and Controller Functions
- Supports Various User Credentials – Guest, Patrol, VIP, and others
- Touch Keypad and 2.4-in. LCD Display
- Supports 30,000 Users, 30,000 Cards, 30,000 passwords,
- 3000 Fingerprints, 50 Administrators, and 150,000 Records
- Recognizes a Fingerprint in Less Than One (1) Second
- Supports Card, Password, Fingerprint, and a combination of Credentials
- Door Time Out, Intrusion, Duress, Tamper, and other Alarms
- IP65 Ingress Protection
Dahua DHI-ASI2212H-W Access Reader and Controller Specifications:
General:
- Model: DHI-ASI2212H-W
- Communication Interface: RS485, Wiegand
- Authentication Methods: Card, Card + PIN, PIN
- Tamper Protection: Tamper switch for unauthorized removal
- Power Supply: 12V DC, PoE (IEEE 802.3af)
- Operating Temperature: -20°C to +55°C (-4°F to +131°F)
- Ingress Protection: IP65
- Dimensions: 125mm x 68mm x 20mm (4.92"" x 2.68"" x 0.79"")
- Weight: 160g (0.35 lbs)
Reader:
- Card Reading Frequency: 13.56MHz
- Reading Range: Up to 5cm (1.97 inches)
- Supported Card Types: MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1/EV2
Controller:
- Supported Doors: 2
- Input Ports: 2 x Exit Button, 2 x Door Contact
- Output Ports: 2 x Lock Relay, 2 x Alarm Output
- Relay Rating: 1A@30V DC
- Supported Functions: Anti-passback, Duress Alarm
Network:
- Network Interface: Wi-Fi (IEEE 802.11b/g/n)
- Supported Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP
- Wireless Transmission Range: Up to 50 meters (164 feet) in open areas
Management:
- Management Software: Smart PSS, Web Browser, Mobile App (DMSS)
- Configuration: Web-based configuration interface
- Event Log: Up to 10,000 records
- Software Development Kit (SDK): Available for integration with third-party systems
Compliance:
- CE, FCC, RoHS
Technical Specifications
The Dahua DHI-ASI2212H-W Access Reader and Controller is a versatile device that combines the functions of an access reader and a controller in a single unit. With support for multiple authentication methods and built-in Wi-Fi connectivity, it provides convenient and secure access control. The device offers advanced features like anti-passback and duress alarm, along with easy management through web interface or mobile app. Its compact size, durable construction, and weatherproof rating make it suitable for both indoor and outdoor installations. The DHI-ASI2212H-W is an efficient and reliable solution for implementing secure access control systems.
Dahua DHI-ASI2212H-W Access Reader and Controller Features:
- TCP/IP and WiFi Communication
- Supports Auto and P2P Registration and DHCP
- Switch Between Reader and Controller Functions
- Supports Various User Credentials – Guest, Patrol, VIP, and others
- Touch Keypad and 2.4-in. LCD Display
- Supports 30,000 Users, 30,000 Cards, 30,000 passwords,
- 3000 Fingerprints, 50 Administrators, and 150,000 Records
- Recognizes a Fingerprint in Less Than One (1) Second
- Supports Card, Password, Fingerprint, and a combination of Credentials
- Door Time Out, Intrusion, Duress, Tamper, and other Alarms
- IP65 Ingress Protection
Dahua DHI-ASI2212H-W Access Reader and Controller Specifications:
General:
- Model: DHI-ASI2212H-W
- Communication Interface: RS485, Wiegand
- Authentication Methods: Card, Card + PIN, PIN
- Tamper Protection: Tamper switch for unauthorized removal
- Power Supply: 12V DC, PoE (IEEE 802.3af)
- Operating Temperature: -20°C to +55°C (-4°F to +131°F)
- Ingress Protection: IP65
- Dimensions: 125mm x 68mm x 20mm (4.92"" x 2.68"" x 0.79"")
- Weight: 160g (0.35 lbs)
Reader:
- Card Reading Frequency: 13.56MHz
- Reading Range: Up to 5cm (1.97 inches)
- Supported Card Types: MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1/EV2
Controller:
- Supported Doors: 2
- Input Ports: 2 x Exit Button, 2 x Door Contact
- Output Ports: 2 x Lock Relay, 2 x Alarm Output
- Relay Rating: 1A@30V DC
- Supported Functions: Anti-passback, Duress Alarm
Network:
- Network Interface: Wi-Fi (IEEE 802.11b/g/n)
- Supported Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP
- Wireless Transmission Range: Up to 50 meters (164 feet) in open areas
Management:
- Management Software: Smart PSS, Web Browser, Mobile App (DMSS)
- Configuration: Web-based configuration interface
- Event Log: Up to 10,000 records
- Software Development Kit (SDK): Available for integration with third-party systems
Compliance:
- CE, FCC, RoHS
