About the product

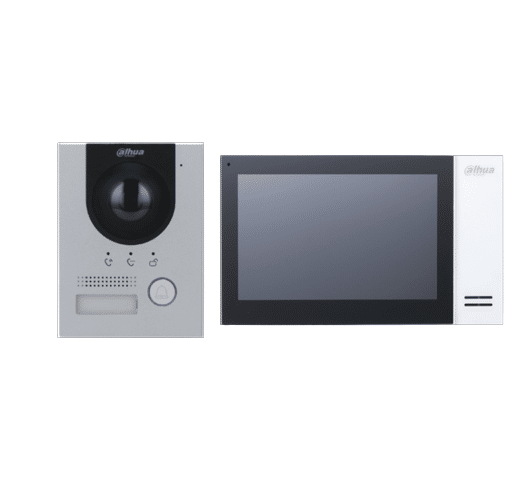

The DHI-KTP01(S) IP Video Intercom kit is a complete solution that includes an outdoor station with wide-angle camera, a color indoor monitor, and accessories to mount and power the components. The kit allows a tenant to view and talk with visitors and remotely unlock doors all from the indoor monitor. The IP outdoor station includes a 2 MP wide angle camera with two-way talk and is suitable for most outdoor applications. The kit is powered by PoE via the included 4-port PoE Ethernet switch, making installation easier, without the need to install additional dedicated power cables.
Dahua DHI-KTP01(S) IP Video Intercom Kit Features:
IP Outdoor Station
- 2 MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk and Group Call
- Aluminum Panel can be Surface- or Flush-mounted
- IP65 Ingress Protection and IK07 Vandal Resistance
- Power via PoE
IP Indoor Monitor
- 7-inch TFT Screen, 1024 x 600 Resolution
- Integrated 8 GB Micro SD Card
- Setup and Activate up to Six (6) Alarm Inputs
- Wall-mount Installation
- Power via PoE
4-port PoE Switch
- Layer 2 Unmanaged PoE Ethernet Switch
- Supports the PoE (IEEE802.3af), PoE+ (IEEE802.3at), and Hi-PoE Standards
Dahua DHI-KTP01(S) IP Video Intercom Kit Specification:
Indoor Unit:
- Model: DHI-VTO2111D-WP
- Mounting: Surface mount
- Button: Mechanical button
- Camera: 1.3MP CMOS camera
- Field of View: 120° wide-angle
- Night Vision: IR illumination up to 3 meters
- Audio: Built-in omni-directional microphone and speaker
- Network Interface: 10/100Mbps Ethernet
- Power Supply: 12V DC or PoE (IEEE 802.3af)
- Ingress Protection: IP65
- Dimensions: 132mm x 93mm x 34mm (5.2"" x 3.7"" x 1.3"")
- Weight: 250g (0.55 lbs)
Outdoor Unit:
- Model: DHI-VTH2421FW-P
- Display: 7"" TFT LCD capacitive touch screen
- Resolution: 800 x 480
- Network Interface: 10/100Mbps Ethernet
- Audio: Built-in microphone and speaker
- Power Supply: 12V DC or PoE (IEEE 802.3af)
- Ingress Protection: IP65
- Dimensions: 200mm x 140mm x 15mm (7.9"" x 5.5"" x 0.6"")
- Weight: 700g (1.54 lbs)
Network:
- Protocol: TCP/IP
- Supported Protocols: SIP, RTSP
- Network Interface: 10/100Mbps Ethernet
- Wireless Transmission: Wi-Fi (IEEE 802.11b/g/n)
Additional Features:
- Two-way Audio Communication
- Remote Unlocking Functionality
- Visitor Snapshot and Video Recording
- Message and Event Notification
- Integration with Mobile App (DMSS) and Management Software (Smart PSS)
Power Supply:
- Power Adapter: DC 12V, 1A
- Power over Ethernet (PoE): IEEE 802.3af
Compliance:
- CE, FCC, RoHS
Kit Components
- DHI-VTO2202F-P IP Outdoor Station
- DHI-VTH2421FW-P Indoor Monitor
- DH-PFS3005-4ET-60 PoE Switch
- VTM115 Surface-mount Box for DHI-VTO2202F-P
Technical Specifications
The DHI-KTP01(S) IP Video Intercom kit is a complete solution that includes an outdoor station with wide-angle camera, a color indoor monitor, and accessories to mount and power the components. The kit allows a tenant to view and talk with visitors and remotely unlock doors all from the indoor monitor. The IP outdoor station includes a 2 MP wide angle camera with two-way talk and is suitable for most outdoor applications. The kit is powered by PoE via the included 4-port PoE Ethernet switch, making installation easier, without the need to install additional dedicated power cables.
Dahua DHI-KTP01(S) IP Video Intercom Kit Features:
IP Outdoor Station
- 2 MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk and Group Call
- Aluminum Panel can be Surface- or Flush-mounted
- IP65 Ingress Protection and IK07 Vandal Resistance
- Power via PoE
IP Indoor Monitor
- 7-inch TFT Screen, 1024 x 600 Resolution
- Integrated 8 GB Micro SD Card
- Setup and Activate up to Six (6) Alarm Inputs
- Wall-mount Installation
- Power via PoE
4-port PoE Switch
- Layer 2 Unmanaged PoE Ethernet Switch
- Supports the PoE (IEEE802.3af), PoE+ (IEEE802.3at), and Hi-PoE Standards
Dahua DHI-KTP01(S) IP Video Intercom Kit Specification:
Indoor Unit:
- Model: DHI-VTO2111D-WP
- Mounting: Surface mount
- Button: Mechanical button
- Camera: 1.3MP CMOS camera
- Field of View: 120° wide-angle
- Night Vision: IR illumination up to 3 meters
- Audio: Built-in omni-directional microphone and speaker
- Network Interface: 10/100Mbps Ethernet
- Power Supply: 12V DC or PoE (IEEE 802.3af)
- Ingress Protection: IP65
- Dimensions: 132mm x 93mm x 34mm (5.2"" x 3.7"" x 1.3"")
- Weight: 250g (0.55 lbs)
Outdoor Unit:
- Model: DHI-VTH2421FW-P
- Display: 7"" TFT LCD capacitive touch screen
- Resolution: 800 x 480
- Network Interface: 10/100Mbps Ethernet
- Audio: Built-in microphone and speaker
- Power Supply: 12V DC or PoE (IEEE 802.3af)
- Ingress Protection: IP65
- Dimensions: 200mm x 140mm x 15mm (7.9"" x 5.5"" x 0.6"")
- Weight: 700g (1.54 lbs)
Network:
- Protocol: TCP/IP
- Supported Protocols: SIP, RTSP
- Network Interface: 10/100Mbps Ethernet
- Wireless Transmission: Wi-Fi (IEEE 802.11b/g/n)
Additional Features:
- Two-way Audio Communication
- Remote Unlocking Functionality
- Visitor Snapshot and Video Recording
- Message and Event Notification
- Integration with Mobile App (DMSS) and Management Software (Smart PSS)
Power Supply:
- Power Adapter: DC 12V, 1A
- Power over Ethernet (PoE): IEEE 802.3af
Compliance:
- CE, FCC, RoHS
Kit Components
- DHI-VTO2202F-P IP Outdoor Station
- DHI-VTH2421FW-P Indoor Monitor
- DH-PFS3005-4ET-60 PoE Switch
- VTM115 Surface-mount Box for DHI-VTO2202F-P
