About the product

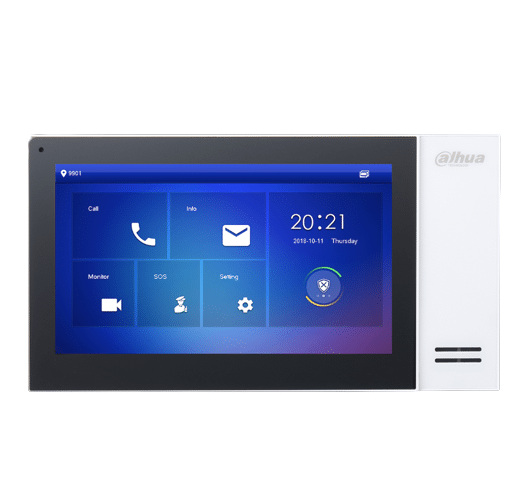

The DHI-VTH2421FW-P indoor monitor allows tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor. The DHI-VTH2421FW-P indoor monitor is used as part of a video intercom solution with compatible outdoor stations.
Dahua DHI-VTH2421FW-P IP Color Indoor Monitor Features:
- 7-inch TFT Screen
- 1024 x 600 Resolution
- Simplified Connection and Setup to Compatible Outdoor Stations
- Integrated Micro SD Card Slot, maximum 32 GB
- Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)
- Setup and Activate up to Six (6) Alarm Inputs
Dahua DHI-VTH2421FW-P IP Color Indoor Monitor Specifications:
Display:
- Display Type: 7"" TFT LCD capacitive touch screen
- Resolution: 800 x 480
- Aspect Ratio: 16:9
- Color Depth: 16.7 million colors
Video:
- Video Compression: H.264
- Video Resolution: Up to 1080p
- Video Interface: 1 x RJ45 Ethernet port
- Video Playback: Supports live view and playback of recorded videos
- Video Storage: Micro SD card slot (up to 32GB, not included)
Audio:
- Audio Compression: G.711A, G.711U
- Audio Interface: 1 x built-in microphone, 1 x built-in speaker
- Two-Way Audio: Support for audio communication between indoor monitor and other devices
Network:
- Network Protocol: TCP/IP, SIP
- Network Interface: 10/100Mbps Ethernet
- Wi-Fi: IEEE 802.11b/g/n (2.4GHz)
Intercom Functionality:
- Unlocking: Support for remotely unlocking connected door locks
- Call Transfer: Ability to transfer calls to other indoor monitors or devices
- Call Recording: Automatic recording of incoming calls
- Call Snapshot: Capture snapshots during intercom calls
Power:
- Power Supply: DC 12V, 1A (power adapter included)
- Power Consumption: ?6W
Environmental:
- Operating Temperature: -10°C to +55°C (14°F to 131°F)
- Operating Humidity: 10% to 90% RH
Physical:
- Dimensions (W x H x D): 200mm x 140mm x 15mm (7.9"" x 5.5"" x 0.6"")
- Weight: 700g (1.54 lbs)
- Mounting: Surface mount
Additional Features:
- OSD Menu: On-screen display menu for settings and configurations
- Alarm Integration: Support for alarm input and output connections
- PoE Support: Power over Ethernet (IEEE 802.3af)
- Compatibility: Compatible with Dahua VTO series outdoor units and other Dahua devices
- Compliance: CE, FCC, RoHS
Technical Specifications
The DHI-VTH2421FW-P indoor monitor allows tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor. The DHI-VTH2421FW-P indoor monitor is used as part of a video intercom solution with compatible outdoor stations.
Dahua DHI-VTH2421FW-P IP Color Indoor Monitor Features:
- 7-inch TFT Screen
- 1024 x 600 Resolution
- Simplified Connection and Setup to Compatible Outdoor Stations
- Integrated Micro SD Card Slot, maximum 32 GB
- Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)
- Setup and Activate up to Six (6) Alarm Inputs
Dahua DHI-VTH2421FW-P IP Color Indoor Monitor Specifications:
Display:
- Display Type: 7"" TFT LCD capacitive touch screen
- Resolution: 800 x 480
- Aspect Ratio: 16:9
- Color Depth: 16.7 million colors
Video:
- Video Compression: H.264
- Video Resolution: Up to 1080p
- Video Interface: 1 x RJ45 Ethernet port
- Video Playback: Supports live view and playback of recorded videos
- Video Storage: Micro SD card slot (up to 32GB, not included)
Audio:
- Audio Compression: G.711A, G.711U
- Audio Interface: 1 x built-in microphone, 1 x built-in speaker
- Two-Way Audio: Support for audio communication between indoor monitor and other devices
Network:
- Network Protocol: TCP/IP, SIP
- Network Interface: 10/100Mbps Ethernet
- Wi-Fi: IEEE 802.11b/g/n (2.4GHz)
Intercom Functionality:
- Unlocking: Support for remotely unlocking connected door locks
- Call Transfer: Ability to transfer calls to other indoor monitors or devices
- Call Recording: Automatic recording of incoming calls
- Call Snapshot: Capture snapshots during intercom calls
Power:
- Power Supply: DC 12V, 1A (power adapter included)
- Power Consumption: ?6W
Environmental:
- Operating Temperature: -10°C to +55°C (14°F to 131°F)
- Operating Humidity: 10% to 90% RH
Physical:
- Dimensions (W x H x D): 200mm x 140mm x 15mm (7.9"" x 5.5"" x 0.6"")
- Weight: 700g (1.54 lbs)
- Mounting: Surface mount
Additional Features:
- OSD Menu: On-screen display menu for settings and configurations
- Alarm Integration: Support for alarm input and output connections
- PoE Support: Power over Ethernet (IEEE 802.3af)
- Compatibility: Compatible with Dahua VTO series outdoor units and other Dahua devices
- Compliance: CE, FCC, RoHS
