About the product
Offering total system customisation, the Dahua Intercom Modular System is a comprehensive intercom solution. Starting with a 2 MP outdoor video intercom module, this intercom system provides two-way chat, a wide-angle view lens, and high-resolution photos even in low-light conditions. Add optional modules next that provide information text displays, call buttons, card readers and keypads for door entry, and status light indications. Additionally, the system includes alternative attachments to flush-mount or surface-mount an intercom system with two or three modules.

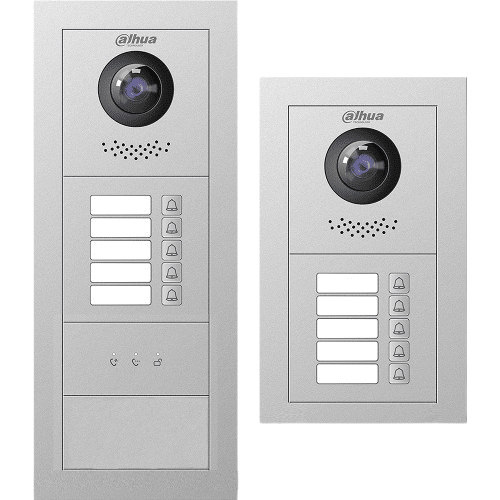

Dahua Intercom Modular Outdoor station, Five-call Buton Panel Features:
- 2MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk
- Records Call Sessions from the Indoor Monitor
- Access Control Supports Two Locks
- Performs Remote Door Unlock
- Compatible with Two-wire or RJ45 Connection
- Supports Secure Password Entry
- Anodized Aluminum Panel can be Surface- or Flush-mounted
- Fully Customizable System
- IP65 Ingress Protection and IK07 Vandal Resistance
Dahua Intercom Modular Outdoor station, Five-call Buton Panel Specifications:
- System
- Main Processor Embedded Processor
- Operating System Embedded Linux
- Video
- Image Sensor 1/2.5-in. 2 MP CMOS Sensor
- Lens 1.9 mm
- Angle of View
- Horizontal: 168.6°
- Vertical: 87.1°
- Diagonal: 176.7°
- Wide Dynamic Range 120 dB
- Noise Reduction 3D NR
- Compression H.265, H.264
- Resolution
- Main Stream: 720p at 30 fps
- Sub Stream: 1080p 30 fps
- Bit Rate 256 Kbps to 4 Mbps
- Day/Night Auto (ICR)
- Audio
- Compression G.711a, G.711u, PCM
- Input Omnidirectional Microphone
- Output Built-in Speaker
- Bi-directional Talk Support for Dual-way Bi-directional Talk
- Enhancement Echo Suppression, Digital Noise Reduction
- Bit Rate 16 KHz, 16 Bit
- Interface
- Ports One (1) Electric Lock One (1) Exit Button One (1) Door Status Detection One (1) Lock Control
- Alarm Output One (1) Channel
- Power Output 12 VDC, 100 mA
- Network
- Ethernet One (1) RJ45 10/100 Mbps Port
- Network Protocols SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
- Certifications
- Safety EN 62368-1:2014/A11:2017
- Electromagnetic Compatibility (EMC) CFR 4 7 FCC P art 15 subpart B EN 55032:201 5; EN 61000 3 2:2014 EN 61000 3 3:2013; EN 55024:2010/A1:2015; EN 55035:2017; EN 50130 4:2011/A1:2014
- Electrical
- Power
- DHI-VTNS2003B-2, Dahua Two-wire Switch (maximum power supply distance 50.0 m [164.04 ft])
- 48 VDC, 1 A
- PoE (IEEE802.3af Class 0)
- Power Consumption ? 12 W
- Power
- Environmental
- Operating Temperature –30° C to +60° C (–22° F to +140° F)
- Operating Humidity 10% to 95%, Relative (non-condensing)
- Operating Altitude 0 m to 3000.0 m (0 ft. to 9842.52 ft)
- Ingress Protection IP65
- Vandal Resistance IK07
- Construction
- Material Anodized Aluminum
- Color Silver
- Dimensions 100.0 mm x 100.0 mm x 36.0 mm (3.94 in. x 3.94 in. x 1.41 in.)
- Net Weight 0.35 kg (0.77 lb)
- Gross Weight 0.40 kg (0.88 lb)
- Installation Surface- or Flush-mount
Technical Specifications
Offering total system customisation, the Dahua Intercom Modular System is a comprehensive intercom solution. Starting with a 2 MP outdoor video intercom module, this intercom system provides two-way chat, a wide-angle view lens, and high-resolution photos even in low-light conditions. Add optional modules next that provide information text displays, call buttons, card readers and keypads for door entry, and status light indications. Additionally, the system includes alternative attachments to flush-mount or surface-mount an intercom system with two or three modules.
Dahua Intercom Modular Outdoor station, Five-call Buton Panel Features:
- 2MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk
- Records Call Sessions from the Indoor Monitor
- Access Control Supports Two Locks
- Performs Remote Door Unlock
- Compatible with Two-wire or RJ45 Connection
- Supports Secure Password Entry
- Anodized Aluminum Panel can be Surface- or Flush-mounted
- Fully Customizable System
- IP65 Ingress Protection and IK07 Vandal Resistance
Dahua Intercom Modular Outdoor station, Five-call Buton Panel Specifications:
- System
- Main Processor Embedded Processor
- Operating System Embedded Linux
- Video
- Image Sensor 1/2.5-in. 2 MP CMOS Sensor
- Lens 1.9 mm
- Angle of View
- Horizontal: 168.6°
- Vertical: 87.1°
- Diagonal: 176.7°
- Wide Dynamic Range 120 dB
- Noise Reduction 3D NR
- Compression H.265, H.264
- Resolution
- Main Stream: 720p at 30 fps
- Sub Stream: 1080p 30 fps
- Bit Rate 256 Kbps to 4 Mbps
- Day/Night Auto (ICR)
- Audio
- Compression G.711a, G.711u, PCM
- Input Omnidirectional Microphone
- Output Built-in Speaker
- Bi-directional Talk Support for Dual-way Bi-directional Talk
- Enhancement Echo Suppression, Digital Noise Reduction
- Bit Rate 16 KHz, 16 Bit
- Interface
- Ports One (1) Electric Lock One (1) Exit Button One (1) Door Status Detection One (1) Lock Control
- Alarm Output One (1) Channel
- Power Output 12 VDC, 100 mA
- Network
- Ethernet One (1) RJ45 10/100 Mbps Port
- Network Protocols SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
- Certifications
- Safety EN 62368-1:2014/A11:2017
- Electromagnetic Compatibility (EMC) CFR 4 7 FCC P art 15 subpart B EN 55032:201 5; EN 61000 3 2:2014 EN 61000 3 3:2013; EN 55024:2010/A1:2015; EN 55035:2017; EN 50130 4:2011/A1:2014
- Electrical
- Power
- DHI-VTNS2003B-2, Dahua Two-wire Switch (maximum power supply distance 50.0 m [164.04 ft])
- 48 VDC, 1 A
- PoE (IEEE802.3af Class 0)
- Power Consumption ? 12 W
- Power
- Environmental
- Operating Temperature –30° C to +60° C (–22° F to +140° F)
- Operating Humidity 10% to 95%, Relative (non-condensing)
- Operating Altitude 0 m to 3000.0 m (0 ft. to 9842.52 ft)
- Ingress Protection IP65
- Vandal Resistance IK07
- Construction
- Material Anodized Aluminum
- Color Silver
- Dimensions 100.0 mm x 100.0 mm x 36.0 mm (3.94 in. x 3.94 in. x 1.41 in.)
- Net Weight 0.35 kg (0.77 lb)
- Gross Weight 0.40 kg (0.88 lb)
- Installation Surface- or Flush-mount
